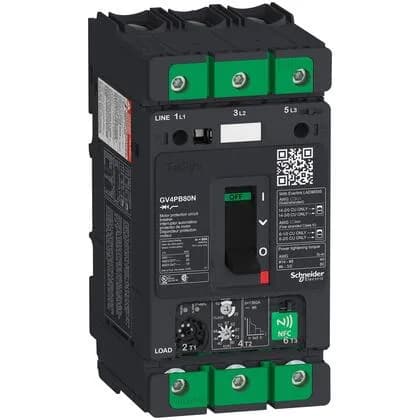

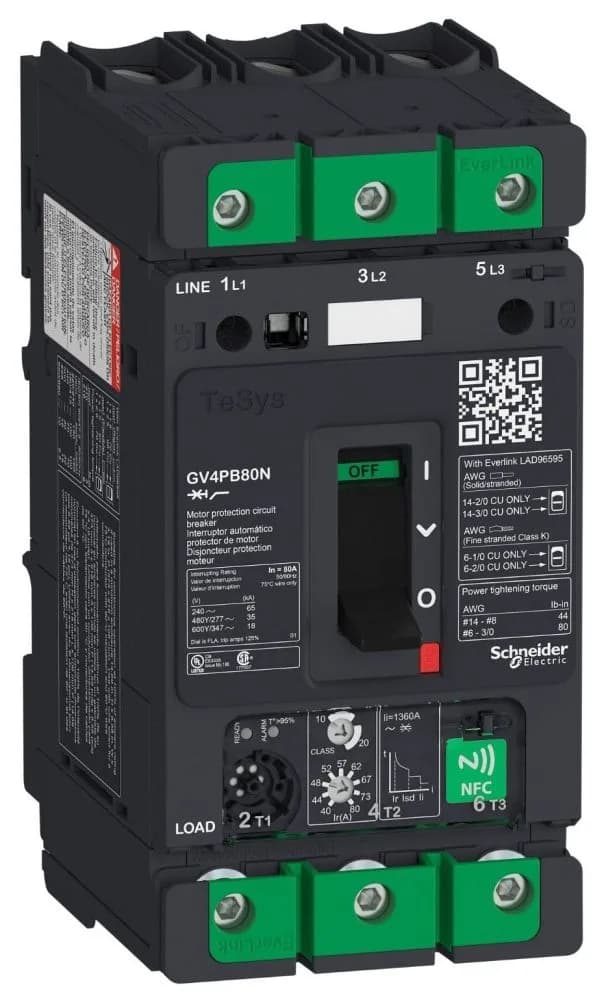

Schneider TeSys GV4PB80N Motor Circuit Breaker, 80 A, 3P

MPNGV4PB80N
Active

Schneider Electric TeSys Deca, motor circuit breaker, GV4PB80N, 80 A rated current, 3 poles, UL 489 / IEC 60947-2, gray RAL 7016.

$181.61Ref. price · indicative, final on quote
Schneider Electric GV4PB80N datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

GV4PB80N key specifications
ParameterValue
Control typeToggle
Range of productTeSys GV4
Product or component typeMotor circuit breaker
Climatic withstandIACS E10
Voltage800 V AC 50/60 Hz IEC 60947-2
[Ue] rated operational voltage690 V AC 50/60 Hz IEC 60947-2 600Y/347 V AC 60 Hz UL 489
[Uimp] rated impulse withstand voltage8 kV IEC 60947-2
Breaking capacity65 kA SCCR 240 V AC 60 Hz UL 489 35 kA SCCR 480Y/277 V AC 60 Hz UL 489 18 kA SCCR 600Y/347 V AC 60 Hz UL 489 100 kA Icu 220/240 V AC 50/60 Hz IEC 60947-2 50 kA Icu 380/415 V AC 50/60 Hz IEC 60947-2 50 kA Icu 440 V AC 50/60 Hz IEC 60947-2 25 kA Icu 500 V AC 50/60 Hz IEC 60947-2 15 kA Icu 525 V AC 50/60 Hz IEC 60947-2 8 kA Icu 660/690 V AC 50/60 Hz IEC 60947-2
Line rated current80 A
Magnetic tripping current1360 A
[Ith] conventional free air thermal current115 A IEC 60947-4-1
[Ics] rated service short-circuit breaking capacity100 % 220/240 V AC 50/60 Hz IEC 60947-2 100 % 380/415 V AC 50/60 Hz IEC 60947-2 100 % 440 V AC 50/60 Hz IEC 60947-2 100 % 500 V AC 50/60 Hz IEC 60947-2 100 % 525 V AC 50/60 Hz IEC 60947-2 25 % 660/690 V AC 50/60 Hz IEC 60947-2

All specifications

GV4PB80N additional specifications
ParameterValue
Power dissipation per pole4.6 W
Poles description3P
Phase failure sensitivityYes IEC 60947-4-1
Rated dutyContinuous IEC 60947-4-1
Utilisation categoryCategory A IEC 60947-2 AC-3 IEC 60947-4-1
IK degree of protectionIK07 IEC 62262
IP degree of protectionIP40 IEC 60529
Connections - terminalsEverLink BTR screw connectors top) 1 0.002...0.1 in² (1.5...70 mm²) - rigid EverLink BTR screw connectors top) 1 0.002...0.08 in² (1.5...50 mm²) - flexible EverLink BTR screw connectors bottom) 1 0.004...0.1 in² (2.5...95 mm²) - rigid EverLink BTR screw connectors bottom) 1 0.004...0.1 in² (2.5...70 mm²) - flexible
Pollution degree3
Operating altitude5000 m
ColorGray RAL 7016)
Depth4.6 in (116 mm)
Width3.2 in (81 mm)
Height6.7 in (171 mm)
Electrical durability14000 cycles AC-3 440 V In/2 7000 cycles AC-3 440 V In
Mechanical durability40000 cycles
StandardsEN/IEC 60947-1 EN/IEC 60947-2 EN/IEC 60947-4-1 UL 489 CSA C22.2 No 5
RangeTeSys Deca
CategoryUS10I1122365
Fire resistance1760 °F (960 °C) IEC 60695-2-11
Device short nameGV4PB
Tightening torque79.7 lbf.in (9 N.m) 0.02...0.1 in² (16...95 mm²) 44.3 lbf.in (5 N.m) 0.002...0.02 in² (1.5...10 mm²)
Device applicationMotor protection
Operating positionAny position
Trip unit technologyThermal-magnetic Electronic
Mechanical robustnessVibrations +/- 1 mm 2...13.2 Hz IEC 60068-2-6 Vibrations 0.7 gn 13.2...100 Hz IEC 60068-2-6 Shocks 15 gn 11 ms IEC 60068-2-27
Maximum operating rate25 cyc/h
Suitability for isolationYes IEC 60947-1
Ambient air temperature for storage-58...185 °F (-50...85 °C)
Ambient air temperature for operation-13...158 °F (-25...70 °C)

Product details

The GV4PB80N is a TeSys GV4 motor circuit breaker from Schneider Electric, rated 80 A in a 3-pole frame. It provides motor protection against overloads and short circuits via a thermal-magnetic trip unit with an electronic pickup — magnetic tripping set at 1360 A. The breaker carries UL 489 and IEC 60947-2/4-1 approvals, making it suitable for North American and IEC panel builds alike.

Breaking capacity is the headline spec here: 65 kA SCCR at 240 V AC (UL 489) and 100 kA Icu at 220/240 V (IEC 60947-2). The breaker is Category A (no intentional delay for selectivity on short-circuit), so it opens fast — coordination with upstream devices must be checked.

The enclosure is IP40 (finger-safe) and IK07 impact rated, with a gray RAL 7016 finish. It is isolation-suitable per IEC 60947-1, meaning it can serve as a disconnecting means. Phase failure sensitivity is built in, per IEC 60947-4-1. Terminals accept up to 95 mm² rigid on the bottom side, using the EverLink screw connector system.
