The GV4PB80S is a TeSys GV4 motor circuit breaker rated 80 A continuous for motor protection in AC-3 duty. Breaking capacity reaches 100 kA at 240 V UL and 120 kA Icu at 220/240 V IEC, covering high-fault panel installations without upstream fuses. Magnetic trip set at 1360 A provides instantaneous short-circuit protection for the motor branch. Phase failure sensitivity and suitability for isolation are included per IEC 60947-4-1. Mounts in any position, IP40 front, pollution degree 3. Standards compliance includes EN/IEC 60947-1, -2, -4-1, UL 489, and CSA C22.2 No 5.

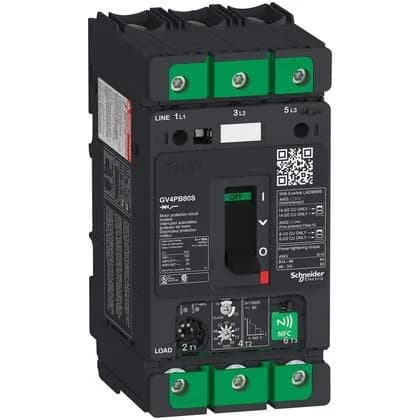

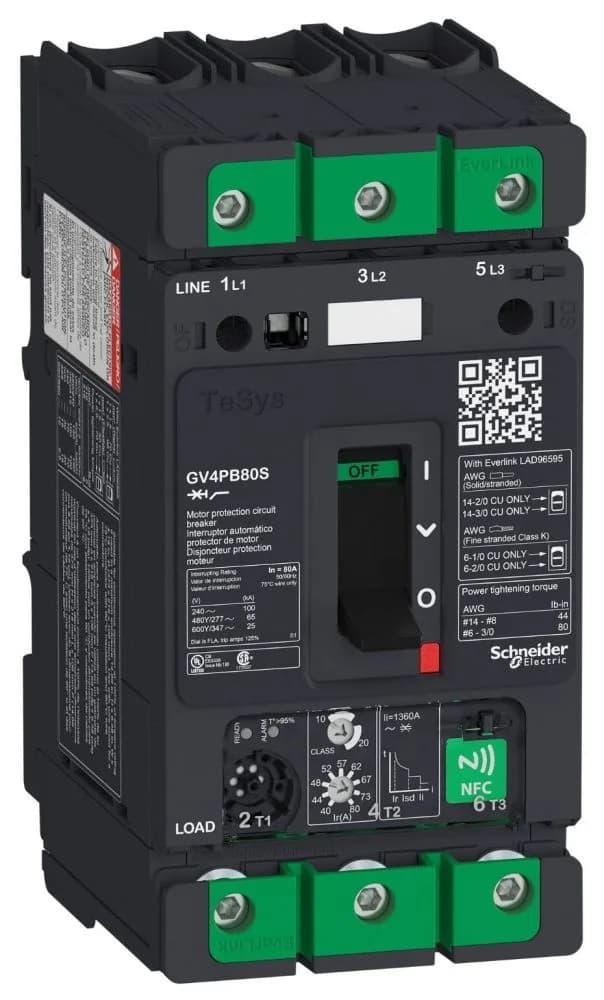

Schneider GV4PB80S TeSys GV4 Motor Circuit Breaker, 80 A
MPNGV4PB80S
Active
Schneider Electric TeSys GV4 series GV4PB80S motor circuit breaker, 3P, 80 A, thermal-magnetic electronic trip, 100 kA breaking capacity.
$374.65 – $705.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Control type | Toggle |
| Range of product | TeSys GV4 |
| Product or component type | Motor circuit breaker |
| Climatic withstand | IACS E10 |
| Voltage | 800 V AC 50/60 Hz IEC 60947-2 |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz IEC 60947-2 600Y/347 V AC 60 Hz UL 489 |
| [Uimp] rated impulse withstand voltage | 8 kV IEC 60947-2 |
| Breaking capacity | 100 kA SCCR 240 V AC 60 Hz UL 489 65 kA SCCR 480Y/277 V AC 60 Hz UL 489 25 kA SCCR 600Y/347 V AC 60 Hz UL 489 120 kA Icu 220/240 V AC 50/60 Hz IEC 60947-2 100 kA Icu 380/415 V AC 50/60 Hz IEC 60947-2 70 kA Icu 440 V AC 50/60 Hz IEC 60947-2 30 kA Icu 500 V AC 50/60 Hz IEC 60947-2 18 kA Icu 525 V AC 50/60 Hz IEC 60947-2 10 kA Icu 660/690 V AC 50/60 Hz IEC 60947-2 |
| Line rated current | 80 A |
| Magnetic tripping current | 1360 A |
| [Ith] conventional free air thermal current | 115 A IEC 60947-4-1 |
| [Ics] rated service short-circuit breaking capacity | 100 % 220/240 V AC 50/60 Hz IEC 60947-2 100 % 380/415 V AC 50/60 Hz IEC 60947-2 100 % 440 V AC 50/60 Hz IEC 60947-2 100 % 500 V AC 50/60 Hz IEC 60947-2 100 % 525 V AC 50/60 Hz IEC 60947-2 25 % 660/690 V AC 50/60 Hz IEC 60947-2 |
All specifications
| Parameter | Value |
|---|---|
| Power dissipation per pole | 4.6 W |
| Poles description | 3P |
| Phase failure sensitivity | Yes IEC 60947-4-1 |
| Rated duty | Continuous IEC 60947-4-1 |
| Utilisation category | Category A IEC 60947-2 AC-3 IEC 60947-4-1 |
| IK degree of protection | IK07 IEC 62262 |
| IP degree of protection | IP40 IEC 60529 |
| Connections - terminals | EverLink BTR screw connectors top) 1 0.002...0.1 in² (1.5...70 mm²) - rigid EverLink BTR screw connectors top) 1 0.002...0.08 in² (1.5...50 mm²) - flexible EverLink BTR screw connectors bottom) 1 0.004...0.1 in² (2.5...95 mm²) - rigid EverLink BTR screw connectors bottom) 1 0.004...0.1 in² (2.5...70 mm²) - flexible |
| Pollution degree | 3 |
| Operating altitude | 5000 m |
| Color | Gray RAL 7016) |
| Depth | 4.6 in (116 mm) |
| Width | 3.2 in (81 mm) |
| Height | 6.7 in (171 mm) |
| Electrical durability | 14000 cycles AC-3 440 V In/2 7000 cycles AC-3 440 V In |
| Mechanical durability | 40000 cycles |
| Standards | EN/IEC 60947-1 EN/IEC 60947-2 EN/IEC 60947-4-1 UL 489 CSA C22.2 No 5 |
| Range | TeSys Deca |
| Category | US10I1122365 |
| Fire resistance | 1760 °F (960 °C) IEC 60695-2-11 |
| Device short name | GV4PB |
| Tightening torque | 79.7 lbf.in (9 N.m) 0.02...0.1 in² (16...95 mm²) 44.3 lbf.in (5 N.m) 0.002...0.02 in² (1.5...10 mm²) |
| Device application | Motor protection |
| Operating position | Any position |
| Trip unit technology | Thermal-magnetic Electronic |
| Mechanical robustness | Vibrations +/- 1 mm 2...13.2 Hz IEC 60068-2-6 Vibrations 0.7 gn 13.2...100 Hz IEC 60068-2-6 Shocks 15 gn 11 ms IEC 60068-2-27 |
| Maximum operating rate | 25 cyc/h |
| Suitability for isolation | Yes IEC 60947-1 |
| Ambient air temperature for storage | -58...185 °F (-50...85 °C) |
| Ambient air temperature for operation | -13...158 °F (-25...70 °C) |
Product details
Frequently asked questions
What is the color of the GV4PB80S?
Gray RAL 7016).
What is the depth of the GV4PB80S?
4.6 in (116 mm).
What approvals does the GV4PB80S carry?
EN/IEC 60947-1, 60947-2, 60947-4-1, UL 489, CSA C22.2 No 5.
