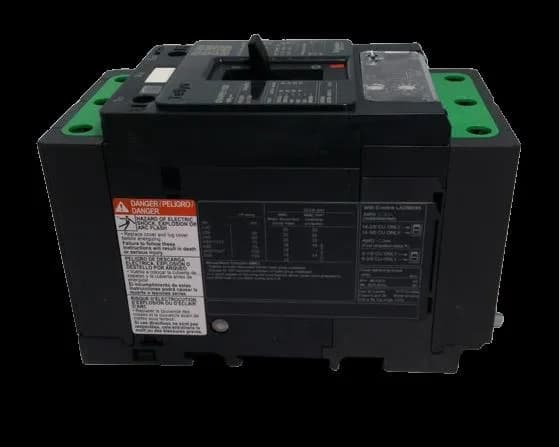

Schneider Electric GV4PE115B

Schneider GV4PE115B TeSys GV4 Motor Circuit Breaker, 115A

MPNGV4PE115B
Active

Schneider Electric TeSys GV4 series, GV4PE115B, 3-pole motor circuit breaker, 115 A, electronic thermal-magnetic trip, 50 kA Icu at 240 V AC.

$106.68Ref. price · indicative, final on quote
Schneider Electric GV4PE115B datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

GV4PE115B key specifications
ParameterValue
Control typeToggle
Range of productTeSys GV4
Product or component typeMotor circuit breaker
Climatic withstandIACS E10
Voltage800 V AC 50/60 Hz IEC 60947-2
[Ue] rated operational voltage690 V AC 50/60 Hz IEC 60947-2
[Uimp] rated impulse withstand voltage8 kV IEC 60947-2
Breaking capacity50 kA Icu 220...240 V AC 50/60 Hz IEC 60947-2 25 kA Icu 380...415 V AC 50/60 Hz IEC 60947-2 20 kA Icu 440 V AC 50/60 Hz IEC 60947-2 10 kA Icu 500 V AC 50/60 Hz IEC 60947-2 35 kA 208Y/120 V AC 50/60 Hz UL 60947 35 kA 240 V AC 50/60 Hz UL 60947 18 kA 480Y/277 V AC 50/60 Hz UL 60947 14 kA 600Y/347 V AC 50/60 Hz UL 60947
Line rated current115 A
Magnetic tripping current1955 A
[Ith] conventional free air thermal current115 A IEC 60947-4-1
Motor power37 kW 400...415 V AC 50/60 Hz 45 kW 400...415 V AC 50/60 Hz 55 kW 400...415 V AC 50/60 Hz 45 kW 500 V AC 50/60 Hz 55 kW 500 V AC 50/60 Hz 75 kW 500 V AC 50/60 Hz 75 kW 660...690 V AC 50/60 Hz 90 kW 660...690 V AC 50/60 Hz 110 kW 660...690 V AC 50/60 Hz

All specifications

GV4PE115B additional specifications
ParameterValue
Power dissipation per pole4.6 W
Poles description3P
Phase failure sensitivityYes IEC 60947-4-1
Rated dutyContinuous IEC 60947-4-1
Utilisation categoryCategory A IEC 60947-2 AC-3 IEC 60947-4-1
IK degree of protectionIK07 IEC 62262
IP degree of protectionIP40 IEC 60529
Connections - terminalsEverLink BTR screw connectors top) 1 0.002...0.1 in² (1.5...70 mm²) - solid EverLink BTR screw connectors top) 1 0.002...0.08 in² (1.5...50 mm²) - flexible EverLink BTR screw connectors bottom) 1 0.004...0.1 in² (2.5...95 mm²) - solid EverLink BTR screw connectors bottom) 1 0.004...0.1 in² (2.5...70 mm²) - flexible
Pollution degree3
Operating altitude5000 m
ColorGray RAL 7016)
Depth4.6 in (116 mm)
Width3.2 in (81 mm)
Height6.1 in (155 mm)
Electrical durability10000 cycles AC-3 440 V In/2 5000 cycles AC-3 440 V In
Mechanical durability40000 cycles
StandardsCSA C22.2 No 60947-4-1 UL 60947-4-1 EN/IEC 60947-4-1 EN/IEC 60947-2
RangeTeSys Deca
CategoryUS10I1122365
Fire resistance1760 °F (960 °C) IEC 60695-2-11
Device short nameGV4PE
Tightening torque79.7 lbf.in (9 N.m) 0.02...0.1 in² (16...95 mm²) 44.3 lbf.in (5 N.m) 0.002...0.02 in² (1.5...10 mm²)
Device applicationMotor protection
Operating positionAny position
Trip unit technologyElectronic Thermal-magnetic
Mechanical robustnessVibrations +/- 1 mm 2...13.2 Hz IEC 60068-2-6 Vibrations 0.7 gn 13.2...100 Hz IEC 60068-2-6 Shocks 15 gn 11 ms IEC 60068-2-27
Maximum operating rate25 cyc/h
Suitability for isolationYes IEC 60947-1
Ambient air temperature for storage-58...185 °F (-50...85 °C)
Ambient air temperature for operation-13...158 °F (-25...70 °C)

Product details

The GV4PE115B is a Schneider Electric TeSys GV4 motor circuit breaker rated for 115 A continuous current in AC-3 motor duty, with a magnetic trip threshold of 1955 A and a breaking capacity of 50 kA at 240 V AC per IEC 60947-2.

Ratings and selection

Rated for 115 A line current, this breaker covers motors up to 55 kW at 400 V or 90 kW at 660 V. The electronic thermal-magnetic trip provides adjustable overload and fixed magnetic protection. Magnetic pickup is set at 1955 A, which is 17x In, suited for starting high-inrush loads without nuisance tripping. Breaking capacity is graded by voltage: 50 kA at 240 V, 25 kA at 415 V, and 10 kA at 500 V AC per IEC 60947-2. The UL 60947 listing shows 35 kA at 240 V and 18 kA at 480Y/277 V. Operation classed as Category A (no intentional short-time delay) per IEC 60947-2, and AC-3 motor switching per IEC 60947-4-1. Electrical durability is 10,000 cycles at AC-3 at rated current, and 5,000 cycles at 2x In.

Compliance and physical

Listed to UL 60947-4-1 and CSA C22.2 No 60947-4-1, meeting EN/IEC 60947-4-1 and EN/IEC 60947-2. Fire resistance tested to 960 °C per IEC 60695-2-11. IP40 enclosure, IK07 mechanical impact. Operating altitude up to 5000 m, pollution degree 3. Dimensions: 6.1 in (155 mm) high, 3.2 in (81 mm) wide, 4.6 in (116 mm) deep. Color is gray RAL 7016. Connections use EverLink BTR screw terminals accepting solid or flexible conductors up to 95 mm².

Frequently asked questions

What is the listed color of the GV4PE115B?

The enclosure is gray, RAL 7016.

What is the depth of the GV4PE115B?

The depth is 4.6 inches (116 mm).

What compliance documentation does Schneider provide for the GV4PE115B?

It meets UL 60947-4-1, CSA C22.2 No 60947-4-1, EN/IEC 60947-4-1, and EN/IEC 60947-2. Fire resistance to IEC 60695-2-11 at 960 °C is also listed.
