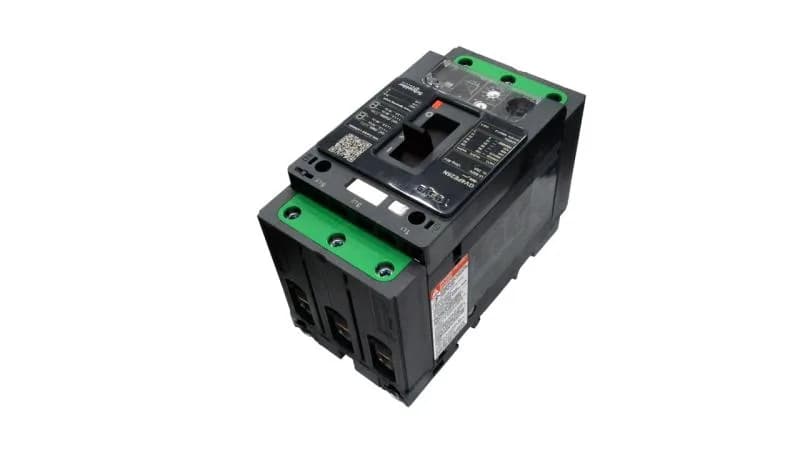

Schneider TeSys Deca Series GV4 motor circuit breaker, GV4PE25N, 25 A, 3-pole, electronic thermal-magnetic, Gray RAL 7016.
| Parameter | Value |
|---|---|
| Control type | Toggle |
| Range of product | TeSys GV4 |
| Product or component type | Motor circuit breaker |
| Climatic withstand | IACS E10 |
| Voltage | 800 V AC 50/60 Hz IEC 60947-2 |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 8 kV IEC 60947-2 |
| Breaking capacity | 100 kA Icu 220...240 V AC 50/60 Hz IEC 60947-2 50 kA Icu 380...415 V AC 50/60 Hz IEC 60947-2 50 kA Icu 440 V AC 50/60 Hz IEC 60947-2 15 kA Icu 525 V AC 50/60 Hz IEC 60947-2 65 kA 208Y/120 V AC 50/60 Hz UL 60947 65 kA 240 V AC 50/60 Hz UL 60947 35 kA 480Y/277 V AC 50/60 Hz UL 60947 8 kA Icu 660...690 V AC 50/60 Hz IEC 60947-2 25 kA Icu 500 V AC 50/60 Hz IEC 60947-2 18 kA 600Y/347 V AC 50/60 Hz UL 60947 |
| Line rated current | 25 A |
| Magnetic tripping current | 425 A |
| [Ith] conventional free air thermal current | 115 A IEC 60947-4-1 |
| Motor power | 7.5 kW 660...690 V AC 50/60 Hz 5.5 kW 400...415 V AC 50/60 Hz 7.5 kW 500 V AC 50/60 Hz 9 kW 660...690 V AC 50/60 Hz 11 kW 660...690 V AC 50/60 Hz 7.5 kW 400...415 V AC 50/60 Hz 9 kW 400...415 V AC 50/60 Hz 11 kW 400...415 V AC 50/60 Hz 9 kW 500 V AC 50/60 Hz 11 kW 500 V AC 50/60 Hz 15 kW 500 V AC 50/60 Hz 15 kW 660...690 V AC 50/60 Hz 18.5 kW 660...690 V AC 50/60 Hz |
| Parameter | Value |
|---|---|
| Power dissipation per pole | 4.6 W |
| Poles description | 3P |
| Phase failure sensitivity | Yes IEC 60947-4-1 |
| Rated duty | Continuous IEC 60947-4-1 |
| Utilisation category | Category A IEC 60947-2 AC-3 IEC 60947-4-1 |
| IK degree of protection | IK07 IEC 62262 |
| IP degree of protection | IP40 IEC 60529 |
| Connections - terminals | EverLink BTR screw connectors top) 1 0.002...0.1 in² (1.5...70 mm²) - solid EverLink BTR screw connectors top) 1 0.002...0.08 in² (1.5...50 mm²) - flexible EverLink BTR screw connectors bottom) 1 0.004...0.1 in² (2.5...95 mm²) - solid EverLink BTR screw connectors bottom) 1 0.004...0.1 in² (2.5...70 mm²) - flexible |
| Pollution degree | 3 |
| Operating altitude | 5000 m |
| Color | Gray RAL 7016) |
| Depth | 4.6 in (116 mm) |
| Width | 3.2 in (81 mm) |
| Height | 6.1 in (155 mm) |
| Electrical durability | 40000 cycles AC-3 440 V In/2 20000 cycles AC-3 440 V In |
| Mechanical durability | 40000 cycles |
| Standards | CSA C22.2 No 60947-4-1 UL 60947-4-1 EN/IEC 60947-4-1 EN/IEC 60947-2 |
| Range | TeSys Deca |
| Category | US10I1122365 |
| Fire resistance | 1760 °F (960 °C) IEC 60695-2-11 |
| Device short name | GV4PE |
| Tightening torque | 79.7 lbf.in (9 N.m) 0.02...0.1 in² (16...95 mm²) 44.3 lbf.in (5 N.m) 0.002...0.02 in² (1.5...10 mm²) |
| Device application | Motor protection |
| Operating position | Any position |
| Trip unit technology | Electronic Thermal-magnetic |
| Mechanical robustness | Vibrations +/- 1 mm 2...13.2 Hz IEC 60068-2-6 Vibrations 0.7 gn 13.2...100 Hz IEC 60068-2-6 Shocks 15 gn 11 ms IEC 60068-2-27 |
| Maximum operating rate | 25 cyc/h |
| Suitability for isolation | Yes IEC 60947-1 |
| Ambient air temperature for storage | -58...185 °F (-50...85 °C) |
| Ambient air temperature for operation | -13...158 °F (-25...70 °C) |
The GV4PE25N: Dimensions: 6.1 in tall, 3.2 in wide, 4.6 in deep. IP40 enclosure, IK07 impact resistance. Pollution degree 3 — fine for industrial floors with some dust. EverLink BTR screw terminals: top accepts up to 70 mm² solid or 50 mm² flex, bottom up to 95 mm² solid or 70 mm² flex. Tighten larger wires to 9 N·m, smaller to 5 N·m. Ships with a gray RAL 7016 housing — if your panel uses a specific colorcoding, that's the one.
The housing is Gray RAL 7016.
Depth is 4.6 in (116 mm).
It is listed to UL 60947-4-1, CSA C22.2 No 60947-4-1, EN/IEC 60947-4-1, and EN/IEC 60947-2.
