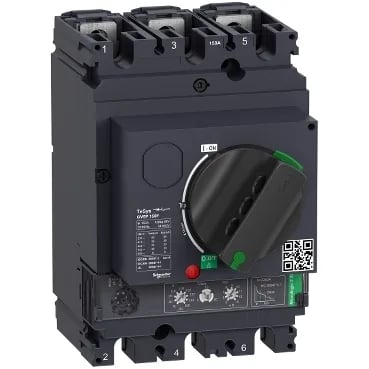

Schneider GV5P150F Molded Case Breaker
MPNGV5P150F
Active
GV5P150F - 3P by SQUARE D
$153.67Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Control type | Direct rotary handle |
| Range of product | TeSys GV5 |
| Product or component type | Motor circuit breaker |
| Climatic withstand | conforming to IACS E10 |
| Voltage | 800 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 8 kV |
| Breaking capacity | 36 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 30 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 8 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2 |
| Current | 150 A at 65 °C |
| Magnetic tripping current | 2250 A |
| [Ith] conventional free air thermal current | 150 A conforming to IEC 60947-4-1 |
| [Ics] rated service short-circuit breaking capacity | 100 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 500 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 660/690 V AC 50/60 Hz conforming to IEC 60947-2 |
All specifications
| Parameter | Value |
|---|---|
| Motor power | 55...75 kW at 400/415 V AC 50/60 Hz 75...90 kW at 500 V AC 50/60 Hz 90...110 kW at 660/690 V AC 50/60 Hz |
| Power dissipation per pole | 9.2 W |
| Poles description | 3P |
| Phase failure sensitivity | Yes conforming to IEC 60947-4-1 |
| Rated duty | Continuous |
| Utilisation category | Category A conforming to IEC 60947-2 |
| IK degree of protection | IK07 conforming to IEC 62262 |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Connection pitch | 35 mm without spreaders |
| Connections - terminals | Bars Lugs |
| Operating altitude | 5000 m |
| Depth | 155 mm |
| Width | 105 mm |
| Color | Anthracite (RAL 7016) |
| Height | 161 mm |
| Electrical durability | 20000 cycles for AC-3 at 400/415 V In |
| Mechanical durability | 40000 cycles |
| Standards | EN/IEC 60947-1 EN/IEC 60947-2 EN/IEC 60947-4-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 |
| Range | TeSys |
| Fire resistance | 960 °C conforming to IEC 60695-2-11 |
| Device short name | GV5P |
| Tightening torque | 15 N.m M8 screw type |
| Device application | Motor protection |
| Trip unit technology | Electronic |
| Mechanical robustness | Vibrations: +/- 1 mm 2...13.2 Hz conforming to IEC 60068-2-6 Vibrations: 0.7 gn 13.2...100 Hz conforming to IEC 60068-2-6 |
| Maximum operating rate | 25 cyc/h |
| Suitability for isolation | Yes conforming to EN/IEC 60947-2 |
| Ambient air temperature for storage | -50...85 °C |
| Ambient air temperature for operation | -25...70 °C |
MPN
GV5P150F
