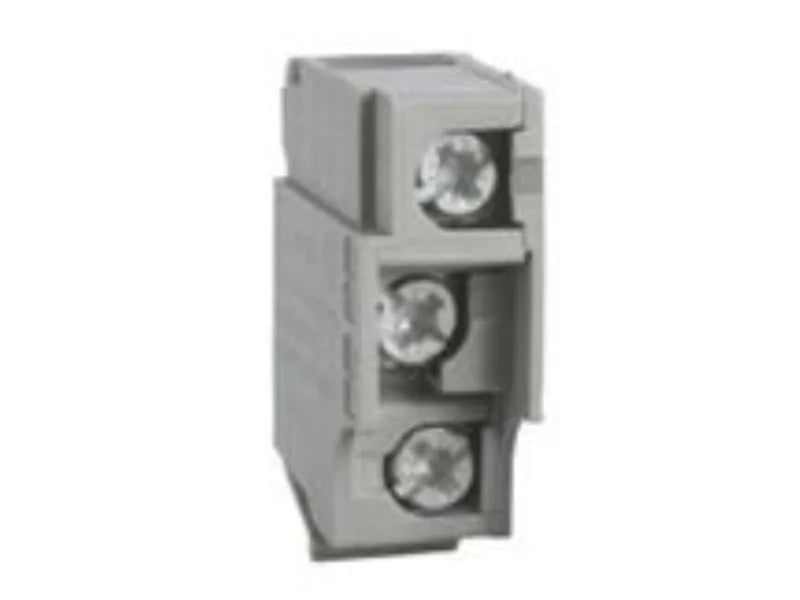

Schneider GV7AB11 Manual Starter Auxiliary
MPNGV7AB11
Obsolete
SQD GV7AB11 MANUAL STARTER AUX|SQD GV7AB11 MANUAL STARTER AUX CONTACTS 300VAC 1AMP
$36.83Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Protection type | GG fuse 10 A maximum GB2CB... circuit breaker 10 A maximum |
| Auxiliary contacts type | Low level contacts |
| Product or component type | Auxiliary contact block |
| Minimum switching voltage | 12 V |
| Voltage | 690 V IEC 60947-1 |
| [Ue] rated operational voltage | <= 110 V DC |
| Minimum switching current | 5 mA |
| [Ie] rated operational current | 5 A AC-12 Ue: 5 A AC-15 Ue: 4 A AC-15 Ue: 110...127 V IEC 60947-5-1 3 A AC-15 Ue: 230...240 V IEC 60947-5-1 2.5 A AC-15 Ue: 380...440 V IEC 60947-5-1 0.1 A AC-15 Ue: 660...690 V IEC 60947-5-1 2 A DC-12 Ue: 0.5 A DC-12 Ue: 110 V IEC 60947-5-1 0.5 A DC-14 Ue: 0.25 A DC-14 Ue: 48 V IEC 60947-5-1 0.1 A DC-14 Ue: 110 V IEC 60947-5-1 |
| [Ith] conventional free air thermal current | 6 A IEC 60947-5-1 |
| Mounting location | Inside the circuit breaker |
| Connections - terminals | screw clamps terminals 1 0.002 in² (1.5 mm²)flexible with cable end screw clamps terminals 1 0.002 in² (1.5 mm²)flexible without cable end screw clamps terminals 1 0.002 in² (1.5 mm²)rigid |
| Mechanical durability | 50000 cycles |
| Range | TeSys |
| Category | US10I1122366 |
| Device short name | GV7AB |
| Device application | Signalling |
| Auxiliary contacts operation | Instantaneous |
| Auxiliary contact composition | 1 C/O |
MPN
GV7AB11
