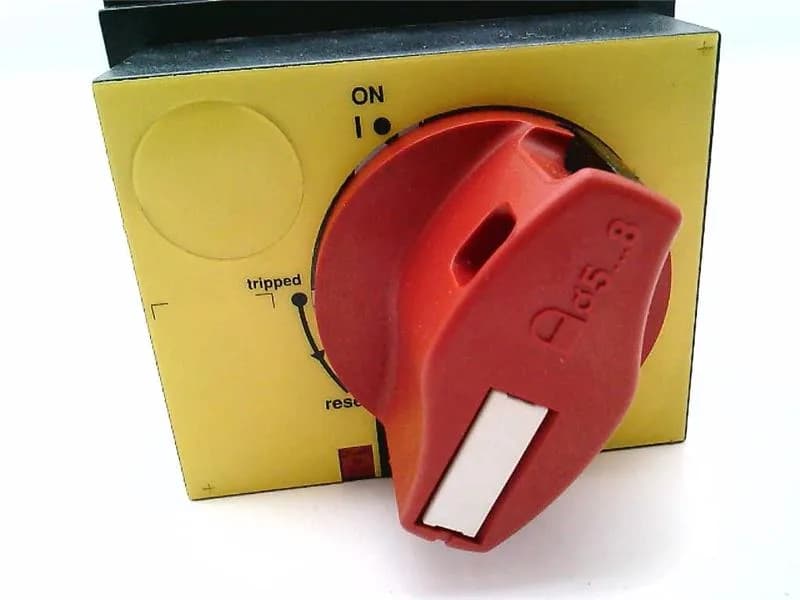

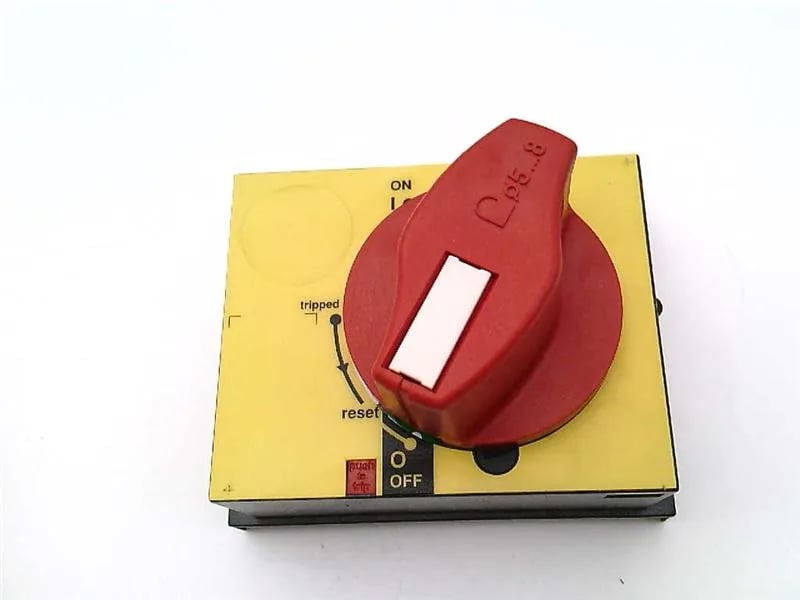

This is a direct front-mount rotary handle for TeSys manual starters and motor-protective breakers. It mounts on the front of the device and extends operation to a panel door or enclosure front without linkage. The red handle with a yellow front plate gives clear visual status. The handle accepts 1 to 3 padlocks (5 to 8 mm shackle) in the OFF position for lockout/tagout compliance.
Schneider GV7AP04 TeSys Rotary Handle, Red, IP40
MPNGV7AP04
Obsolete
Schneider TeSys rotary handle, red handle, IP40, direct front mount, GV7AP04.
$80.01 – $169.59Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Product or component type | Rotary handle |
| IP degree of protection | IP40 |
| Rotary handle mounting style | Direct |
| Rotary handle mounting location | Front |
| Handle colour | Red |
| Handle front plate colour | Yellow |
| Range | TeSys |
| Category | US10I1122366 |
| Device short name | GV7AP |
| Rotary handle padlocking | 1 to 3 padlocks 0.2...0.3 in (5...8 mm) Padlock in OFF position |
| Accessory (separate part category) | Control accessory |
Product details
Frequently asked questions
How do I source the GV7AP04 now?
Submit an RFQ for a quote on available surplus stock. Lead times and quantities are not guaranteed from factory channels.
MPN
GV7AP04
