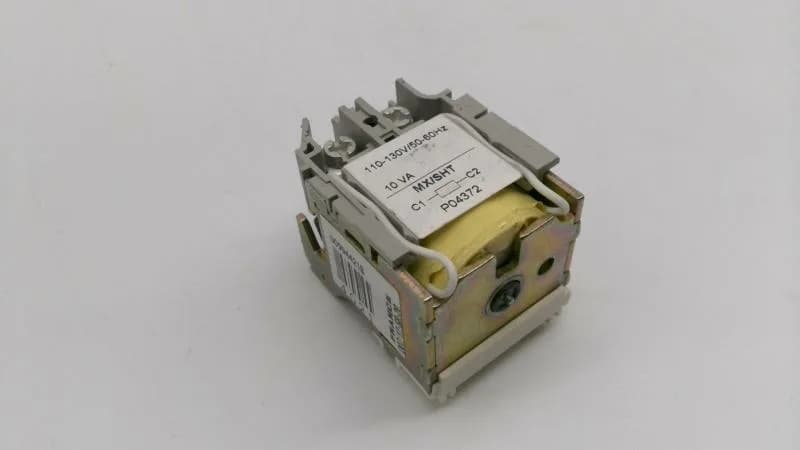

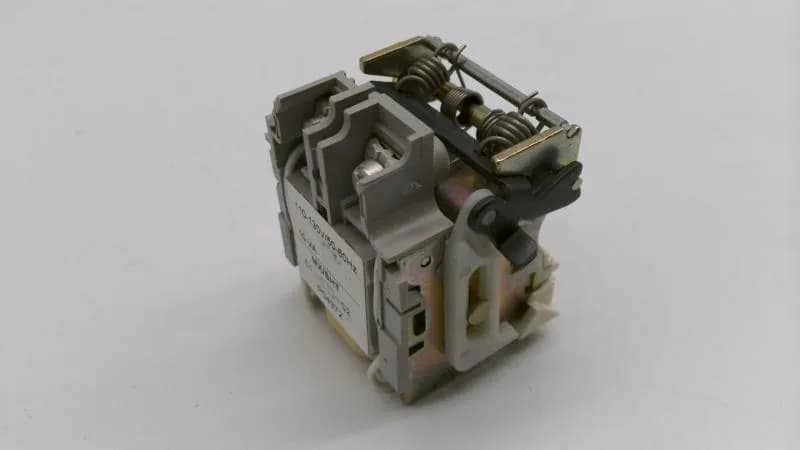

Schneider GV7AS107 Manual Starter Shunt Trip
MPNGV7AS107
Obsolete
MANUAL STARTER SHUNT TRIP 130VAC IEC|MANUAL STARTER SHUNT TRIP 130VAC IEC
$73.66Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Product or component type | Shunt trip |
| Threshold tripping voltage | 0.2...0.75 Ue |
| Coil voltage | 110...130 V AC 50/60 Hz |
| Voltage | 690 V AC IEC 60947-1 600 V AC UL 508 600 V AC CSA C22.2 No 14 |
| Control circuit voltage limits | 0.7...1.1 Un |
| Inrush power in | 10 VA AC |
| Hold-in power consumption in | 5 VA AC |
| Connections - terminals | screw clamp terminals 1 0.002 in² (1 mm²)flexible with cable end screw clamp terminals 1 0.002 in² (1.5 mm²)flexible without cable end screw clamp terminals 1 0.002 in² (1.5 mm²)solid |
| Range | TeSys |
| Category | US10I1122366 |
| On-load factor | 100 % |
| Operating time | < 50 ms IEC 60947-1 |
| Quantity per set | Set of 10 |
| Device short name | GV7AS |
| Tightening torque | 1.2 N.m screw clamp terminals |
| Device application | Control |
MPN
GV7AS107
