Schneider Electric GV7RE220

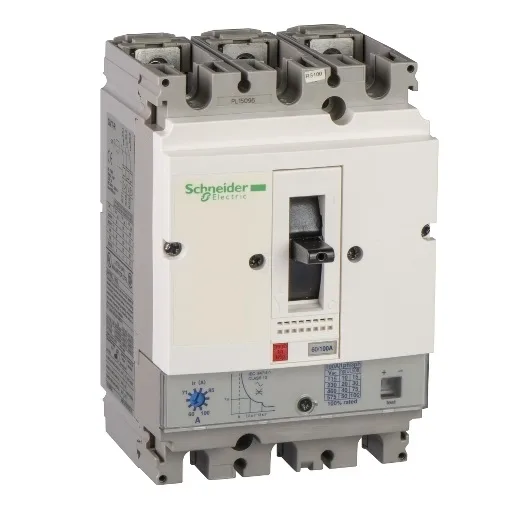

Schneider GV7RE220 TeSys GV7 motor circuit breaker, 220 A, 35 kA

MPNGV7RE220
Active

Schneider GV7RE220 Contactor & Starter Accessories & Parts — now discontinued. Supplied from remaining channel stock; full specifications, lifecycle and same-series options are below.

$1,441.65Ref. price · indicative, final on quote
Schneider Electric GV7RE220 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

GV7RE220 key specifications
ParameterValue
Control typeRocker lever
Network typeAC
Product or component typeCircuit breaker
Voltage750 V AC 50/60 Hz IEC 60947-2
[Ue] rated operational voltage690 V AC 50/60 Hz IEC 60947-2
[Uimp] rated impulse withstand voltage8 kV IEC 60947-2
Breaking capacity35 kA Icu 440 V AC 50/60 Hz IEC 60947-2 85 kA Icu 220/240 V AC 50/60 Hz IEC 60947-2 35 kA Icu 380/415 V AC 50/60 Hz IEC 60947-2 25 kA Icu 500 V AC 50/60 Hz IEC 60947-2 8 kA Icu 660/690 V AC 50/60 Hz IEC 60947-2
[Ith] conventional free air thermal current220 A IEC 60947-4-1
[Ics] rated service short-circuit breaking capacity100 % 440 V AC 50/60 Hz IEC 60947-2 100 % 220/240 V AC 50/60 Hz IEC 60947-2 100 % 380/415 V AC 50/60 Hz IEC 60947-2 50 % 500 V AC 50/60 Hz IEC 60947-2 50 % 660/690 V AC 50/60 Hz IEC 60947-2
Motor power110 kW 400...415 V AC 50/60 Hz 110 kW 500 V AC 50/60 Hz 132 kW 500 V AC 50/60 Hz 160 kW 500 V AC 50/60 Hz 160 kW 660...690 V AC 50/60 Hz 200 kW 660...690 V AC 50/60 Hz 90 kW 400...415 V AC 50/60 Hz
Power dissipation per pole14.5 W
Network frequency50/60 Hz IEC 60947-4-1

All specifications

GV7RE220 additional specifications
ParameterValue
Poles description3P
Phase failure sensitivityYes IEC 60947-4-1 § 7-2-1-5-2
Rated dutyContinuous IEC 60947-4-1
Utilisation categoryAC-3 IEC 60947-4-1
IP degree of protectionIP40 IEC 60529 with terminal shrouds)
Mounting modeBy screws By clips
Mounting supportPanel mounting Rail Kit for fixing the switchgear Flush
Mounting positionVertical
Connection pitch1.4 in (35 mm) without spreaders 1.8 in (45 mm) with spreaders
Connections - terminalsBars Cable with lug - external diameter: 0.4 in (10 mm) Screw Bare cable connectors 0.002...0.3 in² (1.5...185 mm²)
Pollution degree3
Operating altitude6561.68 ft (2000 m)
Depth5.0 in (126 mm)
Width4.1 in (105 mm)
Height6.3 in (161 mm)
Electrical durability10000 cycles AC-3 440 V In 20000 cycles AC-3 440 V In/2
Mechanical durability20000 cycles
StandardsVDE 0113 EN/IEC 60947-4-1 VDE 0660 EN/IEC 60947-1 NF C 63-120 EN/IEC 60947-2 NF C 79-130 NF C 63-650
RangeTeSys
CategoryUS10I1122366
Fire resistance1760 °F (960 °C) IEC 60695-2-1
Device short nameGV7R
Tightening torque88.5 lbf.in (10 N.m) screw M6 132.8 lbf.in (15 N.m) bare cable connectors 0.002...0.3 in² (1.5...185 mm²)
Device applicationMotor
Protective treatmentTC
Trip unit technologyThermal-magnetic
Mechanical robustnessShocks 15 Gn for 11 ms IEC 60068-2-27 Vibrations 2.5 Gn, 0...25 Hz IEC 60068-2-6
Maximum operating rate25 cyc/h
Suitability for isolationYes IEC 60947-1
Ambient air temperature for storage-67...203 °F (-55...95 °C)
Thermal protection adjustment range132...220 A
Ambient air temperature for operation-13...158 °F (-25...70 °C)

Product details

Overview

The GV7RE220 is a Schneider TeSys GV7 motor circuit breaker rated 690 V AC, 3-pole, with a switching current of 220 A and a breaking capacity ICU of 35.0 kA. It uses a thermal-magnetic trip unit and is rated for continuous duty per IEC 60947-4-1. The unit is in active production.

Schneider lists the GV7RE220 as an active product with no announced end-of-life. Compliance documentation includes certifications to DNV and UL, plus standards VDE 0113, EN/IEC 60947-4-1, EN/IEC 60947-1, EN/IEC 60947-2, and California Proposition 65. Mechanical life is rated at 20000 cycles. For current lead time and pricing, submit an RFQ.
