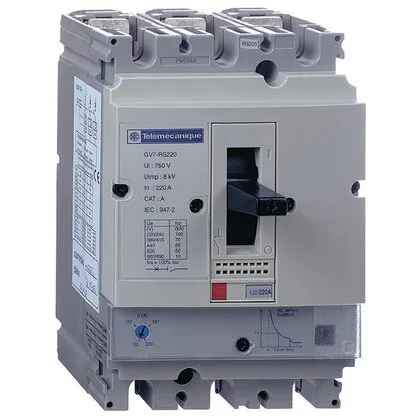

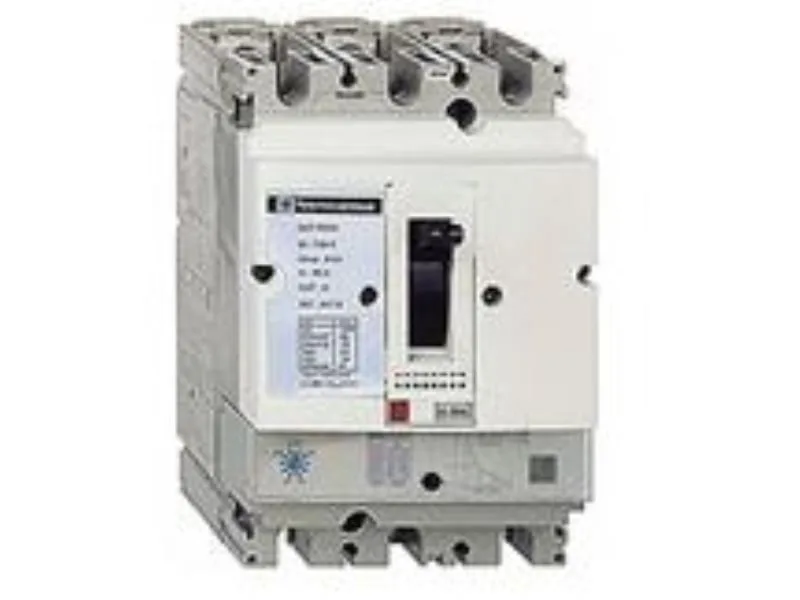

Schneider Electric GV7RS100
MPNGV7RS100
Obsolete
MANUAL STARTER 600VAC|SQD GV7RS100 MANUAL STARTER 600VAC
$2,114.42Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Control type | Rocker lever |
| Network type | AC |
| Product or component type | Circuit breaker |
| Voltage | 750 V AC 50/60 Hz IEC 60947-2 |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 8 kV IEC 60947-2 |
| Breaking capacity | 50 kA Icu 500 V AC 50/60 Hz IEC 60947-2 65 kA Icu 440 V AC 50/60 Hz IEC 60947-2 100 kA Icu 220/240 V AC 50/60 Hz IEC 60947-2 70 kA Icu 380/415 V AC 50/60 Hz IEC 60947-2 10 kA Icu 660/690 V AC 50/60 Hz IEC 60947-2 |
| [Ith] conventional free air thermal current | 100 A IEC 60947-4-1 |
| [Ics] rated service short-circuit breaking capacity | 100 % 440 V AC 50/60 Hz IEC 60947-2 100 % 500 V AC 50/60 Hz IEC 60947-2 100 % 220/240 V AC 50/60 Hz IEC 60947-2 100 % 380/415 V AC 50/60 Hz IEC 60947-2 100 % 660/690 V AC 50/60 Hz IEC 60947-2 |
| Motor power | 45 kW 400...415 V AC 50/60 Hz 75 kW 660...690 V AC 50/60 Hz |
| Power dissipation per pole | 5 W |
| Network frequency | 50/60 Hz IEC 60947-4-1 |
All specifications
| Parameter | Value |
|---|---|
| Poles description | 3P |
| Phase failure sensitivity | Yes IEC 60947-4-1 § 7-2-1-5-2 |
| Rated duty | Continuous IEC 60947-4-1 |
| Utilisation category | AC-3 IEC 60947-4-1 |
| IP degree of protection | IP40 IEC 60529 with terminal shrouds) |
| Mounting mode | By screws By clips |
| Mounting support | Kit for fixing the switchgear Rail Flush Panel mounting |
| Mounting position | Vertical |
| Connection pitch | 1.4 in (35 mm) without spreaders 1.8 in (45 mm) with spreaders |
| Connections - terminals | Bars Cable with lug - external diameter: 0.4 in (10 mm) Screw Bare cable connectors 0.002...0.1 in² (1.5...95 mm²) |
| Pollution degree | 3 |
| Operating altitude | 6561.68 ft (2000 m) |
| Depth | 4.4 in (111 mm) |
| Width | 4.1 in (105 mm) |
| Height | 6.3 in (161 mm) |
| Electrical durability | 30000 cycles AC-3 440 V In 50000 cycles AC-3 440 V In/2 |
| Mechanical durability | 50000 cycles |
| Standards | NF C 63-120 EN/IEC 60947-2 NF C 63-650 VDE 0113 EN/IEC 60947-1 VDE 0660 NF C 79-130 EN/IEC 60947-4-1 |
| Range | TeSys |
| Category | US10I1122366 |
| Fire resistance | 1760 °F (960 °C) IEC 60695-2-1 |
| Device short name | GV7R |
| Tightening torque | 88.5 lbf.in (10 N.m) screw M6 132.8 lbf.in (15 N.m) bare cable connectors 0.002...0.1 in² (1.5...95 mm²) |
| Device application | Motor |
| Protective treatment | TC |
| Trip unit technology | Thermal-magnetic |
| Mechanical robustness | Shocks 15 Gn for 11 ms IEC 60068-2-27 Vibrations 2.5 Gn, 0...25 Hz IEC 60068-2-6 |
| Maximum operating rate | 25 cyc/h |
| Suitability for isolation | Yes IEC 60947-1 |
| Ambient air temperature for storage | -67...203 °F (-55...95 °C) |
| Thermal protection adjustment range | 60...100 A |
| Ambient air temperature for operation | -13...158 °F (-25...70 °C) |
MPN
GV7RS100
