Schneider Electric GV7RS150

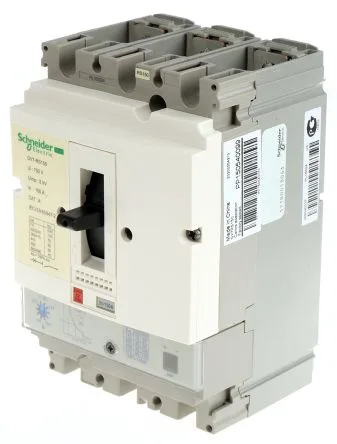

Schneider GV7RS150 TeSys GV7 MCCB, 3-pole, 150 A, 50 kA ICu

MPNGV7RS150
Active

Schneider GV7RS150 Molded Case Circuit Breakers — now discontinued. Supplied from remaining channel stock; full specifications, lifecycle and same-series options are below.

$1,450.47Ref. price · indicative, final on quote
Schneider Electric GV7RS150 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

GV7RS150 key specifications
ParameterValue
Control typeRocker lever
Network typeAC
Product or component typeCircuit breaker
Voltage750 V AC 50/60 Hz IEC 60947-2
[Ue] rated operational voltage690 V AC 50/60 Hz IEC 60947-2
[Uimp] rated impulse withstand voltage8 kV IEC 60947-2
Breaking capacity50 kA Icu 500 V AC 50/60 Hz IEC 60947-2 65 kA Icu 440 V AC 50/60 Hz IEC 60947-2 100 kA Icu 220/240 V AC 50/60 Hz IEC 60947-2 70 kA Icu 380/415 V AC 50/60 Hz IEC 60947-2 10 kA Icu 660/690 V AC 50/60 Hz IEC 60947-2
[Ith] conventional free air thermal current150 A IEC 60947-4-1
[Ics] rated service short-circuit breaking capacity100 % 440 V AC 50/60 Hz IEC 60947-2 100 % 500 V AC 50/60 Hz IEC 60947-2 100 % 220/240 V AC 50/60 Hz IEC 60947-2 100 % 380/415 V AC 50/60 Hz IEC 60947-2 100 % 660/690 V AC 50/60 Hz IEC 60947-2
Motor power110 kW 660...690 V AC 50/60 Hz 55 kW 400...415 V AC 50/60 Hz 75 kW 400...415 V AC 50/60 Hz 75 kW 500 V AC 50/60 Hz 90 kW 500 V AC 50/60 Hz 90 kW 660...690 V AC 50/60 Hz
Power dissipation per pole8.7 W
Network frequency50/60 Hz IEC 60947-4-1

All specifications

GV7RS150 additional specifications
ParameterValue
Poles description3P
Phase failure sensitivityYes IEC 60947-4-1 § 7-2-1-5-2
Rated dutyContinuous IEC 60947-4-1
Utilisation categoryAC-3 IEC 60947-4-1
IP degree of protectionIP40 IEC 60529 with terminal shrouds)
Mounting modeBy clips By screws
Mounting supportFlush Rail Panel mounting Kit for fixing the switchgear
Mounting positionVertical
Connection pitch1.4 in (35 mm) without spreaders 1.8 in (45 mm) with spreaders
Connections - terminalsBars Cable with lug - external diameter: 0.4 in (10 mm) Screw Bare cable connectors 0.002...0.1 in² (1.5...95 mm²)
Pollution degree3
Operating altitude6561.68 ft (2000 m)
Depth4.4 in (111 mm)
Width4.1 in (105 mm)
Height6.3 in (161 mm)
Electrical durability20000 cycles AC-3 440 V In 40000 cycles AC-3 440 V In/2
Mechanical durability40000 cycles
StandardsNF C 63-650 EN/IEC 60947-2 NF C 63-120 EN/IEC 60947-4-1 VDE 0113 NF C 79-130 VDE 0660 EN/IEC 60947-1
RangeTeSys
CategoryUS10I1122366
Fire resistance1760 °F (960 °C) IEC 60695-2-1
Device short nameGV7R
Tightening torque88.5 lbf.in (10 N.m) screw M6 132.8 lbf.in (15 N.m) bare cable connectors 0.002...0.1 in² (1.5...95 mm²)
Device applicationMotor
Protective treatmentTC
Trip unit technologyThermal-magnetic
Mechanical robustnessShocks 15 Gn for 11 ms IEC 60068-2-27 Vibrations 2.5 Gn, 0...25 Hz IEC 60068-2-6
Maximum operating rate25 cyc/h
Suitability for isolationYes IEC 60947-1
Ambient air temperature for storage-67...203 °F (-55...95 °C)
Thermal protection adjustment range90...150 A
Ambient air temperature for operation-13...158 °F (-25...70 °C)

Product details

Overview

The GV7RS150 is a Schneider TeSys GV7 molded case circuit breaker rated for 3-pole, 150 A switching current, with a 50 kA ICu breaking capacity at 690 V AC. It uses a thermal-magnetic trip unit and carries UL and DNV certifications. The part is active in Schneider's current catalog.

Compliance & certifications

The GV7RS150 is certified to UL and DNV, and complies with EN/IEC 60947-2, EN/IEC 60947-4-1, and EN/IEC 60947-1. It also carries California Proposition 65 compliance. The IP40 enclosure rating suits panel-mount installations where dust ingress is a concern.
