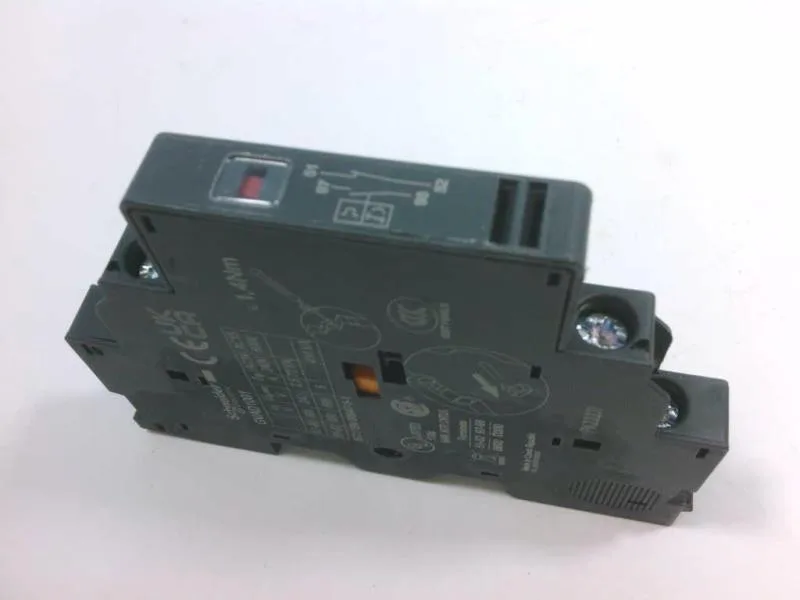

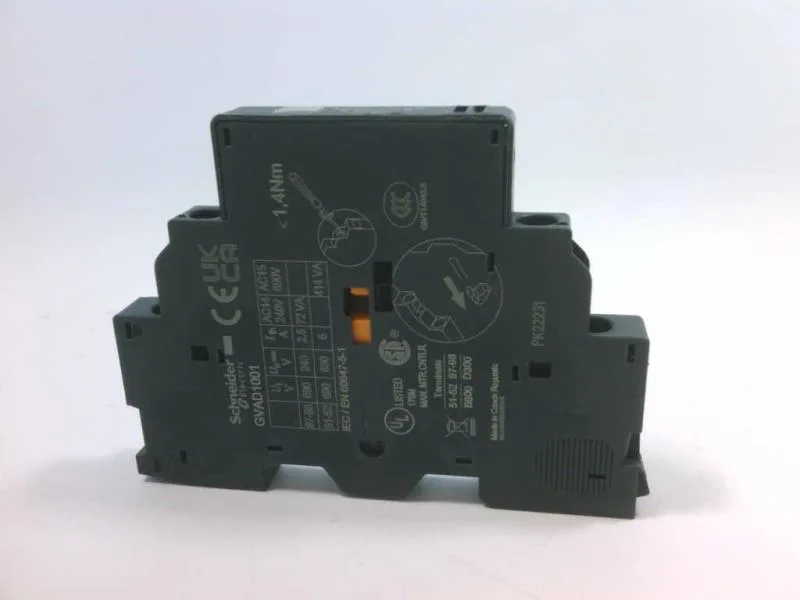

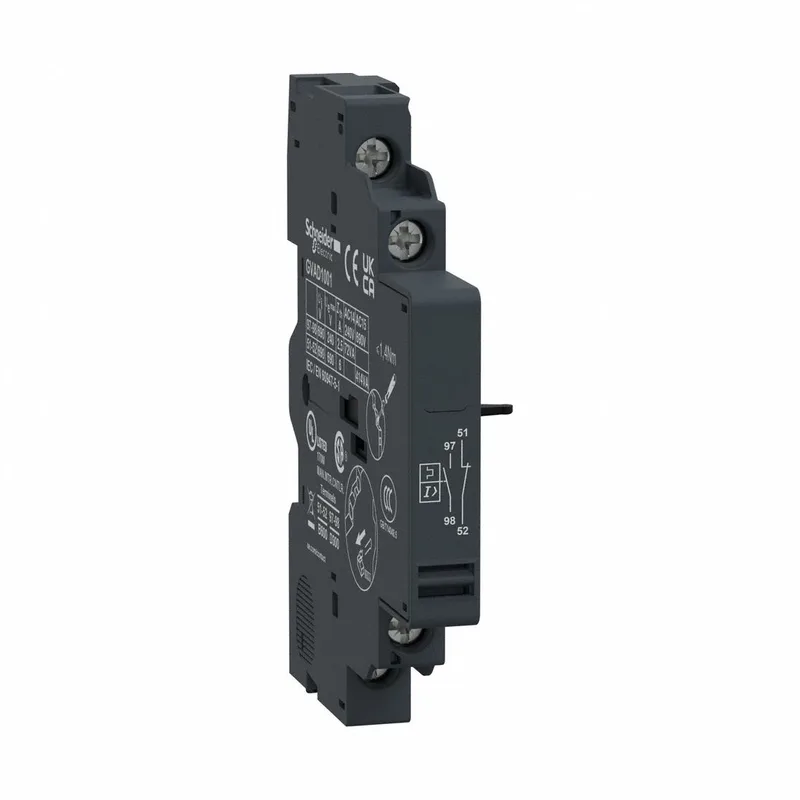

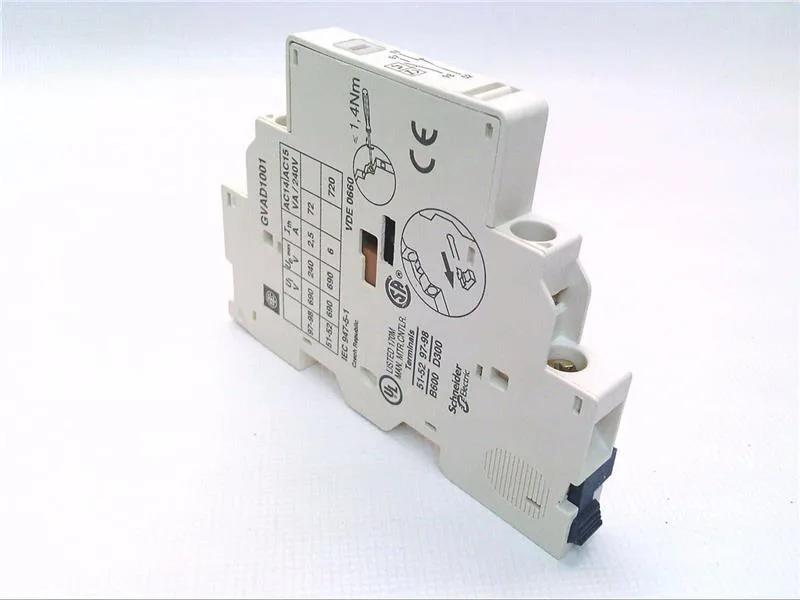

Schneider Electric GVAD1001
MPNGVAD1001
Active
MAN-STARTER FAULT|SQD GVAD1001 MAN-STARTER FAULT
$8.60Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Protection type | GB2CB... circuit breaker GG fuse 10 A |
| Product or component type | Auxiliary contact block |
| Minimum switching voltage | 17 V |
| Voltage | 690 V IEC 60947-1 300 V UL 508 300 V CSA C22.2 No 14 |
| [Ue] rated operational voltage | 48...690 V AC 24...240 V DC |
| Minimum switching current | 5 mA |
| [Ith] conventional free air thermal current | 6 A 2.5 A for fault signalling |
| Rated operational power in | 120 W 240 V DC-13 100000 cycles 140 W 110 V DC-13 100000 cycles 140 W 24 V DC-13 100000 cycles 180 W 60 V DC-13 100000 cycles 240 W 48 V DC-13 100000 cycles 15 W 48 V DC-13 1000 cycles 24 W 24 V DC-13 1000 cycles 9 W 60 V DC-13 1000 cycles |
| Pole contact composition | 1 NO + 1 NC |
| Mounting location | Left side |
| Color | Dark grey |
| Depth | 2.6 in (66 mm) |
All specifications
| Parameter | Value |
|---|---|
| Width | 0.4 in (9.3 mm) |
| Height | 3.5 in (89 mm) |
| Mechanical durability | 100000 cycles |
| Range | TeSys TeSys Deca |
| Category | US10I1122367 |
| Device short name | GVAD |
| Auxiliary contacts operation | Fault signal 1 NO |
| Environmental characteristic | Normal environment |
MPN
GVAD1001
