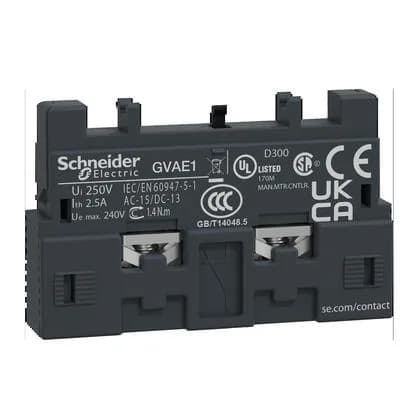

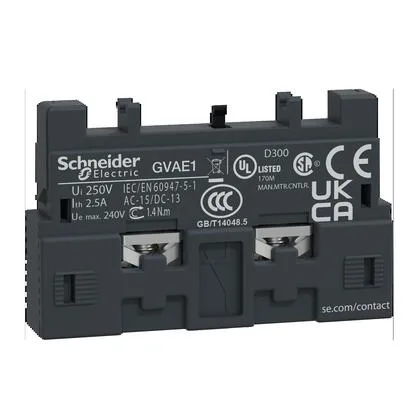

Schneider Electric GVAE1
MPNGVAE1
Active
Auxiliary Contact Block, 2.5A, 600VAC, Side Mount, 1NO or NC|Auxiliary Contact Block, 2.5 Amp, 600 Volt AC, 2 Pole, Front Mount, 1 Normally Open, or 1 Normally Closed, Contact, for GV2-3 Manual Starters, Sets of 10
$3.73Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Protection type | GG fuse 10 A GB2CB06 circuit breaker 10 A maximum |
| Product or component type | Auxiliary contact block |
| Minimum switching voltage | 17 V |
| Voltage | 300 V UL 508 300 V CSA C22.2 No 14 250 V IEC 60947-1 |
| [Ue] rated operational voltage | 24...240 V AC 24...60 V DC |
| Minimum switching current | 5 mA |
| [Ith] conventional free air thermal current | 2.5 A |
| Rated operational power in | 15 W 48 V DC-13 100000 cycles 24 W 24 V DC-13 100000 cycles 9 W 60 V DC-13 100000 cycles |
| Pole contact composition | 1 NO/NC |
| Mounting location | Front side |
| Color | Dark grey |
| Depth | 1.1 in (29 mm) |
All specifications
| Parameter | Value |
|---|---|
| Width | 1.8 in (45 mm) |
| Height | 0.4 in (11 mm) |
| Mechanical durability | 100000 cycles |
| Standards | EN/IEC 60947-5-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 IEC/EN 60335-1:Clause 30.2 IEC/EN 60335-2-40:Annex JJ |
| Range | TeSys TeSys Deca |
| Category | US10I1122367 |
| Quantity per set | Set of 10 |
| Device short name | GVAE |
| Tightening torque | 15.05 lbf.in (1.7 N.m) screw clamp terminals |
| Environmental characteristic | Normal environment |
MPN
GVAE1
