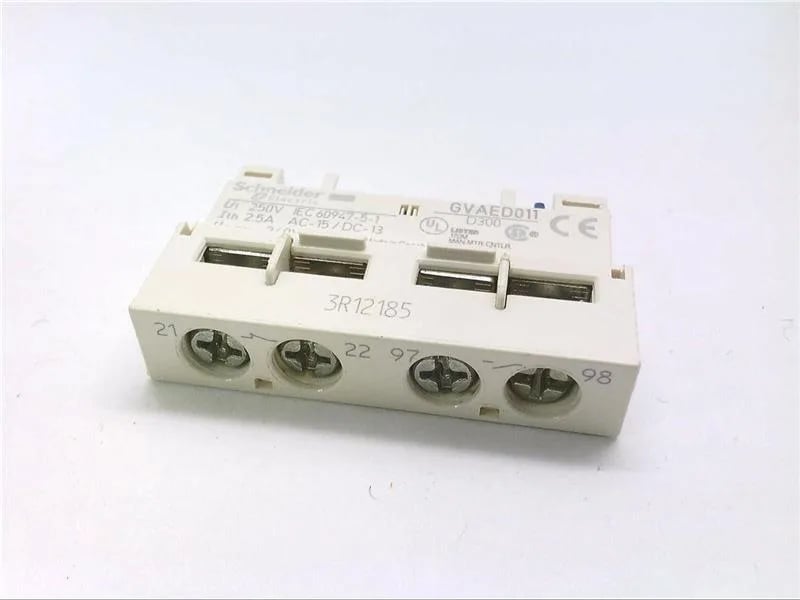

Schneider Electric GVAED011
MPNGVAED011
Active
GVAED011 - 2 CONTACTS by TELEMECANIQUE
$6.68Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Protection type | GB2CB... circuit breaker GG fuse 10 A |
| Product or component type | Auxiliary contact block |
| Minimum switching voltage | 17 V |
| Voltage | 600 V conforming to UL 508 690 V conforming to IEC 60947-1 600 V conforming to CSA C22.2 No 14 |
| [Ue] rated operational voltage | 24...240 V AC 24...60 V DC |
| Minimum switching current | 5 mA |
| [Ith] conventional free air thermal current | 2.5 A |
| Rated operational power in | 120 W at 240 V DC-13 - electrical durability: 100000 cycles 140 W at 110 V DC-13 - electrical durability: 100000 cycles 140 W at 24 V DC-13 - electrical durability: 100000 cycles 180 W at 60 V DC-13 - electrical durability: 100000 cycles 240 W at 48 V DC-13 - electrical durability: 100000 cycles |
| Pole contact composition | 1 NO + 1 NC |
| Mounting location | Front side |
| Depth | 29 mm |
| Width | 45 mm |
All specifications
| Parameter | Value |
|---|---|
| Color | Dark grey |
| Height | 11 mm |
| Mechanical durability | 100000 cycles |
| Standards | EN/IEC 60947-5-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 IEC/EN 60335-1:Clause 30.2 IEC/EN 60335-2-40:Annex JJ |
| Range | TeSys TeSys Deca |
| Quantity per set | Set of 1 |
| Device short name | GVAED |
| Tightening torque | 1.7 N.m screw clamp terminals |
| Auxiliary contacts operation | Fault signal 1 NO |
| Environmental characteristic | Normal environment |
MPN
GVAED011
