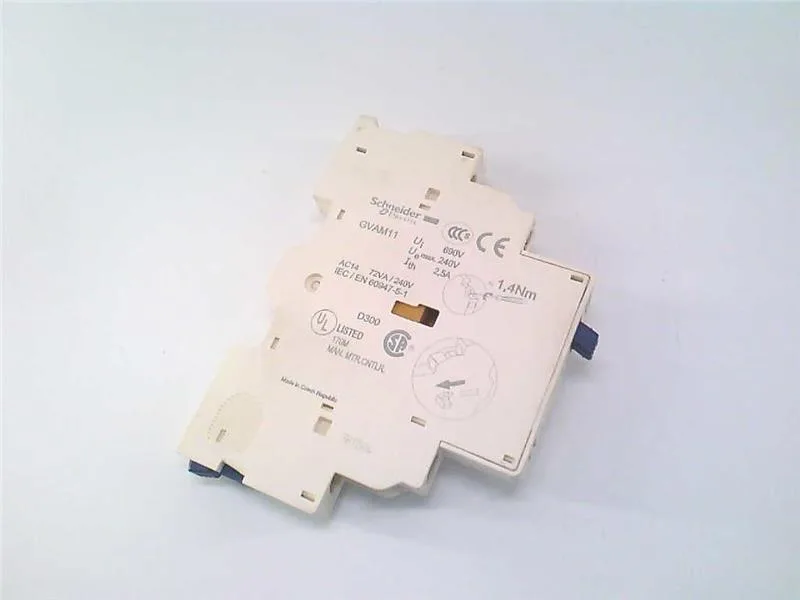

Schneider Electric GVAM11
MPNGVAM11
Active
Auxiliary Contact Block, 2.5A, 600VAC, Side, Short Circuit Signaling|Auxiliary Contact Block, 2.5 Amp, 600 Volt AC, 1 Pole Double Throw, Left Side Mount, Short Circuit Signaling Contact, for GV2-3 Manual Starters
$10.16Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Protection type | GB2CB... circuit breaker GG fuse 10 A |
| Product or component type | Auxiliary contact block |
| Minimum switching voltage | 17 V |
| Voltage | 690 V IEC 60947-1 300 V UL 508 300 V CSA C22.2 No 14 |
| [Ue] rated operational voltage | 24...240 V AC 24...60 V DC |
| Minimum switching current | 5 mA |
| [Ith] conventional free air thermal current | 2.5 A for fault signalling |
| Rated operational power in | 120 W 240 V DC-13 100000 cycles 140 W 110 V DC-13 100000 cycles 140 W 24 V DC-13 100000 cycles 180 W 60 V DC-13 100000 cycles 240 W 48 V DC-13 100000 cycles 15 W 48 V DC-13 1000 cycles 24 W 24 V DC-13 1000 cycles 9 W 60 V DC-13 1000 cycles |
| Pole contact composition | 1 C/O |
| Mounting location | Left side |
| Color | Dark grey |
| Depth | 2.6 in (66 mm) |
All specifications
| Parameter | Value |
|---|---|
| Width | 0.4 in (9.3 mm) |
| Height | 3.5 in (89 mm) |
| Mechanical durability | 100000 cycles |
| Range | TeSys TeSys Deca |
| Category | US10I1122367 |
| Device short name | GVAM |
| Auxiliary contacts operation | Short-circuit signal 1 C/O |
| Environmental characteristic | Normal environment |
MPN
GVAM11
