GVAX225
MPNGVAX225
Obsolete

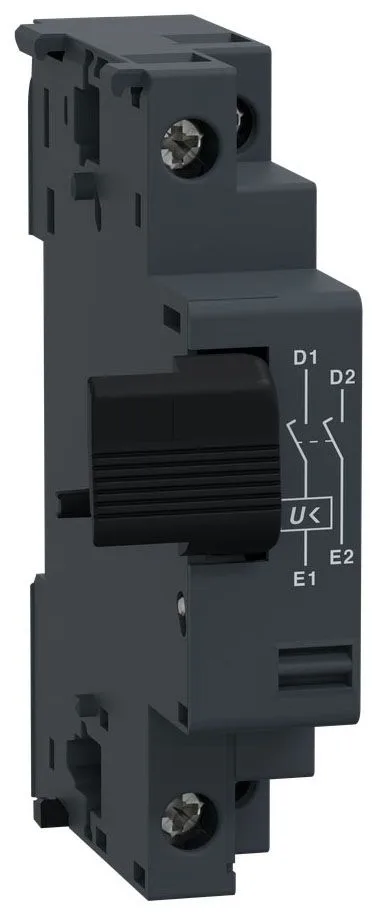

Square D GVAX225 Undervoltage Trip|Square D GVAX225 Undervoltage Trip
$21.59Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Product or component type | Safety undervoltage trip |
| Threshold tripping voltage | 0.7...0.35 Un |
| Coil voltage | 220...240 V AC 50 Hz |
| Voltage | 690 V AC IEC 60947-1 600 V AC UL 60947-4-1 600 V AC CSA C22.2 No 60947-4-1 |
| Control circuit voltage limits | 0.85...1.1 Un |
| Inrush power in | 12 VA AC |
| Hold-in power consumption in | 3.5 VA AC |
| Connections - terminals | screw clamp terminals 1 0.002...0.004 in² (1...2.5 mm²)solid screw clamp terminals 2 0.002...0.004 in² (1...2.5 mm²)solid screw clamp terminals 1 0.001...0.004 in² (0.75...2.5 mm²)flexible without cable end screw clamp terminals 2 0.001...0.004 in² (0.75...2.5 mm²)flexible without cable end screw clamp terminals 1 0.001...0.002 in² (0.75...1.5 mm²)flexible with cable end screw clamp terminals 2 0.001...0.002 in² (0.75...1.5 mm²)flexible with cable end |
| Color | Dark grey |
| Depth | 2.6 in (66 mm) |
| Width | 0.7 in (18 mm) |
| Height | 3.5 in (89 mm) |
All specifications
| Parameter | Value |
|---|---|
| Mechanical durability | 30000 cycles |
| Range | TeSys TeSys Deca |
| Category | US10I1122367 |
| On-load factor | 100 % |
| Operating time | 10...15 ms IEC 60947-1 |
| Quantity per set | Set of 10 |
| Device short name | GVAX |
| Tightening torque | < 1.4 N.m screw clamp terminals |
MPN
GVAX225
