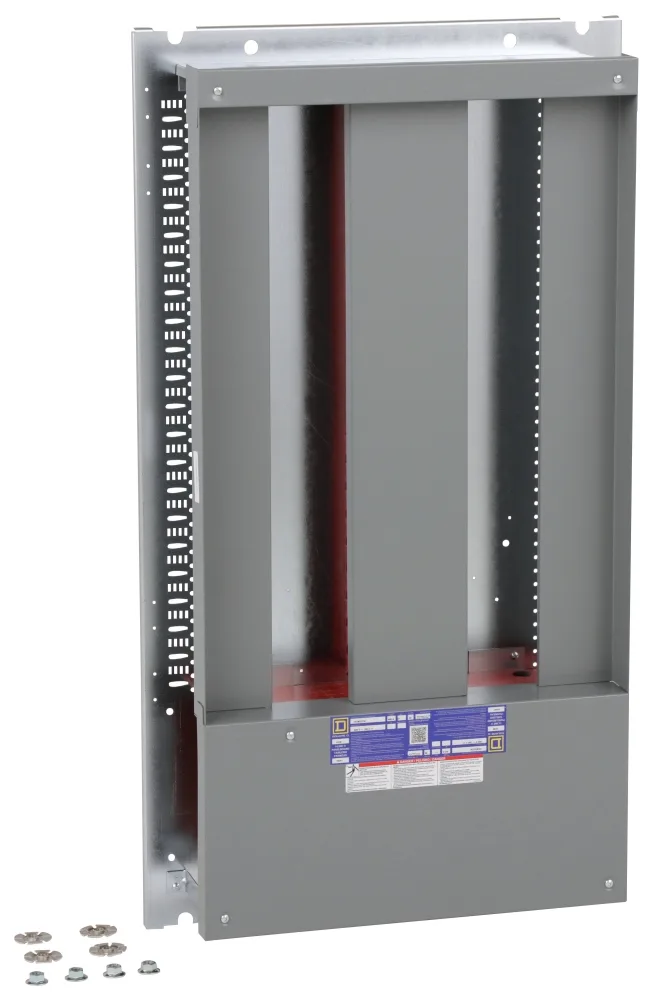

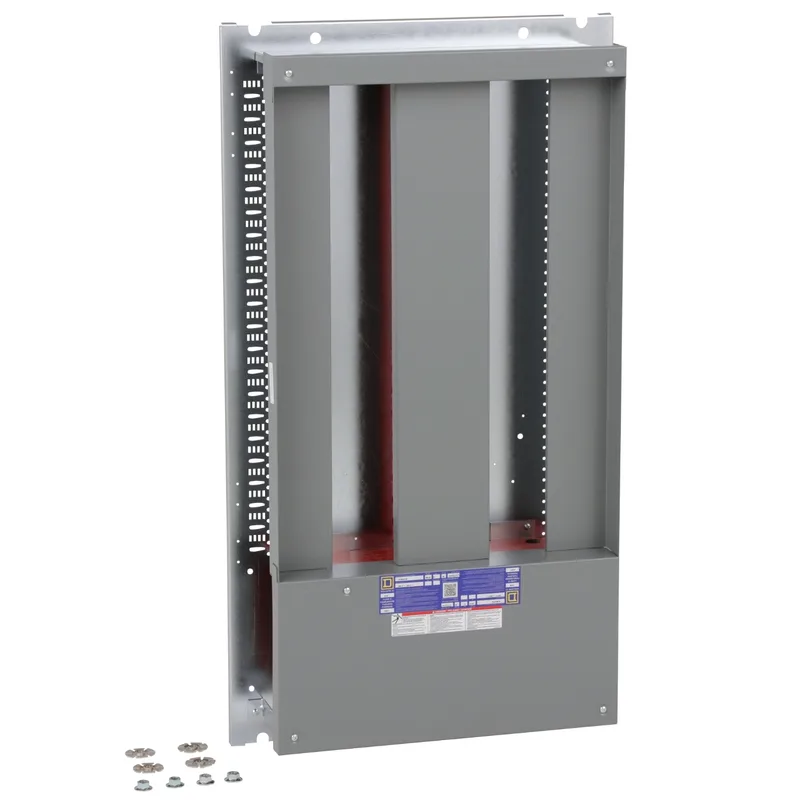

Schneider HCJ32734CU Panelboard Interior 400A 3-Phase
MPNHCJ32734CU
Active
Panel Board, Interior, MLO, 400A, 63" Space, 48"H x 26.5" W x 8.7" D|Panel Board, Interior, Main Lug Only, 3-Phase, 400 Amp, 63 Inch Space, 48 inch Height x 26.5 Inch Width x 8.7 Inch Depth, Copper Bus
$2,940.00 – $3,504.68Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Main type | Main lugs |
| Enclosure type | Distribution enclosure |
| Circuit breaker type | B-Frame J-frame H-frame Q-Frame QO |
| Product or component type | Interiors |
| Current | 400 A |
| Phases | 3 phase |
| Enclosure material | Painted steel |
| Mounting space | 63 in (1600.2 mm) |
| Depth | 8.7 in (221.0 mm) |
| Width | 26.44 in (671.58 mm) |
| Height | 48.02 in (1219.71 mm) |
| Bus material | Copper: busbar |
| Standards | cULus |
| Range | I-Line |
| Category | US1PE1A00016 |
| Tightening torque | 251.98 lbf.in (28.47 N.m) 0.02...0.2 in² (13.3...151 mm²) (AWG 6...300 kcmil) |
| Product destination | Enclosure HCJ 32 in (812.8 mm) 73 in (1854.2 mm) 9.5 in (241.3 mm) |
| Localization on device | Interior |
MPN
HCJ32734CU
