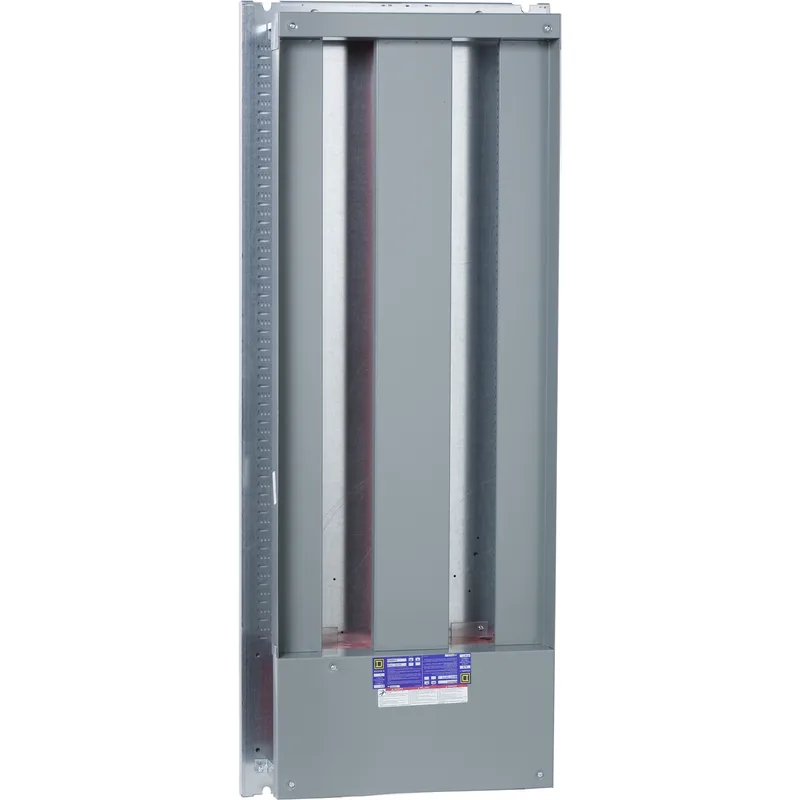

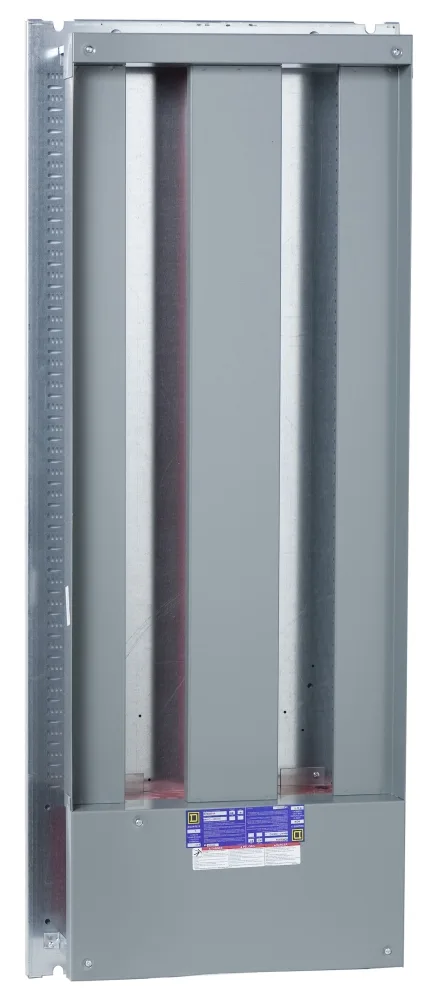

Schneider HCJ50914 I-Line Panelboard Interior 400A MLO
MPNHCJ50914
Active
PNLBD INTERIOR I-LINE 400A MLO 3PH|PNLBD INTERIOR I-LINE 400A MLO 3PH
$3,100.00 – $4,331.09Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Main type | Main lugs |
| Enclosure type | Distribution enclosure |
| Circuit breaker type | B-Frame J-frame H-frame Q-Frame QO |
| Product or component type | Interiors |
| Current | 400 A |
| Phases | 3 phase |
| Enclosure material | Painted steel |
| Mounting space | 99 in (2514.6 mm) |
| Depth | 8.75 in (222.25 mm) |
| Width | 26.45 in (671.83 mm) |
| Height | 66.03 in (1677.16 mm) |
| Bus material | Aluminium: busbar |
| Standards | cULus |
| Range | I-Line |
| Category | US1PE1A00016 |
| Tightening torque | 251.98 lbf.in (28.47 N.m) 0.02...0.2 in² (13.3...151 mm²) (AWG 6...300 kcmil) |
| Product destination | Enclosure HCJ 32 in (812.8 mm) 91 in (2311.4 mm) 9.5 in (241.3 mm) |
| Localization on device | Interior |
MPN
HCJ50914
