Schneider Electric HL1IMA12C
MPNHL1IMA12C
Active

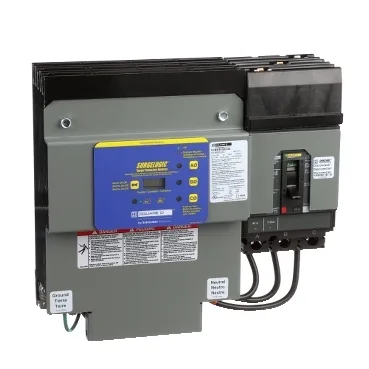

Surge protection device, Surgelogic, HL, 120kA, 120/240 VAC, 1 phase, 3 wire, SPD type 2
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Type | HL |
| Voltage rating | 120/240 V AC |
| Current | 60 A |
| Surge current | 120 kA |
| Breaking capacity | 50 kA |
| Max number of poles | 3 |
| Phases | 1 phase |
| IP rating | NEMA 2 |
| Enclosure material | Gray painted sheet steel |
| Mounting support | Panel mounting |
| Connection | I-Line line Lugs ground AWG 6 copper 35.4 lbf.in (4 N.m) Lugs neutral AWG 6 copper 35.4 lbf.in (4 N.m) |
| Cable length | 19.02 in (483 mm) |
All specifications
| Parameter | Value |
|---|---|
| Depth | 5.6 in (142.1 mm) |
| Width | 13.5 in (341.9 mm) |
| Height | 12.2 in (308.9 mm) |
| Standards | UL 1449:ed. 3 UL 1283:ed. 5 CSA C22.2 No 8:1986 UL 96A:ed. 12 UL 489:ed. 11 CSA C22.2 No 5-09 |
| MCOV | 150 V |
| SCCR | 200 kA |
| Range | Surgelogic |
| Product | Surge protection device |
| Category | US1DE1B08460 |
| Local signalling | Status LED green per phase normal operation Status LED red per phase fault |
| Device short name | IMA |
| Provided equipment | Alarm enable/disable switch Surge counter Circuit-breaker |
| Trip unit technology | Thermal-magnetic |
| Wiring configuration | 3-wire |
MPN
HL1IMA12C
