Schneider Electric HMIBMU0I29D400A
MPNHMIBMU0I29D400A
Obsolete

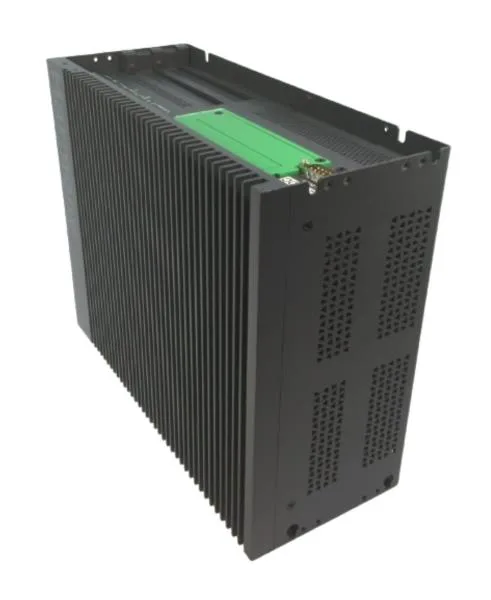

HMIBMU0I29D400A - MODULAR BOX PC by SQUARE D
$4,800.60Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Main type | Universal |
| Chipset type | Intel QM87 |
| Control type | ON/OFF button |
| Type of cooling | Fanless Fan required to mount PCI/PCIe cards above 3 W |
| Range of product | Harmony iPC |
| Product or component type | Modular box PC |
| Supply voltage limits | 18...36 V |
| Supply voltage | 24 V DC power supply 100...240 V AC power supply |
| Inrush current | 8.9 A |
| Mounting location | Book mounting Wall mounting Flat mounting |
| Electrical connection | Screw connector, connector type: pin, 1 way, circuit application: ground - location: bottom Connector, connector type: SMA, 3 ways - location: top |
| Operating altitude | 6561.68 ft (2000 m) IEC 60664-1 |
All specifications
| Parameter | Value |
|---|---|
| Width | 10 in (254 mm) |
| Height | 8.1 in (207 mm) |
| Impregnation material | Conformal coated |
| Standards | Class A group 1 EN 55011 EN 61000-6-4 EN 61131-2 FCC part 15 UL 61010 |
| Category | US10MC322575 |
| Directives | 2006/95/EC - low voltage directive 2004/108/EC - electromagnetic compatibility |
| Free slots | 2 Internal SATA HDD/SSD with slide-in HMIYMADSDD1 to mount hot swap RAID with Intel Rapid Storage Technology 1 CFast 1 mSATA |
| Quality labels | CE |
| Watchdog timer | 1...255 ms |
| Number of slots | 1 slot(s) for PCI 1 slot(s) for PCI express 4x 2 slot(s) for mini PCI Express full-size |
| Software package | Node-RED and system nodes restore IIoT Wiring Operating System Restore McAfee white listing installer cyber security license not included EcoStruxture secure connect advisor annual subscription cyber security license not included EcoStruxure Operator Terminal Expert run time HMI license not included EcoStruxure machine SCADA expert run time HMI/SCADA on configured offer only EcoStruxure augmented operator advisor server augmented operator license not included |
| Device short name | Modular BOX PC Universal |
| Display resolution | 3200 x 2000 pixels at 60 Hz |
| Memory description | 8 GB RAM DDR3 internal not expandable) 512 KB MRAM internal |
| Accessory (separate part destination) | PC panel HMIDM modular display |
| Ambient air temperature for operation | 32...131 °F (0...55 °C) by default) EN/IEC 60068-2-2 32...122 °F (0...50 °C) flat mounting 32...113 °F (0...45 °C)PCI/PCIe HMIDM modular display with HDD 32...104 °F (0...40 °C) flat mountingHDD 32...104 °F (0...40 °C) flat mountingmini PCIe 32...104 °F (0...40 °C) flat mountingPCI/PCIe 32...113 °F (0...45 °C) 2mini PCIe HMIDM modular display |
| Number of slots available for expansion | 2 mini PCIe 1 PCI 1 PCI express 4x |
MPN
HMIBMU0I29D400A
