Overview

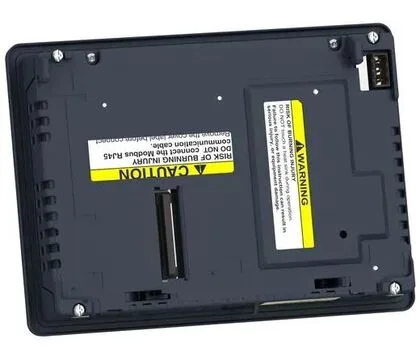

The HMIDT351 is a Schneider Harmony GTU advanced touchscreen panel with a 7-inch color TFT LCD display at 1024x1024 resolution and 262144 colors, driven by a single-touch analogue resistive touch layer. It runs on 24 VDC, draws 6.5 W, and is sealed to IP66 with a NEMA 4X front panel, making it suitable for washdown and indoor industrial environments. The unit carries UL 508, CSA C22.2 No. 142/213, and ANSI/ISA 12-12-01 Class I Division 2 certifications, allowing installation in hazardous locations.
Comparison with HMIDT542
The HMIDT351 lacks the USB 2.0 interfaces found on the HMIDT542, so if your application requires direct USB connectivity for data logging or peripheral connection, the HMIDT542 is the correct choice.
The HMIDT351 is an active catalog product; no obsolescence notice is recorded. Quoted lead time is confirmed via RFQ for the exact build code. Compliance documentation includes UL 508, CSA C22.2 No. 142/213, ANSI/ISA 12-12-01 Class I Division 2, and California Proposition 65. The shock rating is 147 m/s² per IEC 61131-2.
