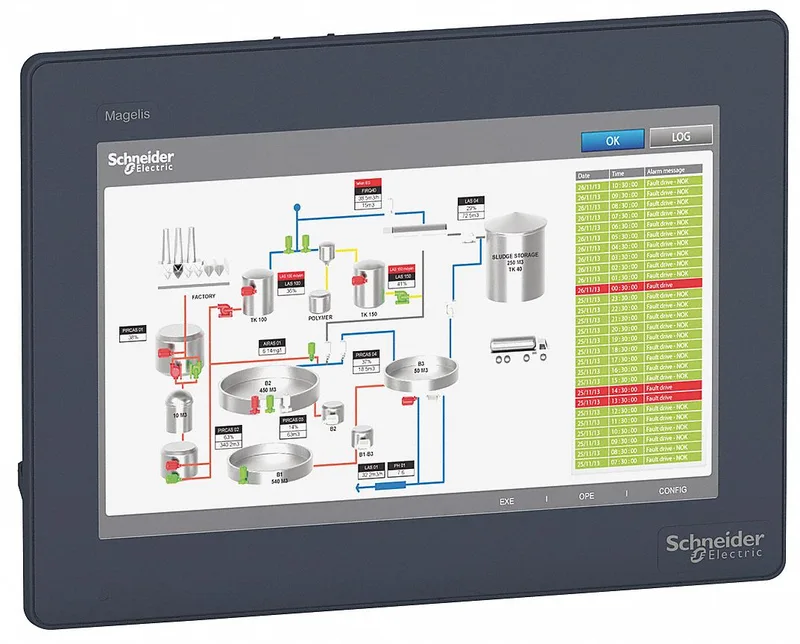

Schneider Electric HMIDT551
MPNHMIDT551
Active
ADVANCED TOUCHSCREEN PANEL, HARM
$801.37Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Display type | Colour TFT LCD |
| Terminal type | Touchscreen display |
| Type of cooling | Natural convection |
| Range of product | Harmony GTU |
| Type of installation | Indoor installation |
| Product or component type | Advanced touchscreen panel |
| Supply voltage limits | 10.8...28.8 V |
| Supply voltage | 12...24 V DC power supply |
| Inrush current | 30 A |
| Power consumption in | 6.5 W |
| IP degree of protection | Front panel IP66 Front panel IP67 |
| NEMA degree of protection | NEMA 4X front panel |
All specifications
| Parameter | Value |
|---|---|
| Shock resistance | 147 m/s²IEC 61131-2 |
| Relative humidity | 10...90 % non-condensing |
| Operating altitude | 6561.68 ft (2000 m) |
| Vibration resistance | 3.5 mm constant amplitude 5...9 Hz) IEC 61131-2 9.8 m/s² 9...150 Hz) IEC 61131-2 |
| Depth | 2.6 in (67 mm) |
| Width | 10.6 in (268.5 mm) |
| Height | 7.8 in (198.5 mm) |
| Display colour | 262144 colors |
| Cut-out dimensions | 255 (+ 1/- 0) x 185 (+ 1/- 0) mm |
| Standards | UL 508 ANSI/ISA 12-12-01 Class I division 2 CSA C22.2 No 213 CSA C22.2 No 142 IEC 61132-2 |
| Category | US10MC222567 |
| Touch panel | Single touch analogue resistive |
| Aspect ratio | 4:3 |
| Size | 10.1 inch |
| Pixel resolution | 1280 x 800 |
| Backlight lifespan | 50000 hours |
| Display resolution | 1280 x 800 pixels WVGA |
| Touchscreen resolution | 1024 x 1024 |
| Electromagnetic compatibility | Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 |
| Ambient air temperature for storage | -4...140 °F (-20...60 °C) |
| Ambient air temperature for operation | 32...140 °F (0...60 °C) IEC 61131-2 |
MPN
HMIDT551
