Schneider HMIDT65X Harmony GTUX extreme touchscreen, 12.1", 1000 cd/m²

MPNHMIDT65X
Active

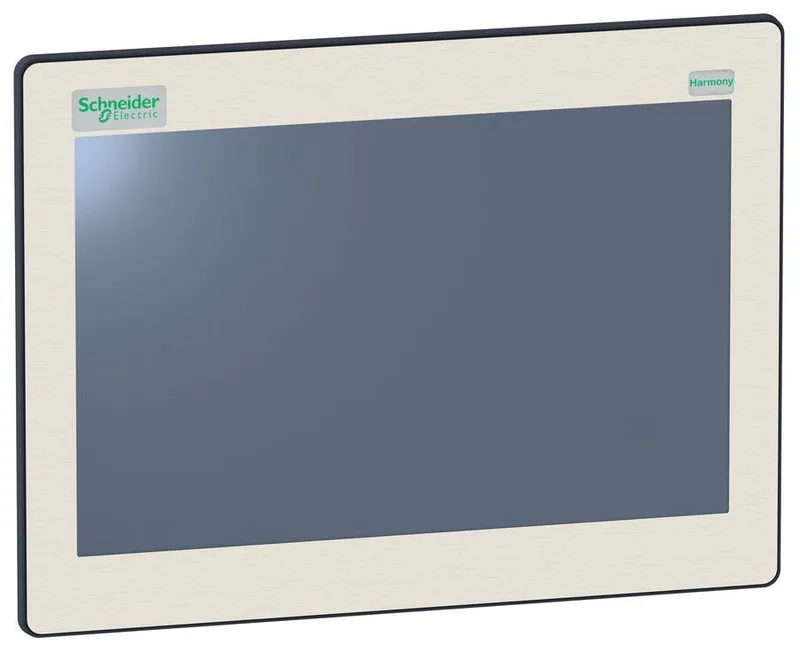

Schneider HMIDT65X Machine Interface.

$3,365.00Ref. price · indicative, final on quote
Schneider Electric HMIDT65X datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

HMIDT65X key specifications
ParameterValue
Display typeColour TFT LCD
Terminal typeTouchscreen display
Type of coolingNatural convection
Range of productHarmony GTUX
Product or component typeEXtreme touchscreen panel
Supply voltage limits10.8...28.8 V
Supply voltage12 V DC power supply
Inrush current30 A
Power consumption in12.5 W
IP degree of protectionIP66f IP67f Front panel Type 4X
Pollution degree2
Shock resistance392 m/s²IEC 61131-2

All specifications

HMIDT65X additional specifications
ParameterValue
Relative humidity10...90 % non-condensing
Operating altitude6561.68 ft (2000 m)
Vibration resistance7 mm constant amplitude 5...9 Hz) IEC 61131-2 19.6 m/s² 9...150 Hz) IEC 61131-2
Depth2.7 in (68 mm)
Width12.1 in (308.5 mm)
Height9.07 in (230.5 mm)
Display colour262144 colors
Cut-out dimensions295 (+ 1/- 0) x 217 (+ 1/- 0) mm
StandardsUL 61010 UL 121201 CSA C22.2 No 213 CSA C22.2 No 61010-1 IEC 61132-2
CategoryUS10MC222567
Luminance92.9 fc (1000 cd/m²)
Touch panelSingle touch analogue resistive
Aspect ratio4:3
Size12.1 inch
Pixel resolution1280 x 800
Display resolution1280 x 800 pixels WVGA
Touchscreen resolution1024 x 1024
Environmental characteristicCorrosive gas free UV resistant
Electromagnetic compatibilityElectrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
Ambient air temperature for storage-22...158 °F (-30...70 °C)
Ambient air temperature for operation-22...158 °F (-30...70 °C) IEC 61131-2

Product details

Overview

The HMIDT65X is a Schneider Harmony GTUX extreme touchscreen panel, 12.1" color display with 1000 cd/m² luminance and 1024 x 1024 resolution, built for single-touch analogue resistive input. Runs on a 12 V supply drawing 12.5 W, cooled by natural convection, and sealed to IP66F with certifications including UL 61010, CSA C22.2, IEC 61131-2, and ATEX zone 2/22.

Selection and integration

Panel cut-out is 295 (+1/-0) x 217 (+1/-0) mm; the HMIDT643 uses a different frame size, so a panel cut for the HMIDT643 will not accept the HMIDT65X without rework.

The HMIDT65X is an active catalogue item; lead time is confirmed per RFQ, and no end-of-life notice is published. Sourcing through current distribution channels.
