Schneider Electric HMIDT65XFH
MPNHMIDT65XFH
Active

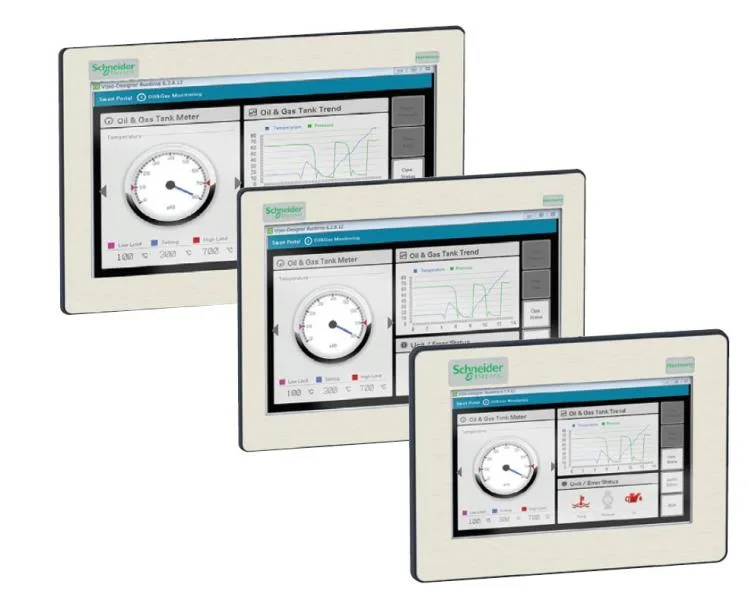

EXTREME TOUCHSCREEN PANEL HARMONY GTUX 12 W DISPLAY FULL COATED|EXTREME TOUCHSCREEN PANEL HARMONY GTUX 12 W DISPLAY FULL COATED
$2,056.13Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Display type | Colour TFT LCD |
| Terminal type | Touchscreen display |
| Type of cooling | Natural convection |
| Range of product | Harmony GTUX |
| Product or component type | EXtreme touchscreen panel |
| Supply voltage limits | 10.8...28.8 V |
| Supply voltage | 12 V DC power supply |
| Inrush current | 30 A |
| Power consumption in | 12.5 W |
| IP degree of protection | IP66f IP67f Front panel Type 4X |
| Pollution degree | 2 |
| Shock resistance | 392 m/s²IEC 61131-2 |
All specifications
| Parameter | Value |
|---|---|
| Relative humidity | 10...90 % non-condensing |
| Operating altitude | 6561.68 ft (2000 m) |
| Vibration resistance | 7 mm constant amplitude 5...9 Hz) IEC 61131-2 19.6 m/s² 9...150 Hz) IEC 61131-2 |
| Depth | 2.7 in (68 mm) |
| Width | 12.1 in (308.5 mm) |
| Height | 9.07 in (230.5 mm) |
| Display colour | 262144 colors |
| Cut-out dimensions | 295 (+ 1/- 0) x 217 (+ 1/- 0) mm |
| Standards | UL 61010 UL 121201 CSA C22.2 No 213 CSA C22.2 No 61010-1 IEC 61132-2 |
| Category | US10MC222567 |
| Luminance | 92.9 fc (1000 cd/m²) |
| Touch panel | Single touch analogue resistive |
| Aspect ratio | 4:3 |
| Size | 12.1 inch |
| Pixel resolution | 1280 x 800 |
| Display resolution | 1280 x 800 pixels WVGA |
| Touchscreen resolution | 1024 x 1024 |
| Environmental characteristic | 3C3 UV resistant |
| Electromagnetic compatibility | Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 |
| Ambient air temperature for storage | -22...158 °F (-30...70 °C) |
| Ambient air temperature for operation | -22...158 °F (-30...70 °C) IEC 61131-2 |
MPN
HMIDT65XFH
