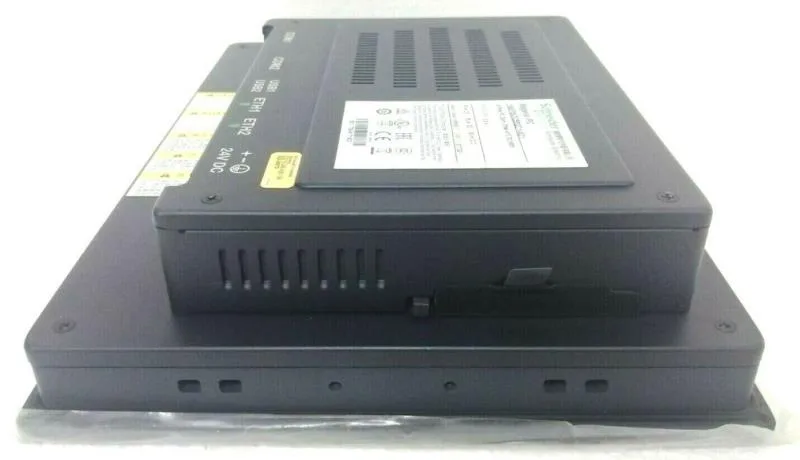

Schneider Electric HMIPSOC552D1W01
MPNHMIPSOC552D1W01
Obsolete
S-PANEL PC 10 W OPTI 4GB DC CFAST WES7|S-PANEL PC 10 W OPTI 4GB DC CFAST WES7
$1,361.44 – $3,240.00Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Main type | Optimised |
| Memory type | 4 GB RAM DDR3 internal |
| Chipset type | Intel Atom SoC |
| Display type | Colour TFT LCD LED |
| Terminal type | Touchscreen display |
| Type of cooling | Passive Fanless |
| Range of product | Harmony iPC |
| Video controller type | Intel HD Graphics |
| Product or component type | Multi-touch screen |
| Supply voltage | 24 V DC +/- 20 % 100...240 V AC with additional adaptor HMIYPSOMAC1 |
| Line rated current | 1.9 A |
| IP degree of protection | IP66 front panel: |
All specifications
| Parameter | Value |
|---|---|
| Pollution degree | 2 |
| Relative humidity | 10...95 % non-condensing |
| Operating altitude | 2000 |
| Vibration resistance | 1 gn 5...500 Hz)HDD 2 gn 5...500 Hz)SSD 2 gn 5...500 Hz)Cfast card |
| Depth | 2.4 in (61.3 mm) |
| Width | 11.1 in (283.1 mm) |
| Height | 8.0 in (202.3 mm) |
| Display colour | 267000 colours |
| Cut-out dimensions | 274.6 (+/- 0.7) x 193.8 (+/- 0.4) |
| Standards | CSA C22.2 No. 60950 IEC 60950 IEC 61000-6-2 IEC 61000-6-4 FCC Part 15 class A UL 60950 CISPR 11 |
| Category | US10MC322575 |
| Luminance | 27.9 fc (300 cd/m²) |
| Directives | 2006/95/EC - low voltage directive 2004/108/EC - electromagnetic compatibility |
| Free slots | 1 CFast |
| Touch panel | Projected capacitive technology (PCT) |
| Aspect ratio | 16:9 |
| Size | 10.1 inch |
| Processor name | Intel Atom E3827 dual core at 1.75 GHz |
| Watchdog timer | 1...255 ms |
| Local signalling | Buzzer LED (green) for on LED (orange) for stand-by |
| Number of points | 5 |
| Operating system | WES 7 Premium SP1 64-bitmulti-language |
| Pixel resolution | 4096 x 4096 |
| Software package | EcoStruxture secure connect advisor annual subscription cyber security license not included EcoStruxure Operator Terminal Expert run time HMI license not included EcoStruxure Machine SCADA Expert run time HMI/SCADA on configured offer only EcoStruxure augmented operator advisor server augmented operator license not included |
| Backlight lifespan | 50000 hours |
| Display resolution | 1280 x 800 pixels WSVGA |
| Function available | Operate with water on screen |
| Mechanical robustness | Hardness anti-scratch 7H |
| Data storage equipment | 32 GB back side CFast card |
| View angle horizontal x vertical | 160 x 160° |
| Ambient air temperature for storage | -4...140 °F (-20...60 °C) |
| Ambient air temperature for operation | 32...131 °F (0...55 °C) SSD 32...131 °F (0...55 °C) Cfast card 32...113 °F (0...45 °C) HDD 32...113 °F (0...45 °C) Mini PCIe |
MPN
HMIPSOC552D1W01
