Schneider Electric HMIPSOS552D1801
MPNHMIPSOS552D1801
Obsolete

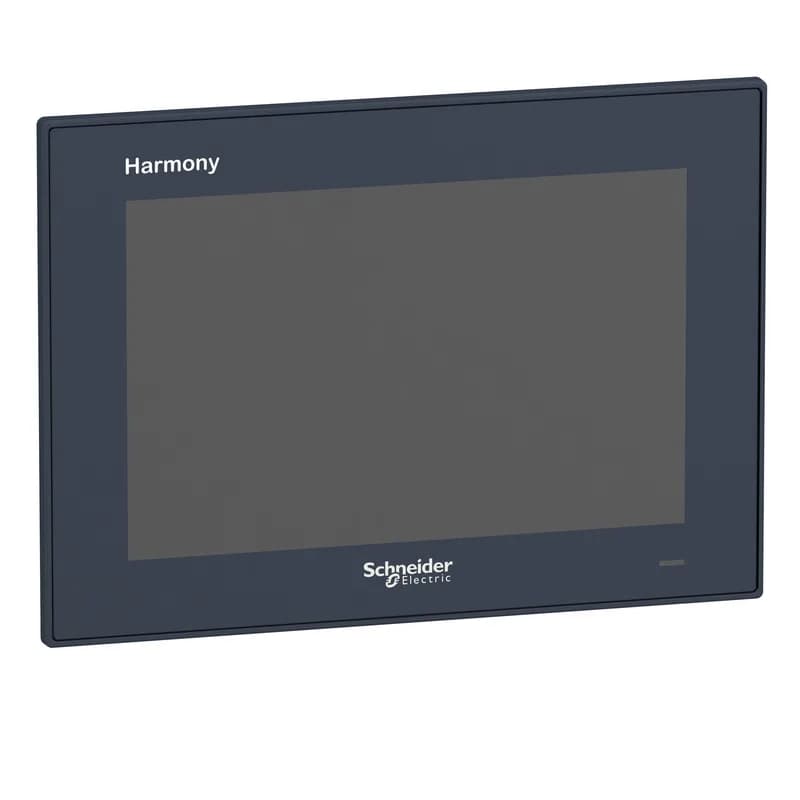

Square D HMIPSOS552D1801 S-Panel Pc 10W Optic 4Gb DC Ssd Win8
$1,544.32 – $3,220.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Main type | Optimised |
| Memory type | 4 GB RAM DDR3 internal |
| Chipset type | Intel Atom SoC |
| Display type | Colour TFT LCD LED |
| Terminal type | Touchscreen display |
| Type of cooling | Fanless Passive |
| Range of product | Harmony iPC |
| Video controller type | Intel HD Graphics |
| Product or component type | Multi-touch screen |
| Supply voltage | 24 V DC +/- 20 % 100...240 V AC with additional adaptor HMIYPSOMAC1 |
| Line rated current | 1.9 A |
| IP degree of protection | IP66 front panel: |
All specifications
| Parameter | Value |
|---|---|
| Pollution degree | 2 |
| Relative humidity | 10...95 % non-condensing |
| Operating altitude | 2000 |
| Vibration resistance | 1 gn 5...500 Hz)HDD 2 gn 5...500 Hz)SSD 2 gn 5...500 Hz)Cfast card |
| Depth | 3.4 in (85.5 mm) |
| Width | 11.1 in (283.1 mm) |
| Height | 8.0 in (202.3 mm) |
| Display colour | 267000 colours |
| Cut-out dimensions | 274.6 (+/- 0.7) x 193.8 (+/- 0.4) |
| Standards | UL 60950 CSA C22.2 No. 60950 FCC Part 15 class A CISPR 11 IEC 61000-6-4 IEC 61000-6-2 IEC 60950 |
| Category | US10MC322575 |
| Luminance | 27.9 fc (300 cd/m²) |
| Directives | 2004/108/EC - electromagnetic compatibility 2006/95/EC - low voltage directive |
| Free slots | 1 Internal SATA HDD/SSD 1 CFast |
| Touch panel | Projected capacitive technology (PCT) |
| Aspect ratio | 16:9 |
| Size | 10.1 inch |
| Processor name | Intel Atom E3827 dual core at 1.75 GHz |
| Watchdog timer | 1...255 ms |
| Number of slots | 1 mini PCI Express full-size |
| Local signalling | Buzzer LED (green) for on LED (orange) for stand-by |
| Number of points | 5 |
| Operating system | Windows 10 IoT Enterprise 64 bitmulti-language |
| Pixel resolution | 4096 x 4096 |
| Software package | EcoStruxture secure connect advisor annual subscription cyber security license not included EcoStruxure Operator Terminal Expert run time HMI license not included EcoStruxure Machine SCADA Expert run time HMI/SCADA on configured offer only EcoStruxure augmented operator advisor server augmented operator license not included |
| Backlight lifespan | 50000 hours |
| Display resolution | 1280 x 800 pixels WSVGA |
| Function available | Operate with water on screen |
| Mechanical robustness | Hardness anti-scratch 7H |
| Data storage equipment | 128 GB extension back side SSD 1500000 h |
| View angle horizontal x vertical | 160 x 160° |
| Ambient air temperature for storage | -4...140 °F (-20...60 °C) |
| Ambient air temperature for operation | 32...131 °F (0...55 °C) SSD 32...131 °F (0...55 °C) Cfast card 32...113 °F (0...45 °C) HDD 32...113 °F (0...45 °C) Mini PCIe |
MPN
HMIPSOS552D1801
