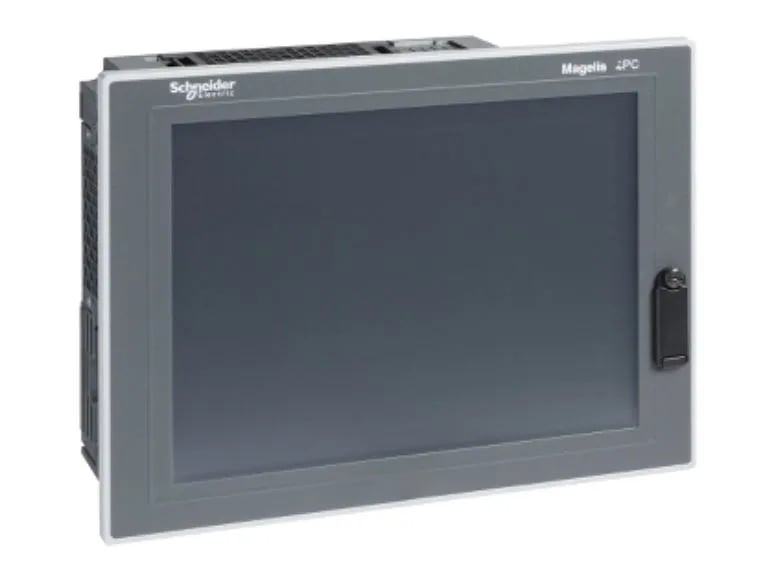

Schneider Electric HMIPUF6D0701
MPNHMIPUF6D0701
HMIPUF6D0701 - PANEL PC by SQUARE D
$14,504.67Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Main type | Universal |
| Memory type | 2 GB, expandable to 16 GB RAM DDR3 |
| Chipset type | Intel BD82HM76 |
| Control type | ON/OFF push-button equipment ON and OFF) Push-button reset) |
| Display type | Active matrix colour TFT LCD with LED backlight |
| Terminal type | Touchscreen display |
| Type of cooling | Fanless |
| Range of product | Harmony iPC |
| Type of installation | Indoor |
| Video controller type | Intel HD Graphics 3000 |
| Product or component type | PC panel |
| Integrated connection type | 2 Ethernet port - RJ45 COM1 serial link - male SUB-D 9 - RS232C 115 kbit/s)bottom COM2 serial link - male SUB-D 9 - RS232C 115 kbit/s)bottom DVI video portbottom audio output - mini-jack USB 2.0 type A 480 Mbit/s)front panel 4 USB 3.0 type A 5 Gbit/s)bottom |
All specifications
| Parameter | Value |
|---|---|
| Supply voltage | 24 V DC +/- 25 % power supply |
| Inrush current | 7 A |
| Power consumption in | 130 W |
| IP degree of protection | IP65 front panel: conforming to EN/IEC 60529 |
| NEMA degree of protection | NEMA 4X front panel |
| Pollution degree | 2 EN/IEC 61131-2 |
| Shock resistance | 15 gn 11 ms IEC 60068-2-27, Ea tests |
| Relative humidity | 10...85 % non-condensing EN/IEC 60068-2-78 10...85 % non-condensing EN/IEC 60068-2-30 |
| Operating altitude | 6561.68 ft (2000 m) EN/IEC 61131-2 |
| Vibration resistance | 1.75 mm 2...9 Hz) continuous EN/IEC 60068-2-6 Fc 3.5 mm 2...9 Hz) intermittently EN/IEC 60068-2-6 Fc 0.5 gn 9...200 Hz) continuous EN/IEC 60068-2-6 Fc 1 gn 9...200 Hz) intermittently EN/IEC 60068-2-6 Fc 1 mm 3...13.2 Hz) continuous EN/IEC 60068-2-6 Fc 0.7 gn 13.2...100 Hz) continuous EN/IEC 60068-2-6 Fc |
| Depth | 2.4 in (60 mm) |
| Width | 12.3 in (313 mm) |
| Height | 9.4 in (239 mm) |
| Material | Die cast aluminium |
| Bezel material | Aluminium alloy |
| Display colour | 16 million colours |
| Display material | Polyethylene sheet |
| Cut-out dimensions | 301.5 (+ 1/- 0) x 227.5 (+ 1/- 0) x 1.6...9 mm |
| Category | 22575-MAGELIS MC3 |
| Luminance | 34.8 fc (375 cd/m²) |
| Fixing mode | Enclosure door by fixing kit fasteners included) |
| Touch panel | Analogue resistive |
| Size | 12 inch |
| Port ethernet | 10BASE-T/100BASE-T/1000BASE-T |
| Processor name | Intel icore 3rd generation 827E cache 3 MB |
| Local signalling | Buzzer LED (multi-colour) for power LED (orange) for accessing Flash disk SSD (DISK) LED for link status LED for RUN |
| Operating system | Windows 7 64 bits Ultimatemulti-language |
| Software package | Vijeo Designer run time demo |
| Backlight lifespan | 50000 hours 77 °F (25 °C) |
| Display resolution | 1024 x 768 pixels XGA |
| Data storage equipment | >= 60 GB Flash disk SSD MLC 2000000 h |
| Electromagnetic compatibility | Immunity to electromagnetic emissions, class A EN 55022 Immunity to electromagnetic emissions, class A EN 55011 Immunity to high frequency interference EN/IEC 61131-2 Immunity to high frequency interference EN/IEC 61000-4-x |
| View angle horizontal x vertical | 80 x 80° |
| Ambient air temperature for storage | -4...140 °F (-20...60 °C) IEC 60068-2-2 test Bb -4...140 °F (-20...60 °C) IEC 60068-2-14 test Na |
| Ambient air temperature for operation | 32...122 °F (0...50 °C) vertical installation UL 508 32...113 °F (0...45 °C) vertical installation when using Gigabit Ethernet with HDD storage device UL 508 32...122 °F (0...50 °C) vertical installation IEC 61132-2 32...113 °F (0...45 °C) vertical installation when using Gigabit Ethernet with HDD storage device IEC 61132-2 |
