Schneider Electric HMIZKB1

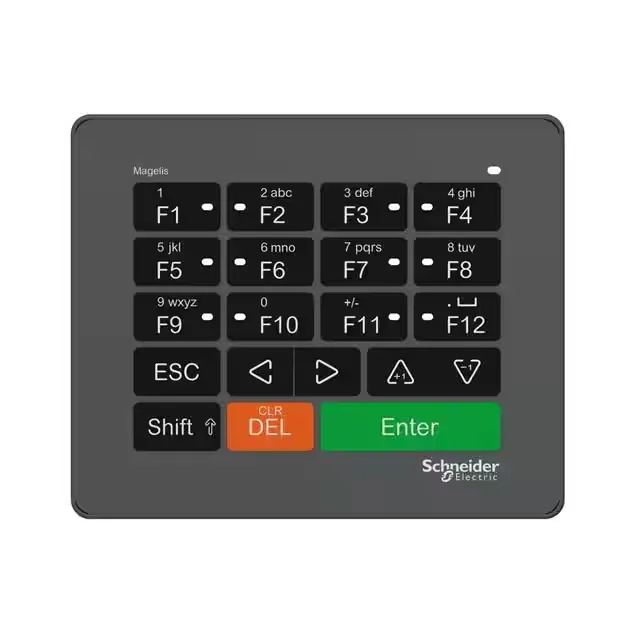

Schneider HMIZKB1 Harmony USB keyboard, 20 keys, IP65

MPNHMIZKB1
Obsolete

Schneider Electric Harmony HMIZKB1 USB keyboard, 20 keys (12 customizable with integrated LEDs), 5 V supply, 0.75 W, IP65, NEMA 4X indoor/outdoor, shock 147 m/s², for HMIGXO/HMISTU/HMISTO/HMIGTO/HMISCU.

$134.45 – $166.84Ref. price · indicative, final on quote
Schneider Electric HMIZKB1 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

HMIZKB1 key specifications
ParameterValue
Connector typeMini B USB
Range of productHarmony HMIZ
Product or component typeKeyboard
Supply voltage limits4.75...5.25 V DC
Supply voltage5 V DC USB 2.0
Power consumption in0.75 W
IP degree of protectionIP65 front panel (in enclosure))
NEMA degree of protectionNEMA 4X indoor installation NEMA 4X enclosed outdoor
Mounting locationFlat surface
Pollution degree2
Shock resistance147 m/s²3 chocks in each direction X, Y and Z IEC 61131-2
Relative humidity10...90 % 32...102 °F (0...39 °C) non-condensing

All specifications

HMIZKB1 additional specifications
ParameterValue
Operating altitude<= 6561.68 ft (2000 m)
Vibration resistance3.5 mm (f= 5...9 Hz) conforming to IEC 61131-2
Depth1.2 in (31.5 mm)
Width3.8 in (97.6 mm)
Height3.1 in (80 mm)
Colour of coverFront dark grey
StandardsEN 61000-6-4 CSA C22.2 No 213 EN 61000-6-2 CSA C22.2 No 142 ANSI/ISA 12.12.01 EMC 2004/108/EC UL 508
CategoryUS1000I22000
Number of key20
Level or classClass I Division 2 Groups A/B/C/D
Quantity per set1 piece
Device applicationIndustrial machines Food and beverage
Provided equipment1 x User Manual 1 x tightening wrench 1 x anti-rotation tee 1 x USB cable type A/mini-B 5.9 ft (1.8 m) 1 x USB type mini-B cable clamp 1 x fixing nut 1 x replaceable label for function keys
Software designationVijeo Designer >= V6.2
Number of customisable keys12 with integrated LEDs
Environmental characteristicCorrosive gas free
Electromagnetic compatibilityElectrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 61000-4-2 Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 Electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4 Electrical fast transient/burst immunity test - test level: 1 kV (signal ports) conforming to IEC 61000-4-4
Ambient air temperature for storage-4...140 °F (-20...60 °C)
Ambient air temperature for operation32...131 °F (0...55 °C)

Product details

Overview

The HMIZKB1 is a 20-key USB keyboard from the Schneider Harmony HMIZ range, with 12 of those keys customizable and carrying integrated LEDs for status indication. It runs on a 5 V supply drawing 0.75 W, connects via a mini-B USB port, and is sealed to IP65 with a NEMA 4X rating for indoor and outdoor use. The keyboard is compatible with the HMIGXO, HMISTU, HMISTO, HMIGTO, and HMISCU HMI ranges, and ships with a USB cable, anti-rotation tee, and replaceable function-key labels.

Selection and integration

Rated for a shock of 147 m/s² applied in three chocks per axis (X, Y, Z) per IEC 61131-2, the HMIZKB1 is built for industrial machines and food-and-beverage environments where vibration and impact are present. The 12 customizable keys with integrated LEDs allow direct operator feedback without an additional indicator light, reducing panel wiring.
