Schneider Electric HMIZMDARX
MPNHMIZMDARX
Active

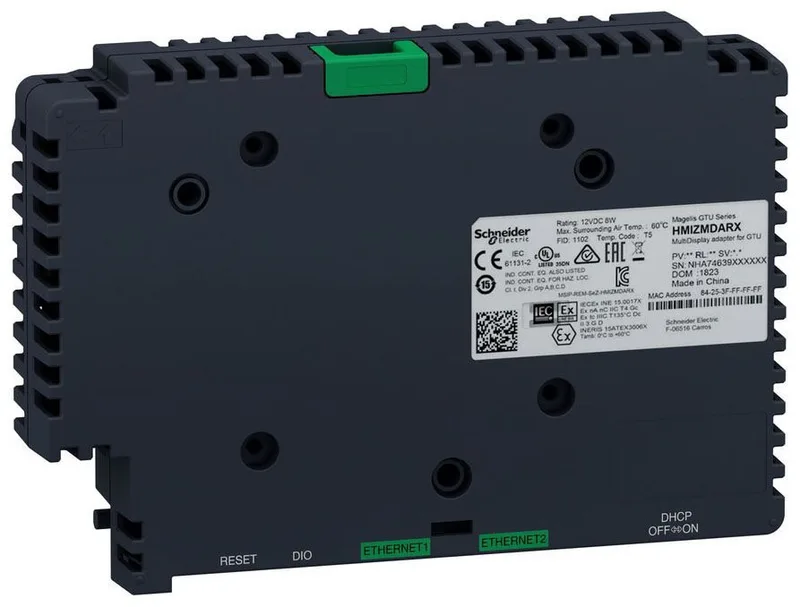

Square D HMIZMDARX Multi Display Adapter|Square D HMIZMDARX Multi Display Adapter
$845.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type of cooling | Natural |
| Range of product | Harmony GTU |
| Output voltage type | DC |
| Integrated connection type | 1 DIO terminal block 3 inputs + 1 output 2 Ethernet TCP/IP RJ45 jack |
| Accessory (Separate part type) | Adaptor |
| Input voltage | 12 V DC module supply 24 V DC |
| Output voltage | 24 V |
| Supply voltage | 12 V DC module supply |
| Output current | 50 mA |
| Power consumption in | 8 W |
| Pollution degree | 2 |
| Shock resistance | 147 m/s²X, Y, Z directions for 3 times IEC 61131-2 |
All specifications
| Parameter | Value |
|---|---|
| Relative humidity | 10...90 % non-condensing |
| Operating altitude | 6561.68 ft (2000 m) |
| Vibration resistance | 3.5 mm constant amplitude 5...9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2 9.8 m/s² constant acceleration 9...150 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2 |
| Depth | 1.4 in (35 mm) |
| Width | 7.4 in (188 mm) |
| Height | 5.2 in (131 mm) |
| Category | US10MC222569 |
| Local signalling | LED green, steady operating status (RUN) LED green, faded stand-by LED green/orange, alternate program mode LED orange, flashing establishing communication connection LED red, steady power ON LED green, orange and red, alternate ERROR (fault) |
| Environmental characteristic | Corrosive gas free Dustproof |
| Electromagnetic compatibility | Electrostatic discharge immunity test - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2 Electrostatic discharge immunity test - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2 |
| Resistance to fast transients | 1 kV IEC 61000-4-4 signal ports) 2 kV IEC 61000-4-4 power ports) |
| Accessory (separate part category) | Adaptation accessory |
| Ambient air temperature for storage | -4...140 °F (-20...60 °C) |
| Ambient air temperature for operation | 32...140 °F (0...60 °C) |
MPN
HMIZMDARX
