Schneider HMIZRA1 Illuminated Switch Key
MPNHMIZRA1
Active
SCHNEIDER ELECTRIC Illuminated Switch Function key
$86.36Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|

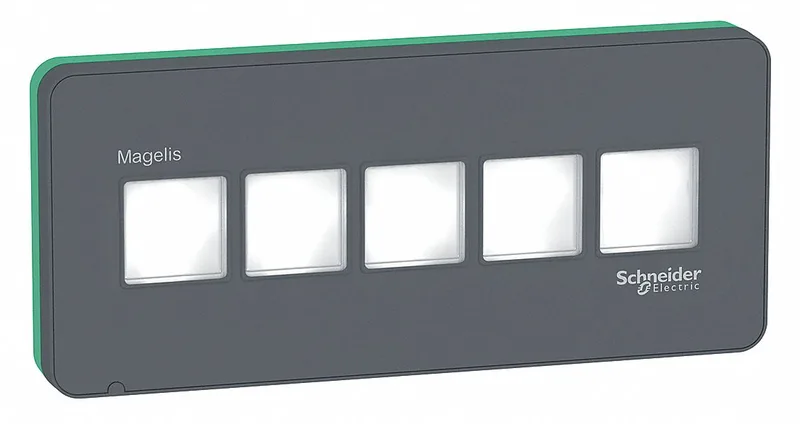

| Control type | 5 push-buttons multi-colour backlit LED |

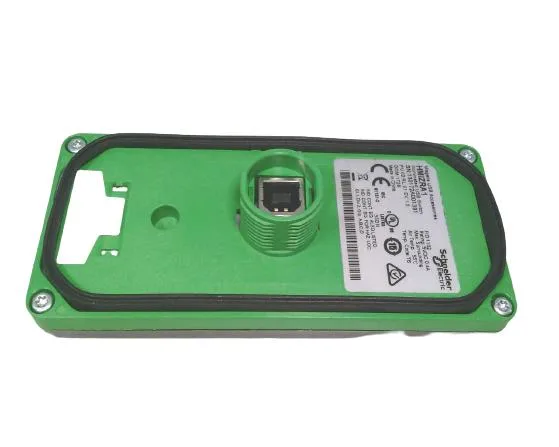

| Connector type | USB type B |
| Range of product | Harmony HMIZ |
| Product or component type | Illuminated USB switch |
| Supply voltage limits | 4.75...5.25 V DC |
| Supply voltage | 5 V DC USB 2.0 |
| Power consumption in | 2 W |
| IP degree of protection | IP65 front panel (in enclosure)) |
| NEMA degree of protection | NEMA 4X indoor installation NEMA 13 enclosed outdoor |
| Mounting location | Flat surface |
| Pollution degree | 2 |
| Shock resistance | 147 m/s²3 chocks in each direction X, Y and Z IEC 61131-2 |
All specifications
| Parameter | Value |
|---|---|
| Relative humidity | 10...90 % 32...131 °F (0...55 °C) non-condensing |
| Operating altitude | <= 6561.68 ft (2000 m) |
| Vibration resistance | 3.5 mm (f= 5...9 Hz) conforming to IEC 61131-2 |
| Depth | 1.1 in (28 mm) |
| Width | 4.8 in (122 mm) |
| Height | 2.1 in (54 mm) |
| Colour of cover | Front dark grey |
| Standards | CSA C22.2 No 142 UL 508 CSA C22.2 No 213 EN 61000-6-4 ANSI/ISA 12.12.01 EN 61000-6-2 EMC 2004/108/EC |
| Category | US10MC222569 |
| Level or class | Class I Division 2 Groups A/B/C/D |
| Quantity per set | 1 piece |
| Device application | Food and beverage Industrial machines |
| Provided equipment | 1 x User Manual 1 x USB type B cable clamp 1 x fixing nut 1 x tightening wrench 1 x anti-rotation tee 1 x gasket 1 x insert label 1 x USB cable type A/B 3.3 ft (1 m) |
| Software designation | Vijeo Designer >= V6.1 SP2 |
| Environmental characteristic | Corrosive gas free |
| Electromagnetic compatibility | Electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 61000-4-2 Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 Electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4 Electrical fast transient/burst immunity test - test level: 1 kV (signal ports) conforming to IEC 61000-4-4 |
| Ambient air temperature for storage | -4...140 °F (-20...60 °C) |
MPN
HMIZRA1
