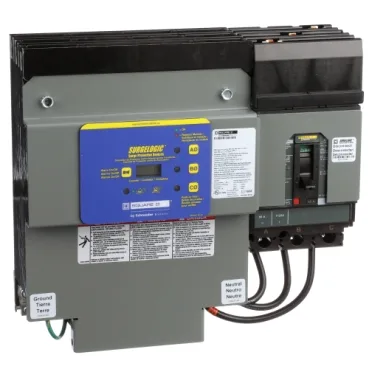

Schneider Electric HR4IMA24C
MPNHR4IMA24C
Obsolete
HR4IMA24C by SCHNEIDER ELECTRIC
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Type | HR |
| Voltage rating | 480Y/277 V AC |
| Current | 60 A |
| Surge current | 240 kA |
| Breaking capacity | 100 kA |
| Max number of poles | 3 |
| Phases | 3 phase |
| IP rating | NEMA 2 |
| Mounting support | Panel mounting |
| Connection | I-Line line Lugs ground AWG 6 copper 35.4 lbf.in (4 N.m) Lugs neutral AWG 6 copper 35.4 lbf.in (4 N.m) |
| Cable length | 19.02 in (483 mm) |
| Depth | 5.6 in (142.1 mm) |
All specifications
| Parameter | Value |
|---|---|
| Width | 13.5 in (341.9 mm) |
| Height | 12.2 in (308.9 mm) |
| Standards | UL 1449:ed. 3 UL 1283:ed. 5 CSA C22.2 No 8:1986 UL 96A:ed. 12 UL 489:ed. 11 CSA C22.2 No 5-09 |
| MCOV | 320 V |
| SCCR | 200 kA |
| Range | Surgelogic |
| Product | Surge protection device |
| Category | US1DE1B08460 |
| Local signalling | Status LED green per phase normal operation Status LED red per phase fault |
| Device short name | IMA |
| Provided equipment | Alarm enable/disable switch Surge counter Circuit-breaker |
| Trip unit technology | Electronic |
| Wiring configuration | 4-wire |
MPN
HR4IMA24C
