Schneider Electric HRL36050M72
MPNHRL36050M72
Active

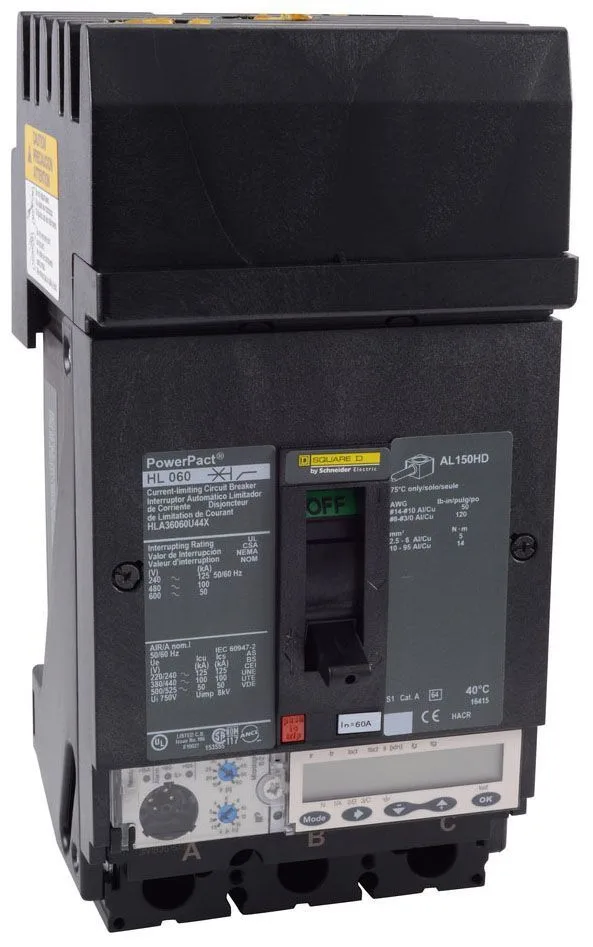

Square D HRL36050M72 3P 50A Circuit Breaker|Square D HRL36050M72 3P 50A Circuit Breaker
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Control type | Toggle |
| Product or component type | Motor Circuit Protector |
| Voltage | 750 V IEC 60947-2 |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz IEC 60947-3 |
| [Uimp] rated impulse withstand voltage | 8 kV IEC 60947-2 |
| Breaking capacity | 200 kA 240 V AC 50/60 Hz UL 489 200 kA 480 V AC 50/60 Hz UL 489 100 kA 600 V AC 50/60 Hz UL 489 |
| Line rated current | 50 A |
| Breaking capacity code | R |
| Continuous current rating | 80 % |
| Magnetic tripping current | 84...546 A |
| [Ics] rated service breaking capacity | 150 kA 220/240 V AC 50/60 Hz IEC 60947-2 125 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 75 kA 500/525 V AC 50/60 Hz IEC 60947-2 20 kA 690 V AC 50/60 Hz IEC 60947-2 |
| [Ith] conventional free air thermal current | 14...42 A |
All specifications
| Parameter | Value |
|---|---|
| Power wire stripping length | 0.6 in (16 mm) |
| Network frequency | 50/60 Hz |
| Poles | 3P |
| Protected poles description | 3t |
| Utilisation category | Category A |
| IP degree of protection | Front cover IP40 IEC 60529 |
| Communication interface | Modbus Ethernet |
| Mounting mode | Unit mount lug) |
| Mounting support | Lug |
| Terminal identifier | AL150HD |
| Electrical connection | Lugs, line Lugs, load |
| Pollution degree | 3 IEC 60947-1 |
| Operating altitude | < 6561.68 ft (2000 m) without derating 5000 m with derating |
| Color | Black |
| Depth | 3.4 in (86 mm) |
| Width | 4.09 in (104 mm) |
| Height | 6.4 in (163 mm) |
| Standards | UL CSA NEMA NOM-003-SCFI-2000 IEC 60947-2 |
| Range | PowerPact |
| Category | US10DE201127 |
| AWG gauge | AWG 14...AWG 3/0 aluminium/copper terminal |
| Quality labels | CE |
| Number of slots | 2 auxiliary switch OF plug-in) 1 alarm switch SD plug-in) 1 overcurrent trip switch SDE plug-in) 1 voltage release MN or MX plug-in) |
| Quantity per set | 1 |
| Tightening torque | 44.3 lbf.in (5 N.m) 0.004...0.009 in² (2.5...6 mm²) (AWG 14...AWG 10) 123.9 lbf.in (14 N.m) 0.02...0.1 in² (10...95 mm²) (AWG 8...AWG 3/0) |
| Device application | Distribution |
| Trip unit technology | Thermal-magnetic |
| Suitability for isolation | Yes IEC 60947-2 |
| Ambient air temperature for storage | -58...185 °F (-50...85 °C) |
| Ambient air temperature for operation | -13...158 °F (-25...70 °C) |
