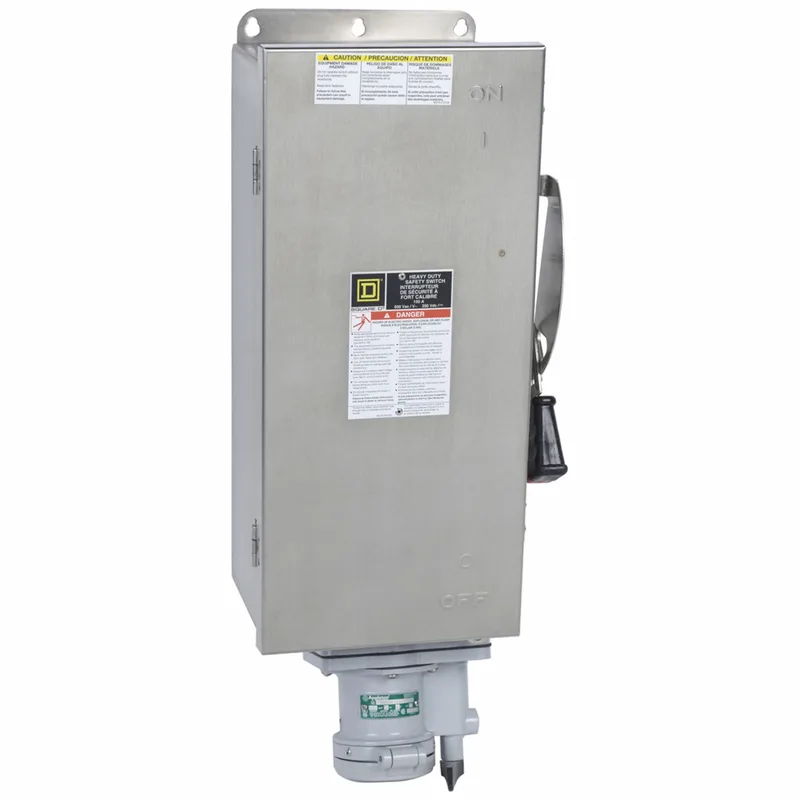

Schneider HU363DSWA Non-Fusible Safety Switch
MPNHU363DSWA
Active
SQUARE D Safety Switch: Non-Fusible, 100 A, Three Phase, 600V AC, 304 Stainless Steel
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Surface |
| Disconnect type | Non-fusible disconnect switch |
| Voltage rating | 600 V AC 250 V DC |
| Current rating | 100 A |
| Maximum horse power rating | 75 hp at 480 V AC 50-60 Hz for 3 phase motors 100 hp at 600 V AC 50-60 Hz for 3 phase motors 20 hp at 250 V DC |
| Poles | 3 |
| Enclosure rating NEMA 3R | NEMA 4X/5 stainless steel 304 |
| Wire AWG | AWG 12...AWG 1/0 aluminium AWG 14...AWG 1/0 copper |
| Wire configuration | 4-wire |
| Electrical connection | Receptacle |
| Depth | 6.97 in (177.04 mm) |
| Width | 11.25 in (285.75 mm) |
| Height | 28.00 in (711.20 mm) |
| Certifications | UL Listed |
| Product | Receptacle Switch |
| Category | US10DE100124 |
| For use with | Plug ACP1034CD Appleton Powertite |
| Tightening torque | 50 lbf.in (5.6 N.m) (AWG 3...AWG 1) 45 lbf.in (5.08 N.m) (AWG 6...AWG 4) 40 lbf.in (4.5 N.m) (AWG 8) 35 lbf.in (4.0 N.m) (AWG 14...AWG 10) |
MPN
HU363DSWA
