Schneider Electric HU662AWKEI
MPNHU662AWKEI
Active

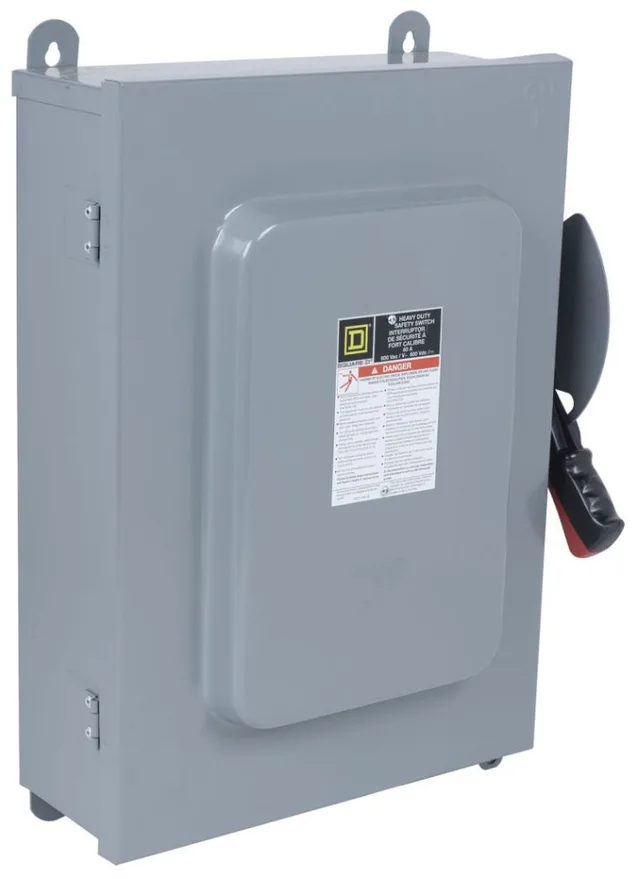

Safety switch, heavy duty, non fusible, 60A, 6 pole, 60hp, 600VAC/DC, NEMA 12, interlock kit
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Surface |
| Disconnect type | Non-fusible disconnect |
| Voltage rating | 600 V AC/DC |
| Current rating | 60 A |
| Standard motor power rating | 20 hp at 240 V AC 50-60 Hz for 3 phase motors 50 hp at 480 V AC 50-60 Hz for 3 phase motors 60 hp at 600 V AC 50-60 Hz for 3 phase motors |
| Poles | 6 |
| Duty rating | Heavy duty |
| IP rating | NEMA 3R/12 |
| Wire AWG | AWG 14...AWG 3 copper AWG 12...AWG 3 aluminium |
| Depth | 6.8 in (172.7 mm) |
| Width | 16.13 in (409.70 mm) |
| Height | 20.5 in (520.7 mm) |
| Certifications | UL listed file E2875 |
| Product | Single Throw Safety Switch |
| Category | US10DE100160 |
| Tightening torque | 50 lbf.in (5.6 N.m) (AWG 3) 45 lbf.in (5.08 N.m) (AWG 6...AWG 4) 40 lbf.in (4.5 N.m) 0.013 in² (8.367 mm²) (AWG 8) 50 lbf.in (5.6 N.m) 0.003...0.008 in² (2.06...5.261 mm²) (AWG 14...AWG 10) |
| Device application | Heavy application |
| Wiring configuration | 6-wire |
MPN
HU662AWKEI
