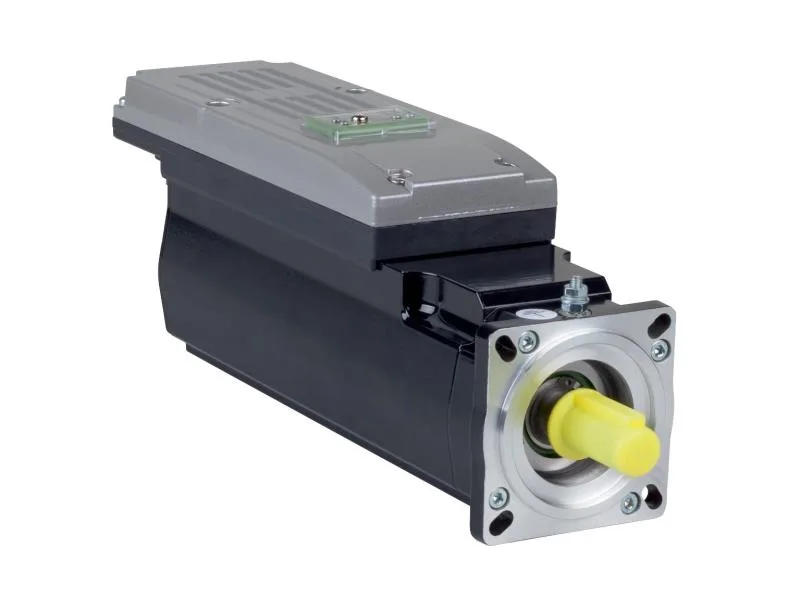

Schneider ILM0702P11F0000 Servo Drive 6000rpm
MPNILM0702P11F0000
Obsolete
ILM0702P11F0000 - 6000 RPM by SCHNEIDER ELECTRIC
$1,781.81Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Feedback type | Absolute single turn SinCos Hiperface |
| Type of cooling | Natural convection |
| Range of product | PacDrive 3 |
| Product or component type | Servo motor integrated drive |
| Supply voltage | 250...700 V |
| Line rated current | 1.5 A |
| Maximum current irms | 11.8 A |
| Continuous stall current | 2.5 A |
| Nominal output power | 720 W |
| Number of motor poles | 6 |
| IP degree of protection | IP54 |
| Mounting support | International standard flange |
All specifications
| Parameter | Value |
|---|---|
| Mounting holes diameter | 0.2 in (5.5 mm) |
| Number of mounting holes | 4 |
| Circle diameter of the mounting holes | 3.2 in (82 mm) |
| Key width | 0.7 in (18 mm) |
| Centring collar depth | 0.10 in (2.5 mm) |
| Length | 9.9 in (252 mm) |
| Category | US1PC5218351 |
| Shaft end | Keyed |
| Second shaft | Without second shaft end |
| Shaft length | 0.9 in (23 mm) |
| Holding brake | With |
| Nominal speed | 6000 rpm |
| Rotor inertia | 0.51 kg.cm² |
| Holding torque | 26.6 lbf.in (3 N.m) holding brake |
| Nominal torque | 10.18 lbf.in (1.15 N.m) |
| Shaft diameter | 0.4 in (11 mm) |
| Torque constant | 0.76 N.m/A 248 °F (120 °C) |
| Back emf constant | 48 V/krpm 68 °F (20 °C) |
| Device short name | ILM |
| Motor flange size | 2.8 in (70 mm) |
| Peak stall torque | 67.3 lbf.in (7.6 N.m) |
| Stator inductance | 19 mH 68 °F (20 °C) Ph/Ph 9.5 mH 248 °F (120 °C) Ph/N |
| Stator resistance | 4.2 Ohm 68 °F (20 °C) Ph/Ph 2.92 Ohm 248 °F (120 °C) Ph/N |
| Maximum axial force fa | 0.2 x Fr |
| Number of motor stacks | 2 |
| Continuous stall torque | 15.05 lbf.in (1.7 N.m) |
| Maximum radial force fr | 710 N 1000 rpm 560 N 2000 rpm 490 N 3000 rpm 450 N 4000 rpm 410 N 5000 rpm 390 N 6000 rpm |
| Centring collar diameter | 2.4 in (60 mm) |
| Speed feedback resolution | 128 periods |
MPN
ILM0702P11F0000
