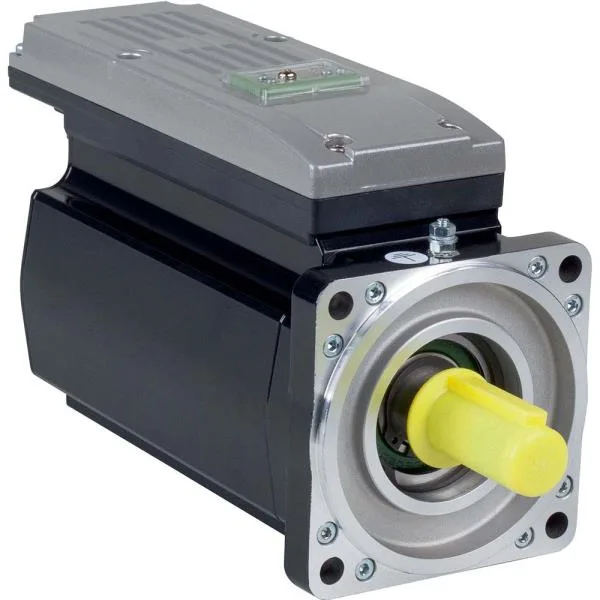

Schneider ILM1003P02F0000 Integrated Drive
MPNILM1003P02F0000
Active
ILM1003P02F0000 - INTEGRATED by SCHNEIDER ELECTRIC
$2,221.23Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Feedback type | Absolute multiturn SinCos Hiperface |
| Type of cooling | Natural convection |
| Range of product | PacDrive 3 |
| Product or component type | Servo motor integrated drive |
| Supply voltage | 250...700 V |
| Line rated current | 2.4 A |
| Maximum current irms | 21.2 A |
| Continuous stall current | 3.6 A |
| Nominal output power | 1100 W |
| Number of motor poles | 8 |
| IP degree of protection | IP54 |
| Mounting support | International standard flange |
All specifications
| Parameter | Value |
|---|---|
| Mounting holes diameter | 0.4 in (9 mm) |
| Number of mounting holes | 4 |
| Circle diameter of the mounting holes | 4.5 in (115 mm) |
| Key width | 1.2 in (30 mm) |
| Centring collar depth | 0.1 in (3.5 mm) |
| Length | 12.4 in (315 mm) |
| Category | US1PC5218351 |
| Shaft end | Untapped |
| Second shaft | Without second shaft end |
| Shaft length | 1.6 in (40 mm) |
| Holding brake | With |
| Nominal speed | 3000 rpm |
| Rotor inertia | 3.92 kg.cm² |
| Holding torque | 79.7 lbf.in (9 N.m) holding brake |
| Nominal torque | 31.0 lbf.in (3.5 N.m) |
| Shaft diameter | 0.7 in (19 mm) |
| Torque constant | 1.61 N.m/A 248 °F (120 °C) |
| Back emf constant | 103 V/krpm 68 °F (20 °C) |
| Device short name | ILM |
| Motor flange size | 3.9 in (100 mm) |
| Peak stall torque | 250.5 lbf.in (28.3 N.m) |
| Stator inductance | 15.6 mH 68 °F (20 °C) Ph/Ph 7.8 mH 248 °F (120 °C) Ph/N |
| Stator resistance | 2.6 Ohm 68 °F (20 °C) Ph/Ph 1.81 Ohm 248 °F (120 °C) Ph/N |
| Maximum axial force fa | 0.2 x Fr |
| Number of motor stacks | 3 |
| Continuous stall torque | 51.3 lbf.in (5.8 N.m) |
| Maximum radial force fr | 1050 N 1000 rpm 830 N 2000 rpm 730 N 3000 rpm |
| Centring collar diameter | 3.7 in (95 mm) |
| Speed feedback resolution | 128 periods |
MPN
ILM1003P02F0000
