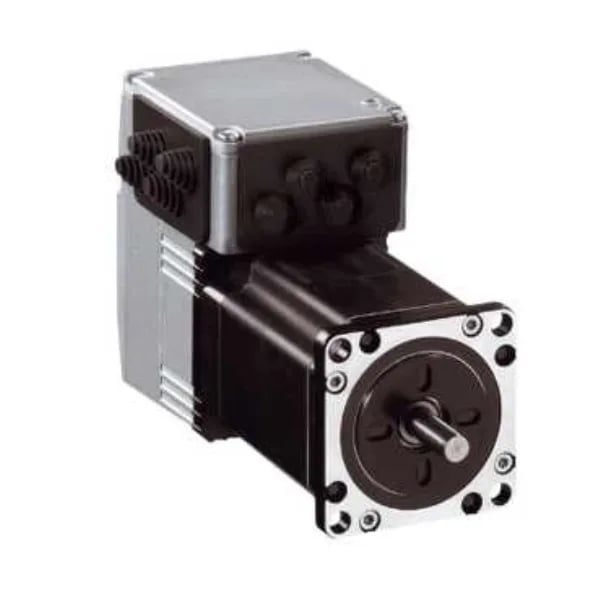

Schneider ILS1B573PB1A0 Stepper Drive
MPNILS1B573PB1A0
Obsolete
LEXIUM ILS STEPPER MOT 24 36V PRO DP
$968.00 – $1,382.84Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Motor type | 3-phase stepper motor |
| Network type | DC |
| Winding type | Medium speed of rotation and medium torque |
| Feedback type | Index pulse |
| Gear box type | Without |
| Protection type | Short circuit of the output voltage Overload of output voltage Safe torque off |
| Type of cooling | Natural convection |
| Range of product | Lexium integrated drive |
| Input (output type) | 4 signals (each be used as input or output) |
| Product or component type | Motion integrated drive |
| Supply voltage limits | 18...40 V |
| Discrete output voltage | 23...25 V |
All specifications
| Parameter | Value |
|---|---|
| Supply voltage | 36 V 24 V |
| Voltage state 0 guaranteed | -3...4.5 V |
| Voltage state 1 guaranteed | 15...30 V |
| Current consumption | 3500 mA maximum |
| Discrete input current | 10 mA at 24 V on/STO_A safety input 3 mA at 24 V on/STO_B safety input 2 mA at 24 V 24 V signal interface |
| Maximum switching current | 100 mA per output 200 mA total |
| Number of motor poles | 6 |
| Phases | Single phase |
| IP degree of protection | IP41 shaft bushing: conforming to EN/IEC 60034-5 IP54 total except shaft bushing: conforming to EN/IEC 60034-5 |
| Communication interface | Profibus DP, Integrated |
| Mounting support | Flange |
| Mounting holes diameter | 0.2 in (5.2 mm) |
| Number of mounting holes | 4 |
| Circle diameter of the mounting holes | 2.6 in (66.6 mm) |
| Electrical connection | Printed circuit board connector |
| Shock resistance | 150 m/s² 1000 shocks EN/IEC 60068-2-29 |
| Relative humidity | 15...85 % without condensation |
| Operating altitude | <= 3280.84 ft (1000 m) without derating |
| Vibration resistance | 20 m/s² 10...500 Hz) 10 cycles EN/IEC 60068-2-6 |
| Centring collar depth | 0.06 in (1.6 mm) |
| Standards | EN 61800-3:2001, second environment EN/IEC 50178 EN 61800-3 : 2001-02 IEC 60072-1 IEC 61800-3, Ed 2 EN 50347 EN/IEC 61800-3 |
| Length | 5.5 in (138.9 mm) |
| Marking | CE |
| Category | US1PC5618288 |
| Shaft end | Untapped |
| Second shaft | Without second shaft end |
| Shaft length | 0.8 in (21 mm) |
| Holding brake | Without |
| Nominal speed | 200 rpm 24 V 500 rpm 36 V |
| Rotor inertia | 0.38 kg.cm² |
| Accuracy error | +/- 6 arc min |
| Holding torque | 15.05 lbf.in (1.7 N.m) |
| Nominal torque | 13.3 lbf.in (1.5 N.m) |
| Shaft diameter | 0.3 in (8 mm) |
| Device short name | ILS |
| Motor flange size | 2.2 in (57 mm) |
| Peak stall torque | 13.3 lbf.in (1.5 N.m) |
| Transmission rate | 9.6, 19.2, 45.45, 93.75, 187.5, 500, 1500, 3000, 6000 and 12000 kbauds |
| Service life in hours | 20000 h bearing |
| Associated fuse rating | 10 A |
| Maximum axial force fa | 100 N tensile force) 8.4 N force pressure) |
| Number of motor stacks | 3 |
| Continuous stall torque | 13.3 lbf.in (1.5 N.m) |
| Maximum radial force fr | 50 N |
| Centring collar diameter | 1.5 in (38.1 mm) |
| Maximum mechanical speed | 3000 rpm |
| Speed feedback resolution | 20000 points/turn |
| Ambient air temperature for storage | -13...158 °F (-25...70 °C) |
| Ambient air temperature for operation | 122...149 °F (50...65 °C) (with power derating of 2 % per °C) 32...122 °F (0...50 °C) (without derating) |
| Permissible ambient air temperature around the device | 221 °F (105 °C) power amplifier 230 °F (110 °C) motor |
