Overview
The 6-pole motor delivers a holding torque of 1.5 N·m (13.3 lbf·in) with a rotor inertia of 0.38 kg·cm². Positioning accuracy is rated at ±6 arc minutes, suitable for pick-and-place and indexing applications that do not require servo-grade precision. Natural convection cooling keeps the package simple — no fan, no external heatsink required within the rated duty.
Applications
Lexium integrated drives of this class are specified in packaging, labeling, and assembly machinery where a compact, single-cable motion axis is needed. Typical roles include conveyor diverters, rotary indexing tables, and small pick-and-place cells that run on Profibus DP networks. The IP41 rating limits it to clean, dry cabinet environments — not washdown or dust-laden floors.

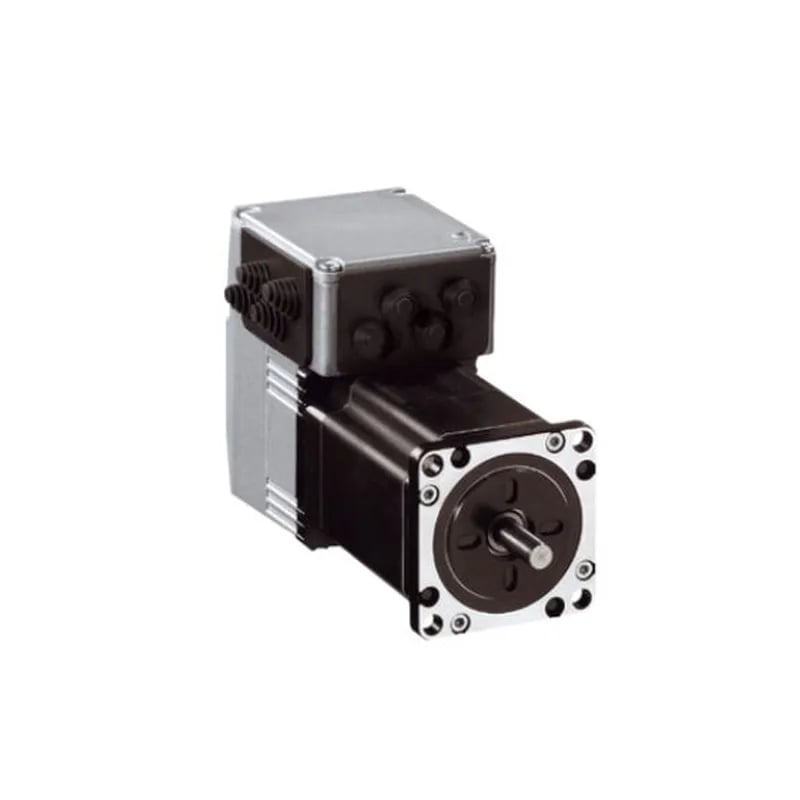

Within Schneider's Lexium ILS family, the ILS1B573PC1A0 sits as a medium-speed, medium-torque variant with Profibus DP connectivity. It targets machine builders who standardize on Profibus DP and need a single-part-number motion axis rather than assembling a separate motor, drive, and cable set. The 24 V DC supply keeps it compatible with standard control voltages found in most OEM panels.
Pricing & sourcing
The ILS1B573PC1A0 is a current-production integrated drive. Sourcing is normally to order; confirm lead time and minimum order on the quote.
