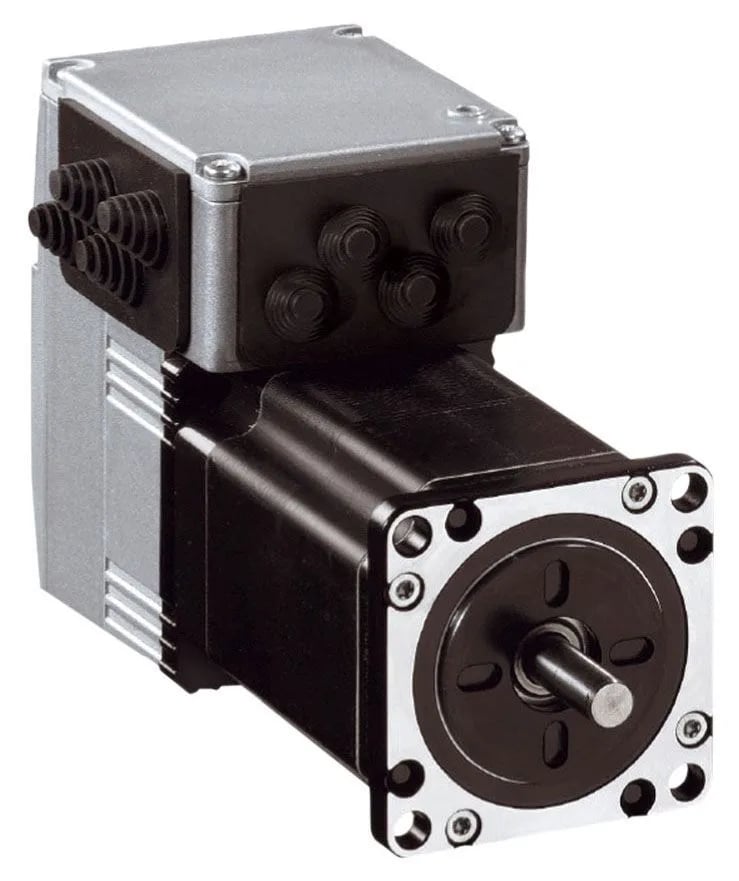

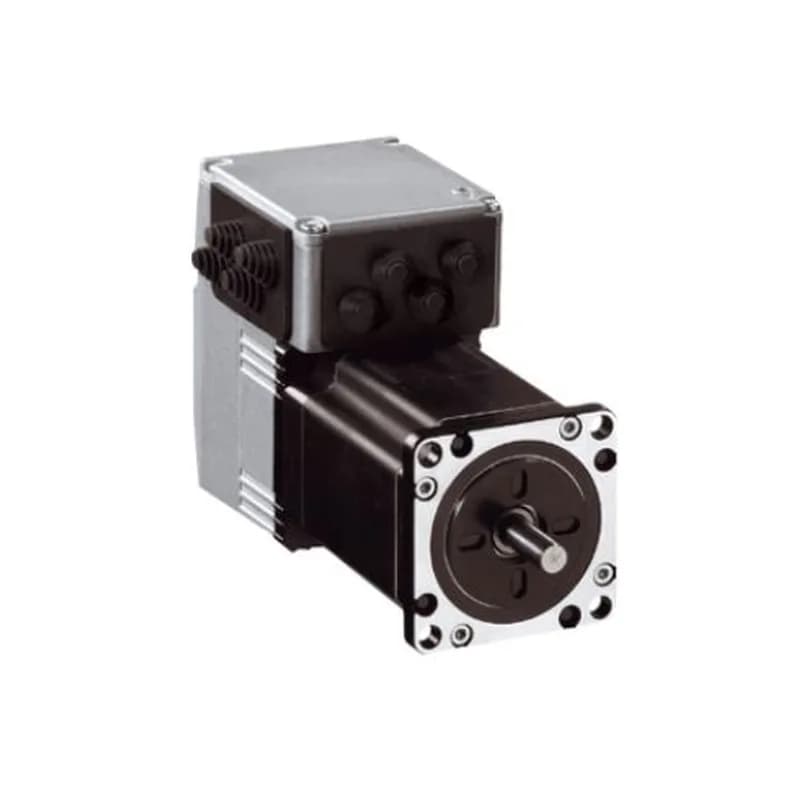

Schneider Electric ILS1F571PC1A0

Schneider ILS1F571PC1A0 Lexium Integrated Stepper Drive, 0.5

MPNILS1F571PC1A0
Active

Schneider ILS1F571PC1A0 Lexium Integrated Drive, 3-phase stepper motor, single-phase supply, 0.51 Nm holding torque, 57 mm flange.

$1,542.00 – $1,805.00Ref. price · indicative, final on quote
Schneider Electric ILS1F571PC1A0 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

ILS1F571PC1A0 key specifications
ParameterValue
Motor type3-phase stepper motor
Network typeDC
Winding typeMedium speed of rotation and medium torque
Feedback typeIndex pulse
Gear box typeWithout
Protection typeSafe torque off Overload of output voltage Short circuit of the output voltage
Type of coolingNatural convection
Range of productLexium integrated drive
Input (output type)4 signals (each be used as input or output)
Product or component typeMotion integrated drive
Supply voltage limits18...40 V
Discrete output voltage23...25 V

All specifications

ILS1F571PC1A0 additional specifications
ParameterValue
Supply voltage24 V 36 V
Voltage state 0 guaranteed-3...4.5 V
Voltage state 1 guaranteed15...30 V
Current consumption3500 mA maximum
Discrete input current10 mA at 24 V on/STO_A safety input 3 mA at 24 V on/STO_B safety input 2 mA at 24 V 24 V signal interface
Maximum switching current100 mA per output 200 mA total
Number of motor poles6
PhasesSingle phase
IP degree of protectionIP41 shaft bushing: conforming to EN/IEC 60034-5 IP54 total except shaft bushing: conforming to EN/IEC 60034-5
Communication interfaceCANopen DS301, Integrated
Mounting supportFlange
Mounting holes diameter0.2 in (5.2 mm)
Number of mounting holes4
Circle diameter of the mounting holes2.6 in (66.6 mm)
Electrical connectionIndustrial connector
Shock resistance150 m/s² 1000 shocks EN/IEC 60068-2-29
Relative humidity15...85 % without condensation
Operating altitude<= 3280.84 ft (1000 m) without derating
Vibration resistance20 m/s² 10...500 Hz) 10 cycles EN/IEC 60068-2-6
Centring collar depth0.06 in (1.6 mm)
StandardsIEC 61800-3, Ed 2 EN/IEC 50178 EN 50347 EN 61800-3:2001, second environment EN 61800-3 : 2001-02 IEC 60072-1 EN/IEC 61800-3
Length4.01 in (101.9 mm)
MarkingCE
CategoryUS1PC5618288
Shaft endUntapped
Second shaftWithout second shaft end
Shaft length0.8 in (21 mm)
Holding brakeWithout
Nominal speed1000 rpm 36 V 500 rpm 24 V
Rotor inertia0.1 kg.cm²
Accuracy error+/- 6 arc min
Holding torque4.51 lbf.in (0.51 N.m)
Nominal torque3.98 lbf.in (0.45 N.m)
Shaft diameter0.25 in (6.35 mm)
Device short nameILS
Motor flange size2.2 in (57 mm)
Peak stall torque3.98 lbf.in (0.45 N.m)
Transmission rate50, 100, 125, 250, 500, 800 and 1000 kbauds
Service life in hours20000 h bearing
Associated fuse rating10 A
Maximum axial force fa100 N tensile force) 8.4 N force pressure)
Number of motor stacks1
Continuous stall torque3.98 lbf.in (0.45 N.m)
Maximum radial force fr24 N
Centring collar diameter1.5 in (38.1 mm)
Maximum mechanical speed3000 rpm
Speed feedback resolution20000 points/turn
Ambient air temperature for storage-13...158 °F (-25...70 °C)
Ambient air temperature for operation122...149 °F (50...65 °C) (with power derating of 2 % per °C) 32...122 °F (0...50 °C) (without derating)
Permissible ambient air temperature around the device221 °F (105 °C) power amplifier 230 °F (110 °C) motor

Product details

The ILS1F571PC1A0 is a Lexium integrated stepper drive — motor, drive, and feedback in one 57 mm flange package. Single-phase AC input (Phase: Single phase), DC network onboard, delivering 0.51 Nm holding torque at standstill and 0.45 Nm nominal. Speed tops at 1000 rpm at 36 V or 500 rpm at 24 V. Feedback is via index pulse only — no absolute encoder, so position is open-loop unless external encoder added. Protection includes safe torque off, output overload, and short circuit. Natural convection cooling keeps the enclosure simple.

Mounts via flange; 4.01 in (101.9 mm) overall length. Natural convection cooling means no fan filter to maintain. Operating altitude to 1000 m without derating, vibration 20 m/s², shock 150 m/s².

Frequently asked questions

What is the ILS1F571PC1A0's input phase and electrical network?

It is listed as Single phase input with a DC network. The integrated drive converts single-phase AC to the DC bus for the stepping motor.

What compliance documentation does the ILS1F571PC1A0 carry?

Marked CE and complies with IEC 61800-3, EN/IEC 50178, EN 50347, and related second-environment EMC standards.

What is the overall length of the ILS1F571PC1A0?

4.01 inches (101.9 mm) from flange to rear of the housing.
