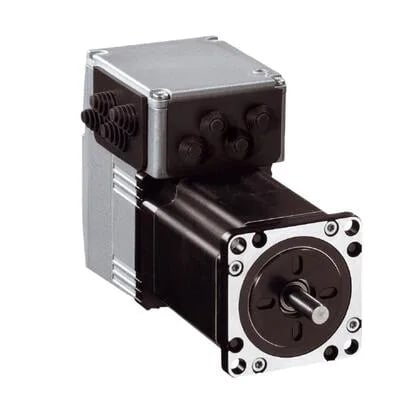

Schneider Electric ILS1F573PB1A0

Schneider ILS1F573PB1A0 Lexium integrated drive, 1.5 N.m, 24 V

MPNILS1F573PB1A0
Active

Schneider ILS1F573PB1A0 Integrated Drives Stepper Motor.

$1,090.00 – $1,624.00Ref. price · indicative, final on quote
Schneider Electric ILS1F573PB1A0 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

ILS1F573PB1A0 key specifications
ParameterValue
Motor type3-phase stepper motor
Network typeDC
Winding typeMedium speed of rotation and medium torque
Feedback typeIndex pulse
Gear box typeWithout
Protection typeShort circuit of the output voltage Safe torque off Overload of output voltage
Type of coolingNatural convection
Range of productLexium integrated drive
Input (output type)4 signals (each be used as input or output)
Product or component typeMotion integrated drive
Supply voltage limits18...40 V
Discrete output voltage23...25 V

All specifications

ILS1F573PB1A0 additional specifications
ParameterValue
Supply voltage24 V 36 V
Voltage state 0 guaranteed-3...4.5 V
Voltage state 1 guaranteed15...30 V
Current consumption3500 mA maximum
Discrete input current10 mA at 24 V on/STO_A safety input 3 mA at 24 V on/STO_B safety input 2 mA at 24 V 24 V signal interface
Maximum switching current100 mA per output 200 mA total
Number of motor poles6
PhasesSingle phase
IP degree of protectionIP41 shaft bushing: conforming to IEC 60034-5 IP54 total except shaft bushing: conforming to IEC 60034-5
Communication interfaceCANopen DS301, Integrated
Mounting supportFlange
Mounting holes diameter0.2 in (5.2 mm)
Number of mounting holes4
Circle diameter of the mounting holes2.6 in (66.6 mm)
Electrical connectionPrinted circuit board connector
Shock resistance150 m/s² 1000 shocks IEC 60068-2-29
Relative humidity15...85 % without condensation
Operating altitude<= 3280.84 ft (1000 m) without derating
Vibration resistance20 m/s² 10...500 Hz) 10 cycles IEC 60068-2-6
Centring collar depth0.06 in (1.6 mm)
StandardsIEC 60072-1 EN 61800-3 : 2001-02 IEC 50347 IEC 61800-3, Ed 2 IEC 50178 EN 61800-3:2001, second environment IEC 61800-3
Length5.5 in (138.9 mm)
MarkingCE
CategoryUS1PC5618288
Shaft endUntapped
Second shaftWithout second shaft end
Shaft length0.8 in (21 mm)
Holding brakeWithout
Nominal speed200 rpm 24 V 500 rpm 36 V
Rotor inertia0.38 kg.cm²
Accuracy error+/- 6 arc min
Holding torque15.05 lbf.in (1.7 N.m)
Nominal torque13.3 lbf.in (1.5 N.m)
Shaft diameter0.3 in (8 mm)
Device short nameILS
Motor flange size2.2 in (57 mm)
Peak stall torque13.3 lbf.in (1.5 N.m)
Transmission rate50, 100, 125, 250, 500, 800 and 1000 kbauds
Service life in hours20000 h bearing
Associated fuse rating10 A
Maximum axial force fa100 N tensile force) 8.4 N force pressure)
Number of motor stacks3
Continuous stall torque13.3 lbf.in (1.5 N.m)
Maximum radial force fr50 N
Centring collar diameter1.5 in (38.1 mm)
Maximum mechanical speed3000 rpm
Speed feedback resolution20000 points/turn
Ambient air temperature for storage-13...158 °F (-25...70 °C)
Ambient air temperature for operation122...149 °F (50...65 °C) (with power derating of 2 % per °C) 32...122 °F (0...50 °C) (without derating)
Permissible ambient air temperature around the device221 °F (105 °C) power amplifier 230 °F (110 °C) motor

Product details

Overview

The ILS1F573PB1A0 is a Schneider Lexium integrated drive combining a 3-phase stepper motor and drive electronics in one package, rated for 1.5 N.m (13.3 lbf.in) of holding torque on a 24 V DC supply. It uses a 6-pole motor construction with a 20000 points/turn resolution index pulse feedback, and communicates over CANopen DS301. Sealed to IP41 with natural convection cooling, it mounts via flange and accepts a single-phase supply. The unit carries CE marking and complies with IEC 60068-2-29 for shock at 150 m/s² over 1000 shocks.

Selection vs ILS1U853PB1A0

The ILS1F573PB1A0 delivers 1.5 N.m torque on 24 V supply. Its speed range is 200 rpm at 24 V and 500 rpm at 36 V.

The ILS1F573PB1A0 is an active catalog item in the Lexium integrated drive range. Standard lead time is confirmed via RFQ; no end-of-life notice is published. Compliance documentation includes CE marking and IEC 60068-2-29 shock test data.
