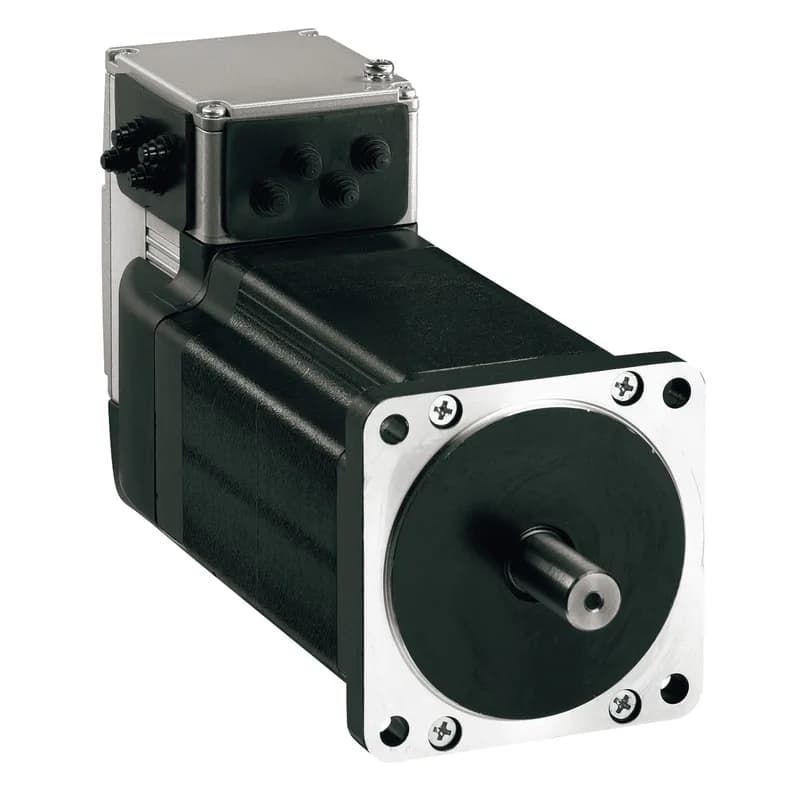

Schneider Electric ILS1F852PC1A0

Schneider ILS1F852PC1A0 Lexium Integrated Stepper Motor, 24-36 V DC, CANopen

MPNILS1F852PC1A0
Obsolete

Schneider ILS1F852PC1A0 Telemecanique Proximity Sensor — now discontinued. Supplied from remaining channel stock; full specifications, lifecycle and same-series options are below.

$2,252.00 – $3,285.00Ref. price · indicative, final on quote
Schneider Electric ILS1F852PC1A0 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

ILS1F852PC1A0 key specifications
ParameterValue
Motor type3-phase stepper motor
Network typeDC
Winding typeMedium speed of rotation and medium torque
Feedback typeIndex pulse
Gear box typeWithout
Protection typeSafe torque off Short circuit of the output voltage Overload of output voltage
Type of coolingNatural convection
Range of productLexium integrated drive
Input (output type)4 signals (each be used as input or output)
Product or component typeMotion integrated drive
Supply voltage limits18...40 V
Discrete output voltage23...25 V

All specifications

ILS1F852PC1A0 additional specifications
ParameterValue
Supply voltage36 V 24 V
Voltage state 0 guaranteed-3...4.5 V
Voltage state 1 guaranteed15...30 V
Current consumption5000 mA maximum
Discrete input current10 mA at 24 V on/STO_A safety input 3 mA at 24 V on/STO_B safety input 2 mA at 24 V 24 V signal interface
Maximum switching current100 mA per output 200 mA total
Number of motor poles6
PhasesSingle phase
IP degree of protectionIP41 shaft bushing: conforming to EN/IEC 60034-5 IP54 total except shaft bushing: conforming to EN/IEC 60034-5
Communication interfaceCANopen DS301, Integrated
Mounting supportFlange 85 mm
Mounting holes diameter0.3 in (6.5 mm)
Number of mounting holes4
Circle diameter of the mounting holes3.9 in (99 mm)
Electrical connectionIndustrial connector
Shock resistance150 m/s² 1000 shocks EN/IEC 60068-2-29
Relative humidity15...85 % without condensation
Operating altitude<= 3280.84 ft (1000 m) without derating
Vibration resistance20 m/s² 10...500 Hz) 10 cycles EN/IEC 60068-2-6
Centring collar depth0.08 in (2 mm)
StandardsEN 50347 EN/IEC 50178 EN 61800-3:2001, second environment EN 61800-3 : 2001-02 IEC 60072-1 IEC 61800-3, Ed 2 EN/IEC 61800-3
Length6.7 in (170.6 mm)
MarkingCE
CategoryUS1PC5618288
Shaft endUntapped
Second shaftWithout second shaft end
Shaft length1.2 in (30 mm)
Holding brakeWithout
Nominal speed100 rpm 24 V 200 rpm 36 V
Rotor inertia2.2 kg.cm²
Accuracy error+/- 6 arc min
Holding torque35.4 lbf.in (4 N.m)
Nominal torque35.4 lbf.in (4 N.m)
Shaft diameter0.5 in (12 mm)
Device short nameILS
Motor flange size3.3 in (85 mm)
Peak stall torque35.4 lbf.in (4 N.m)
Transmission rate50, 100, 125, 250, 500, 800 and 1000 kbauds
Service life in hours20000 h bearing
Associated fuse rating10 A
Maximum axial force fa170 N tensile force) 30 N force pressure)
Number of motor stacks2
Continuous stall torque35.4 lbf.in (4 N.m)
Maximum radial force fr100 N
Centring collar diameter2.4 in (60 mm)
Maximum mechanical speed1500 rpm
Speed feedback resolution20000 points/turn
Ambient air temperature for storage-13...158 °F (-25...70 °C)
Ambient air temperature for operation122...149 °F (50...65 °C) (with power derating of 2 % per °C) 32...122 °F (0...50 °C) (without derating)
Permissible ambient air temperature around the device221 °F (105 °C) power amplifier 230 °F (110 °C) motor

Product details

Overview

It is rated for 24-36 V DC supply, carries 6 poles, single-phase winding, and delivers 4 N.m holding torque on an 85 mm flange. The unit is rated IP41 for in-cabinet mounting and withstands 150 m/s² shock per EN/IEC 60068-2-29, making it suitable for high-vibration machine axes.

This integrated drive eliminates the separate motor and drive cabling by embedding the stepper motor, feedback (index pulse), and CANopen interface into one package. The 6-pole single-phase winding is optimized for medium speed and medium torque applications, with a rotor inertia of 2.2 kg.cm² and an accuracy of +/- 6 arc min. The CANopen port supports transmission rates from 50 to 1000 kbauds, configurable for multi-axis coordination. Holding torque is 4 N.m (35.4 lbf.in), and the unit includes safe torque off, short circuit, and overload protection on the output voltage.

Applications

Lexium integrated stepper motors of this class are used in packaging, labeling, pick-and-place, and small assembly machines where space is tight and a separate drive cabinet is undesirable. The CANopen interface allows direct connection to a PLC or motion controller over a fieldbus network.

Within the Lexium integrated drive range, the ILS1F852PC1A0 sits as a medium-torque, single-phase variant with CANopen, aimed at OEMs who need a compact motion axis without a separate drive enclosure. It is specified by machine builders who value the reduced wiring and panel space of an integrated design.

Pricing & sourcing

The ILS1F852PC1A0 is an active Schneider product normally sourced to order; confirm current lead time and minimum order on the quote.
