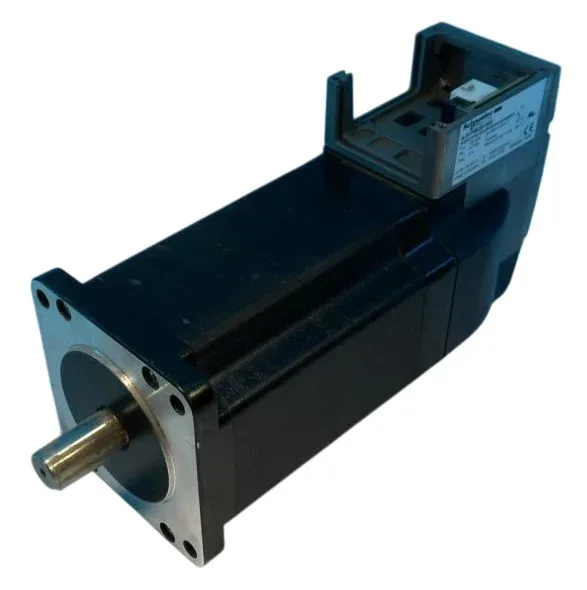

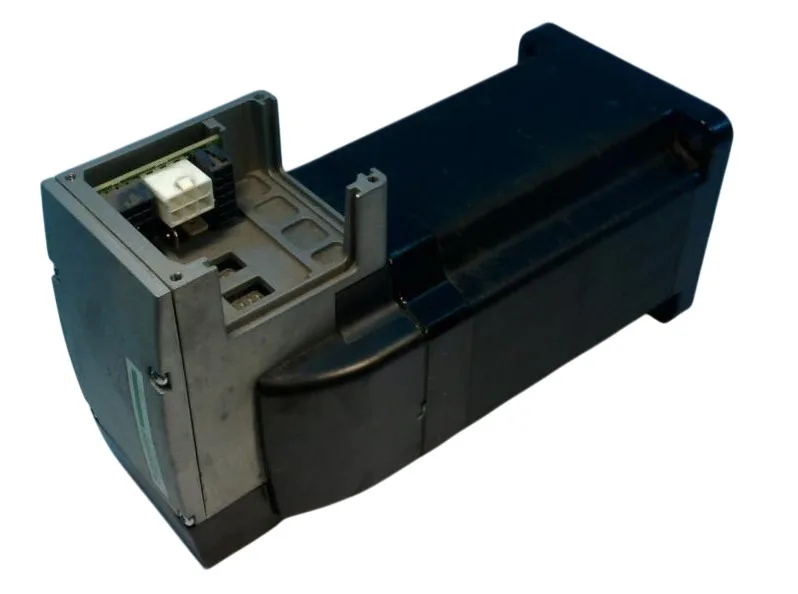

Schneider ILS1F853S1502 3-Phase Motor
MPNILS1F853S1502
Active
ILS1F853S1502 - 3 PHASE by SCHNEIDER ELECTRIC
$1,141.73Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Motor type | 3-phase stepper motor |
| Network type | DC |
| Winding type | Medium speed of rotation and medium torque |
| Feedback type | Index pulse |
| Gear box type | Without |
| Protection type | Overload of output voltage Short circuit of the output voltage Safe torque off |
| Type of cooling | Natural convection |
| Range of product | Lexium integrated drive |
| Input (output type) | 4 signals (each be used as input or output) |
| Product or component type | Motion integrated drive |
| Supply voltage limits | 18...40 V |
| Discrete output voltage | 23...25 V |
All specifications
| Parameter | Value |
|---|---|
| Supply voltage | 24 V 36 V |
| Voltage state 0 guaranteed | -3...4.5 V |
| Voltage state 1 guaranteed | 15...30 V |
| Current consumption | 5000 mA maximum |
| Discrete input current | 10 mA at 24 V on/STO_A for safety input 3 mA at 24 V on/STO_B for safety input 2 mA at 24 V for 24 V signal interface |
| Maximum switching current | 100 mA per output 200 mA total |
| Brake pull-in power | 22 W |
| Number of motor poles | 6 |
| Network number of phases | Single phase |
| IP degree of protection | IP41 shaft bushing: conforming to IEC 60034-5 IP54 total except shaft bushing: conforming to IEC 60034-5 |
| Communication interface | CANopen DS301, integrated |
| Mounting holes diameter | 6.5 mm |
| Number of mounting holes | 4 |
| Circle diameter of the mounting holes | 99 mm |
| Electrical connection | Industrial connector |
| Shock resistance | 150 m/s² 1000 shocks conforming to IEC 60068-2-29 |
| Relative humidity | 15...85 % without condensation |
| Operating altitude | <= 1000 m without derating |
| Vibration resistance | 20 m/s² (f= 10...500 Hz) 10 cycles conforming to IEC 60068-2-6 |
| Centring collar depth | 2 mm |
| Standards | EN 61800-3 : 2001-02 IEC 61800-3 IEC 50178 IEC 61800-3, Ed 2 IEC 50347 IEC 60072-1 EN 61800-3:2001, second environment |
| Length | 247.3 mm |
| Marking | CE |
| Shaft end | Untapped |
| Second shaft | Without second shaft end |
| Shaft length | 30 mm |
| Holding brake | With |
| Nominal speed | 120 rpm at 36 V 60 rpm at 24 V |
| Rotor inertia | 3.5 kg.cm² |
| Accuracy error | +/- 6 arc min |
| Holding torque | 4.5 N.m |
| Nominal torque | 4.5 N.m |
| Shaft diameter | 14 mm |
| Device short name | ILS |
| Motor flange size | 85 mm |
| Peak stall torque | 4.5 N.m |
| Transmission rate | 50, 100, 125, 250, 500, 800 and 1000 kbauds |
| Brake release time | 40 ms |
| Service life in hours | 20000 h bearing |
| Associated fuse rating | 10 A |
| Brake application time | 20 ms |
| Maximum axial force fa | 170 N (tensile force) 30 N (force pressure) |
| Number of motor stacks | 3 |
| Continuous stall torque | 4.5 N.m |
| Maximum radial force fr | 110 N |
| Centring collar diameter | 60 mm |
| Maximum mechanical speed | 1000 rpm |
| Speed feedback resolution | 20000 points/turn |
| Ambient air temperature for storage | -25...70 °C |
| Ambient air temperature for operation | 50...65 °C (with power derating of 2 % per °C) 0...50 °C (without derating) |
| Permissible ambient air temperature around the device | 105 °C power amplifier 110 °C motor |
