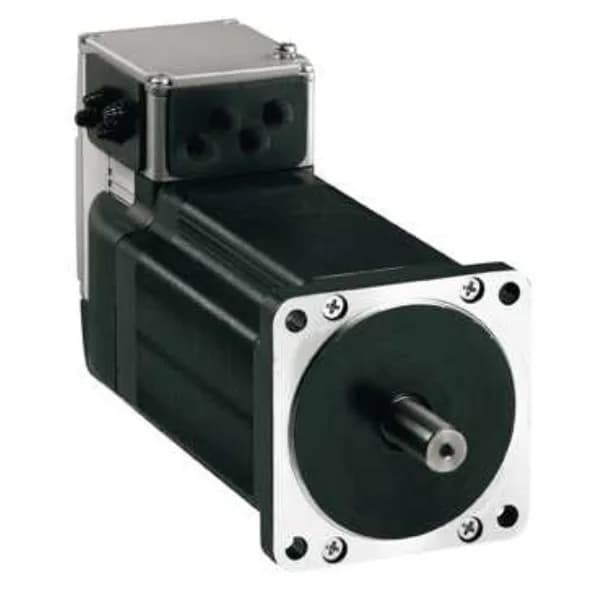

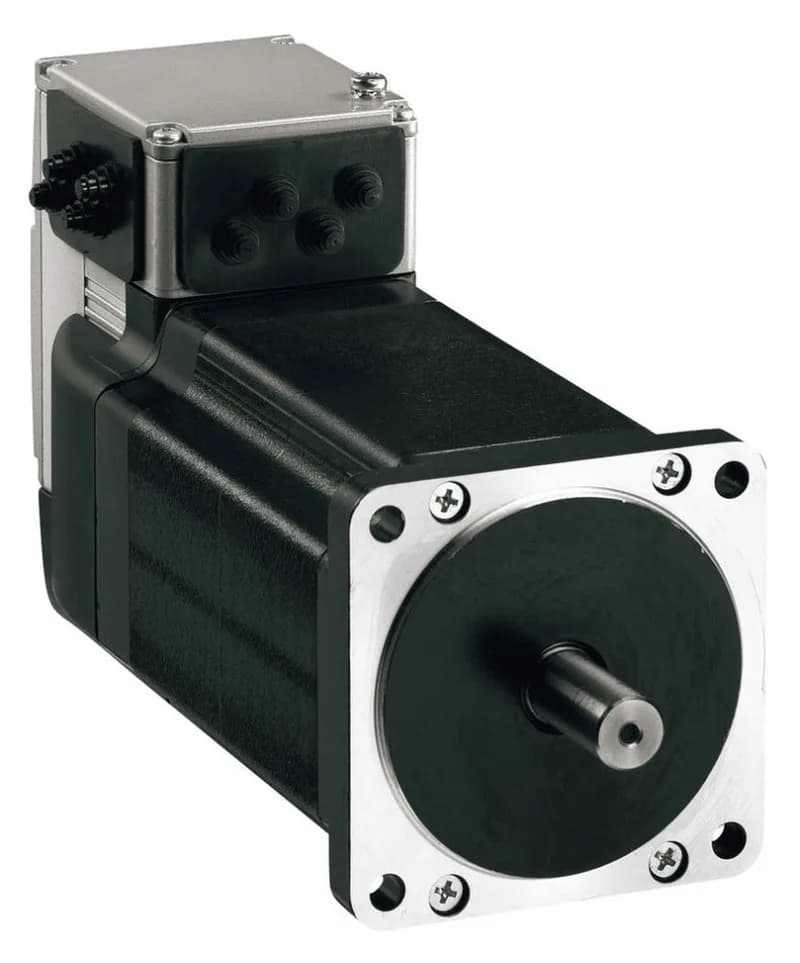

Schneider Electric ILS1V853PB1A0

Schneider ILS1V853PB1A0 Lexium Integrated Drive, 6 Nm

MPNILS1V853PB1A0
Active

Schneider Electric Lexium ILS integrated drive, ILS1V853PB1A0, 3-phase stepper motor with integrated drive, 6 Nm holding torque, 18-40 VDC supply.

$1,021.00 – $2,910.00Ref. price · indicative, final on quote
Schneider Electric ILS1V853PB1A0 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

ILS1V853PB1A0 key specifications
ParameterValue
Motor type3-phase stepper motor
Network typeDC
Winding typeMedium speed of rotation and medium torque
Feedback typeIndex pulse
Gear box typeWithout
Protection typeShort circuit of the output voltage Overload of output voltage Safe torque off
Type of coolingNatural convection
Range of productLexium integrated drive
Input (output type)4 signals (each be used as input or output)
Product or component typeMotion integrated drive
Supply voltage limits18...40 V
Discrete output voltage23...25 V

All specifications

ILS1V853PB1A0 additional specifications
ParameterValue
Supply voltage24 V 36 V
Voltage state 0 guaranteed-3...4.5 V
Voltage state 1 guaranteed15...30 V
Current consumption5000 mA maximum continuous
Discrete input current10 mA at 24 V safety input
Maximum switching current100 mA per output 200 mA total
Number of motor poles6
PhasesSingle phase
IP degree of protectionIP41 shaft bushing: conforming to EN/IEC 60034-5 IP54 total except shaft bushing: conforming to EN/IEC 60034-5
Communication interfacePulse/direction 5 V without RS422, Integrated
Mounting supportFlange
Mounting holes diameter0.3 in (6.5 mm)
Number of mounting holes4
Circle diameter of the mounting holes3.9 in (99 mm)
Electrical connectionPrinted circuit board connector
Shock resistance150 m/s² 1000 shocks EN/IEC 60068-2-29
Relative humidity15...85 % without condensation
Operating altitude<= 3280.84 ft (1000 m) without derating
Vibration resistance20 m/s² 10...500 Hz) 10 cycles EN/IEC 60068-2-6
Centring collar depth0.08 in (2 mm)
StandardsEN 50347 EN/IEC 50178 IEC 61800-3, Ed 2 IEC 60072-1 EN 61800-3 : 2001-02 EN/IEC 61800-3 EN 61800-3:2001, second environment
Length7.9 in (200.6 mm)
MarkingCE
CategoryUS1PC5618288
Shaft endUntapped
Second shaftWithout second shaft end
Shaft length1.2 in (30 mm)
Holding brakeWithout
Nominal speed120 rpm 36 V 60 rpm 24 V
Rotor inertia3.3 kg.cm²
Accuracy error+/- 6 arc min
Holding torque53.1 lbf.in (6 N.m)
Nominal torque53.1 lbf.in (6 N.m)
Shaft diameter0.6 in (14 mm)
Device short nameILS
Motor flange size3.3 in (85 mm)
Peak stall torque53.1 lbf.in (6 N.m)
Service life in hours20000 h bearing
Associated fuse rating10 A
Maximum axial force fa170 N tensile force) 30 N force pressure)
Number of motor stacks3
Continuous stall torque53.1 lbf.in (6 N.m)
Maximum radial force fr110 N
Centring collar diameter2.4 in (60 mm)
Maximum mechanical speed1000 rpm
Speed feedback resolution1.8°, 0.9°, 0.72°, 0.36°, 0.18°, 0.09°, 0.072°, 0.036° 200, 400, 500, 1000, 2000, 4000, 5000, 10000 steps
Ambient air temperature for storage-13...158 °F (-25...70 °C)
Ambient air temperature for operation122...149 °F (50...65 °C) (with power derating of 2 % per °C) 32...122 °F (0...50 °C) (without derating)
Permissible ambient air temperature around the device221 °F (105 °C) power amplifier 230 °F (110 °C) motor

Product details

Schneider's ILS1V853PB1A0 is a Lexium integrated drive – a 3-phase stepper motor with built-in drive electronics. It runs on 18...40 V, draws up to 5000 mA continuous, and delivers 6 N.m holding and nominal torque. Safe Torque Off (STO) is included.

Mounts via the 85 mm flange with a 14 mm diameter, 30 mm long untapped shaft and a PCB connector. Cooling is natural convection; shock and vibration ratings are 150 m/s² per EN/IEC 60068-2-29 and 20 m/s² per EN/IEC 60068-2-6.

No direct pin-compatible alternative in the same frame size is listed. If you need a drop-in substitute, the BOM should match this exact MPN. The integrated drive and 6 Nm torque bracket it against larger Lexium 32 frame sizes, but those would change the mounting footprint and wiring.

Frequently asked questions

What safety features does this drive include?

It includes Safe Torque Off (STO) as well as short-circuit and overload protection on the output voltage.

What compliance standards does the ILS1V853PB1A0 meet?

It is marked CE and complies with EN 50347, EN/IEC 50178, IEC 61800-3 (edition 2), IEC 60072-1, and EN 61800-3:2001-02 for second environment.
