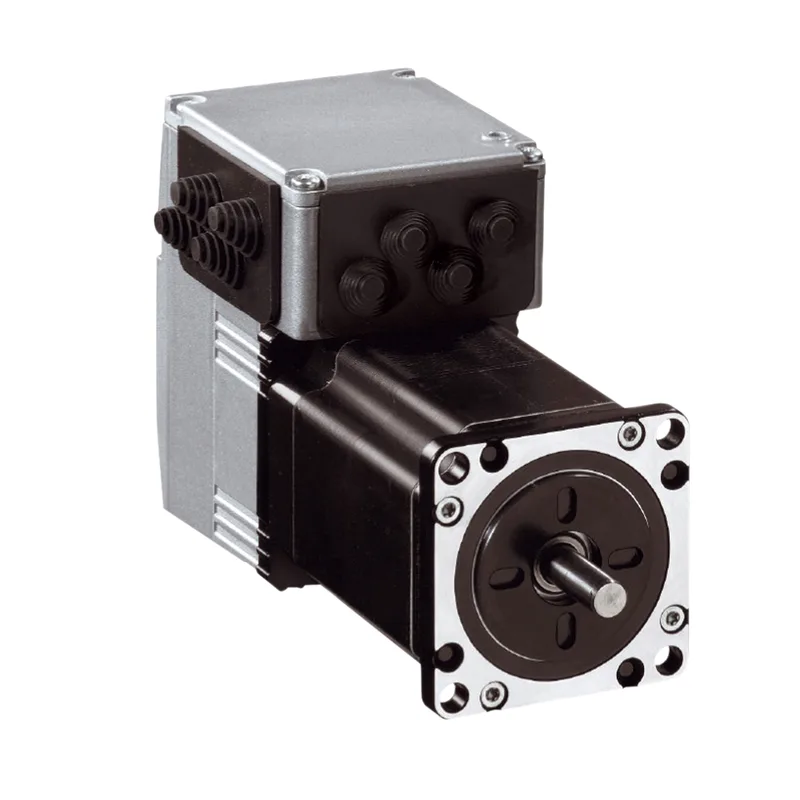

Schneider Electric ILS2T572PB1A0

Schneider ILS2T572PB1A0 Lexium Integrated Drive Stepper Motor

MPNILS2T572PB1A0
Active

Schneider ILS2T572PB1A0 Square D Braking Resistor — now discontinued. Supplied from remaining channel stock; full specifications, lifecycle and same-series options are below.

$1,061.00 – $1,370.00Ref. price · indicative, final on quote
Schneider Electric ILS2T572PB1A0 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

ILS2T572PB1A0 key specifications
ParameterValue
Motor type3-phase stepper motor
Network typeDC
Winding typeMedium speed of rotation and medium torque
Feedback typeIndex pulse
Gear box typeWithout
Protection typeShort circuit of the output voltage Safe torque off Overload of output voltage
Type of coolingNatural convection
Range of productLexium integrated drive
Input (output type)4 signals (each be used as input or output)
Product or component typeMotion integrated drive
Supply voltage limits18...55 V
Discrete output voltage23...25 V

All specifications

ILS2T572PB1A0 additional specifications
ParameterValue
Supply voltage48 V 24 V
Voltage state 0 guaranteed-3...4.5 V
Voltage state 1 guaranteed15...30 V
Current consumption3500 mA maximum continuous
Discrete input current10 mA at 24 V safety input 2 mA at 24 V 24 V signal interface
Maximum switching current100 mA per output 200 mA total
Number of motor poles6
PhasesSingle phase
IP degree of protectionIP41 shaft bushing: conforming to IEC 60034-5 IP54 total except shaft bushing: conforming to IEC 60034-5
Commissioning interfaceRS485 Modbus TCP 9.6, 19.2 and 38.4 kbauds)
Communication interfaceModbus TCP, Integrated
Mounting supportFlange
Mounting holes diameter0.2 in (5.2 mm)
Number of mounting holes4
Circle diameter of the mounting holes2.6 in (66.6 mm)
Electrical connectionPrinted circuit board connector
Shock resistance150 m/s² 1000 shocks IEC 60068-2-29
Relative humidity15...85 % without condensation
Operating altitude<= 3280.84 ft (1000 m) without derating
Vibration resistance20 m/s² 10...500 Hz) 10 cycles IEC 60068-2-6
Centring collar depth0.06 in (1.6 mm)
StandardsIEC 50347 IEC 61800-3, Ed 2 IEC 50178 EN 61800-3:2001, second environment IEC 60072-1 IEC 61800-3 EN 61800-3 : 2001-02
Length4.6 in (115.9 mm)
MarkingCE
CategoryUS1PC5618288
Shaft endUntapped
Second shaftWithout second shaft end
Shaft length0.8 in (21 mm)
Holding brakeWithout
Nominal speed1000 rpm 48 V 500 rpm 24 V
Rotor inertia0.22 kg.cm²
Accuracy error+/- 6 arc min
Holding torque8.0 lbf.in (0.9 N.m)
Nominal torque8.0 lbf.in (0.9 N.m)
Shaft diameter0.25 in (6.35 mm)
Device short nameILS
Motor flange size2.2 in (57 mm)
Peak stall torque8.0 lbf.in (0.9 N.m)
Transmission rate10, 100 Mbits
Service life in hours20000 h bearing
Associated fuse rating16 A
Maximum axial force fa100 N tensile force) 8.4 N force pressure)
Number of motor stacks2
Continuous stall torque8.0 lbf.in (0.9 N.m)
Maximum radial force fr24 N
Centring collar diameter1.5 in (38.1 mm)
Maximum mechanical speed3000 rpm
Speed feedback resolution20000 points/turn
Ambient air temperature for storage-13...158 °F (-25...70 °C)
Ambient air temperature for operation104...131 °F (40...55 °C) (with power derating of 2 % per °C) 32...104 °F (0...40 °C) (without derating)
Permissible ambient air temperature around the device221 °F (105 °C) power amplifier 230 °F (110 °C) motor

Product details

Overview

It operates on a 48 V DC supply, communicates via Modbus TCP and RS-485, and carries a 6-pole motor with a rated current of 0.01 A. The unit is rated IP41 for in-cabinet use and is CE marked to IEC 61800-3.

This integrated drive eliminates the separate motor and drive cabling by embedding the control electronics into the motor housing. The 48 V DC supply powers both the stepper motor and the onboard drive logic, with a rated current draw of 0.01 A. Communication is handled via Modbus TCP on Ethernet and RS-485 at 9.6, 19.2, or 38.4 kbaud, allowing direct connection to a PLC or motion controller without an external drive module. The motor delivers a holding torque of 8.0 lbf.in (0.9 N.m) and an accuracy of +/- 6 arc min, suitable for positioning tasks that do not require a servo's closed-loop precision. Feedback is via an index pulse, and the unit includes protection against short circuit, overload, and safe torque off. The rotor inertia is 0.22 kg.cm², and the motor is rated for a medium speed of rotation and medium torque profile.

Applications

Lexium integrated drives like the ILS2T572PB1A0 are used in compact motion control applications where space is limited and wiring must be minimized. Typical installations include pick-and-place stations, labeling machines, conveyor diverters, and small assembly cells. The Modbus TCP interface integrates directly into Ethernet-based automation architectures without a separate fieldbus gateway.

Pricing & sourcing

The ILS2T572PB1A0 is a current-production Lexium integrated drive, normally sourced to order. Confirm current lead time and minimum order on the quote.
