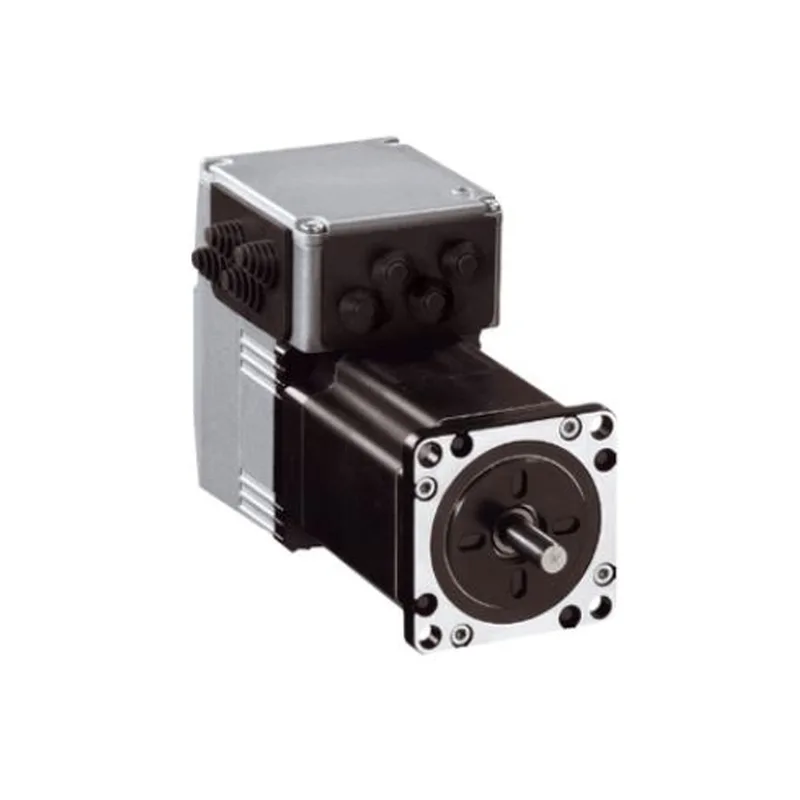

Schneider Electric ILS2T572PC1A0

Schneider ILS2T572PC1A0 Lexium Integrated Drive, 6-pole, 48 V

MPNILS2T572PC1A0
Obsolete

Schneider Lexium ILS2T572PC1A0 integrated stepper drive, order code ILS2T572PC1A0, 6-pole, single-phase, 48 V DC supply, Modbus TCP, IP41, CE marked, flange mounting.

$1,490.00 – $1,621.00Ref. price · indicative, final on quote
Schneider Electric ILS2T572PC1A0 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

ILS2T572PC1A0 key specifications
ParameterValue
Motor type3-phase stepper motor
Network typeDC
Winding typeMedium speed of rotation and medium torque
Feedback typeIndex pulse
Gear box typeWithout
Protection typeOverload of output voltage Safe torque off Short circuit of the output voltage
Type of coolingNatural convection
Range of productLexium integrated drive
Input (output type)4 signals (each be used as input or output)
Product or component typeMotion integrated drive
Supply voltage limits18...55 V
Discrete output voltage23...25 V

All specifications

ILS2T572PC1A0 additional specifications
ParameterValue
Supply voltage48 V 24 V
Voltage state 0 guaranteed-3...4.5 V
Voltage state 1 guaranteed15...30 V
Current consumption3500 mA maximum continuous
Discrete input current10 mA at 24 V safety input 2 mA at 24 V 24 V signal interface
Maximum switching current100 mA per output 200 mA total
Number of motor poles6
PhasesSingle phase
IP degree of protectionIP41 shaft bushing: conforming to EN/IEC 60034-5 IP54 total except shaft bushing: conforming to EN/IEC 60034-5
Commissioning interfaceRS485 Modbus TCP 9.6, 19.2 and 38.4 kbauds)
Communication interfaceModbus TCP, Integrated
Mounting supportFlange
Mounting holes diameter0.2 in (5.2 mm)
Number of mounting holes4
Circle diameter of the mounting holes2.6 in (66.6 mm)
Electrical connectionIndustrial connector
Shock resistance150 m/s² 1000 shocks EN/IEC 60068-2-29
Relative humidity15...85 % without condensation
Operating altitude<= 3280.84 ft (1000 m) without derating
Vibration resistance20 m/s² 10...500 Hz) 10 cycles EN/IEC 60068-2-6
Centring collar depth0.06 in (1.6 mm)
StandardsEN 50347 EN/IEC 61800-3 EN 61800-3 : 2001-02 EN 61800-3:2001, second environment EN/IEC 50178 IEC 60072-1 IEC 61800-3, Ed 2
Length4.6 in (115.9 mm)
MarkingCE
CategoryUS1PC5618288
Shaft endUntapped
Second shaftWithout second shaft end
Shaft length0.8 in (21 mm)
Holding brakeWithout
Nominal speed1000 rpm 48 V 500 rpm 24 V
Rotor inertia0.22 kg.cm²
Accuracy error+/- 6 arc min
Holding torque8.0 lbf.in (0.9 N.m)
Nominal torque8.0 lbf.in (0.9 N.m)
Shaft diameter0.25 in (6.35 mm)
Device short nameILS
Motor flange size2.2 in (57 mm)
Peak stall torque8.0 lbf.in (0.9 N.m)
Transmission rate10, 100 Mbits
Service life in hours20000 h bearing
Associated fuse rating16 A
Maximum axial force fa100 N tensile force) 8.4 N force pressure)
Number of motor stacks2
Continuous stall torque8.0 lbf.in (0.9 N.m)
Maximum radial force fr24 N
Centring collar diameter1.5 in (38.1 mm)
Maximum mechanical speed3000 rpm
Speed feedback resolution20000 points/turn
Ambient air temperature for storage-13...158 °F (-25...70 °C)
Ambient air temperature for operation104...131 °F (40...55 °C) (with power derating of 2 % per °C) 32...104 °F (0...40 °C) (without derating)
Permissible ambient air temperature around the device221 °F (105 °C) power amplifier 230 °F (110 °C) motor

Product details

Overview

The ILS2T572PC1A0 is a Schneider Lexium integrated drive combining a 3-phase stepper motor and drive electronics in one housing, order code ILS2T572PC1A0, rated for 48 V DC single-phase supply with 6 poles and an IP41 enclosure. It carries CE marking and complies with EN 50347, EN/IEC 61800-3, and IEC 60072-1, making it suited for machine builders requiring a compact, networked motion axis.

The ILS2T572PC1A0 integrates a 3-phase stepper motor with a drive controller, communicating over Modbus TCP at 9.6, 19.2, or 38.4 kbaud via RS485. The 6-pole design delivers a holding torque of 0.9 N·m (8.0 lbf·in) and a rotor inertia of 0.22 kg·cm², with a positioning accuracy of ±6 arc minutes. Built-in protection covers overload, short circuit, and safe torque off. The feedback is an index pulse only, so applications requiring absolute position feedback at power-up need an external encoder or a different drive variant.

Applications

This integrated drive is used in compact motion axes for packaging, labelling, pick-and-place, and material handling where space is tight and a separate motor and drive would not fit. The Modbus TCP interface ties into a PLC or motion controller over standard industrial Ethernet.

The ILS2T572PC1A0 is an active product in Schneider's Lexium integrated drive range. No end-of-life notification or last-time-buy window has been announced as of the latest available data. Sourcing is through standard distribution channels; lead times are typically quoted on request.

MPN
ILS2T572PC1A0
