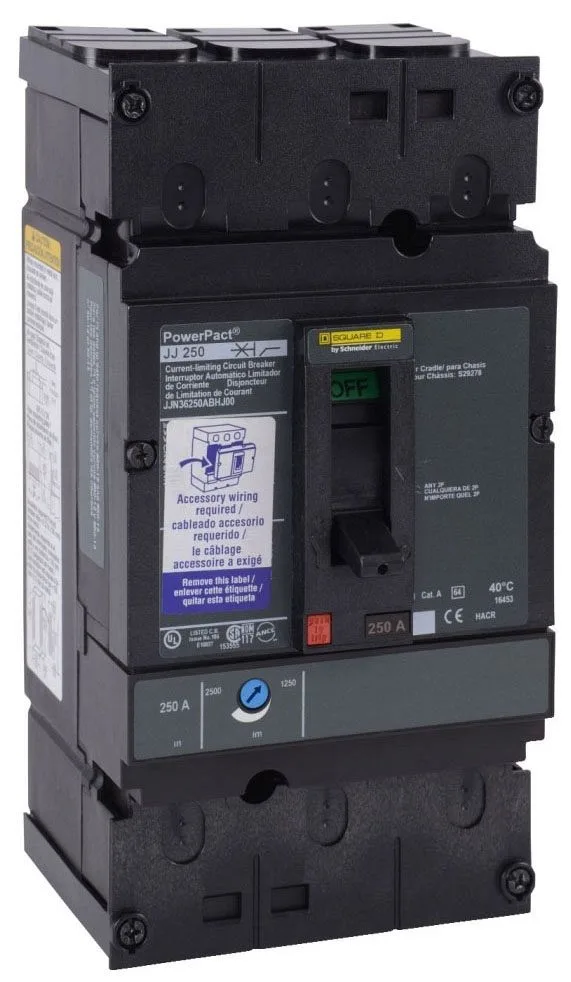

Schneider JJN36250ABHJ00 Molded Case Breaker
MPNJJN36250ABHJ00
Active
MOLDED CASE|SQD JJN36250ABHJ00 MOLDED CASE
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Control type | Toggle |
| Protection type | Overload protection Short-circuit protection |
| Product or component type | Circuit breaker |
| Accessory (separate part type) | Auxiliary switch 24 V AC/DC 2 NO + 2 NC cover frame |
| Voltage | 750 V IEC 60947-2 |
| [Ue] rated operational voltage | 600 V AC 50/60 Hz IEC 60947-3 |
| [Uimp] rated impulse withstand voltage | 8 kV IEC 60947-2 |
| Breaking capacity | 100 kA 240 V AC 50/60 Hz UL 489 65 kA 480 V AC 50/60 Hz UL 489 25 kA 600 V AC 50/60 Hz UL 489 18 kA 250 V DC UL 489 |
| Line rated current | 250 A |
| Magnetic hold current | 1250 A |
| Breaking capacity code | J |
| Continuous current rating | 80 % |
All specifications
| Parameter | Value |
|---|---|
| Magnetic tripping current | 2500 A |
| [Ics] rated service breaking capacity | 65 kA 220/240 V AC 50/60 Hz IEC 60947-2 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 20 kA 250 V DC IEC 60947-2 20 kA 500 V DC IEC 60947-2 |
| Power wire stripping length | 1.0 in (25 mm) |
| Network frequency | 50/60 Hz |
| Poles | 3P |
| Utilisation category | Category A |
| IP degree of protection | Front cover IP40 |
| Communication interface | Modbus |
| Mounting mode | Plug-in base) |
| Mounting support | Base |
| Terminal identifier | AL250JD |
| Electrical connection | Plug-in, line Plug-in, load |
| Pollution degree | 3 |
| Operating altitude | < 6561.68 ft (2000 m) without derating 5000 m with derating |
| Depth | 3.4 in (86 mm) |
| Width | 4.09 in (104 mm) |
| Height | 7.5 in (191 mm) |
| Standards | UL CSA NEMA NOM-003-SCFI-2000 IEC 60947-2 |
| AWG gauge | AWG 3/0...350 kcmil aluminium/copper terminals |
| Quality labels | CE |
| Number of slots | 2 auxiliary switch OF plug-in) 1 alarm switch SD plug-in) 1 overcurrent trip switch SDE plug-in) 1 voltage release MN or MX plug-in) |
| Local signalling | Switched off (OFF) 1 trip indicator green) |
| Tightening torque | 221.3 lbf.in (25 N.m) 0.1...0.3 in² (95...185 mm²) (AWG 3/0...350 kcmil) |
| Trip unit technology | Thermal-magnetic |
| Suitability for isolation | Yes IEC 60947-2 |
| Circuit breaker application | HACR rated |
| Long time pick-up adjustment range | 0.25...1 x In |
| Ambient air temperature for storage | -58...185 °F (-50...85 °C) |
| Ambient air temperature for operation | -13...158 °F (-25...70 °C) |
