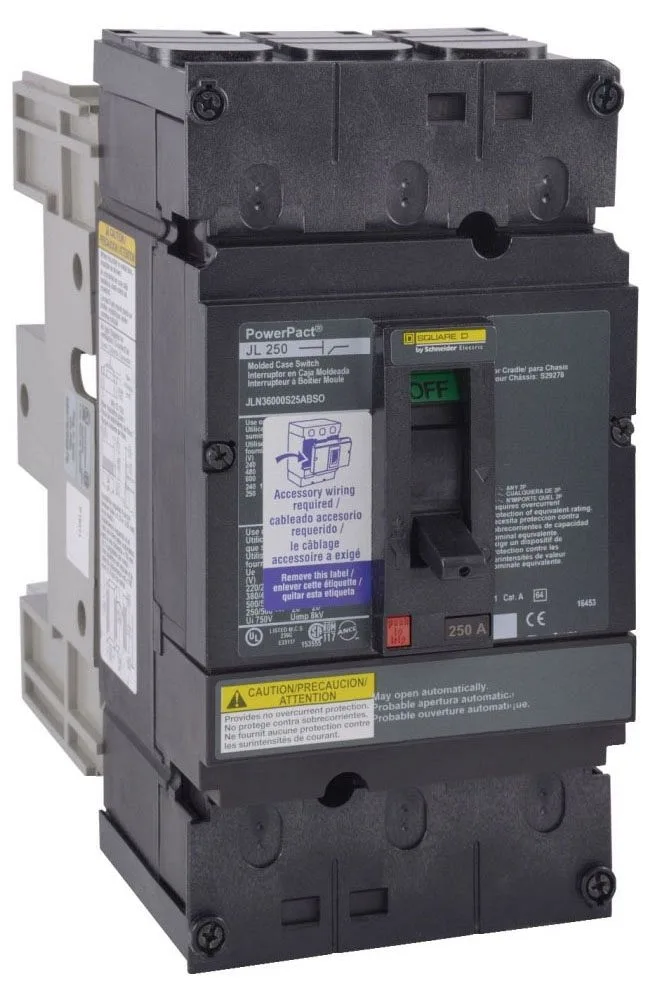

Schneider JLN36000S25AB Molded Case Switch
MPNJLN36000S25AB
Active
Square D JLN36000S25AB Automatic Molded Case Switch 600V 250A|SQUARE D JLN36000S25AB: AUTOMATIC MOLDED CASE SWITCH 600V 250A
$2,175.00 – $3,255.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Range of product | PowerPact J |
| Product or component type | Automatic switch |
| Accessory (separate part type) | Auxiliary switch 2 NO + 2 NC |
| Short-circuit withstand | 125 kA 240 V UL 489 100 kA 480 V UL 489 50 kA 600 V UL 489 20 kA 250 V UL 489 |
| [Ue] rated operational voltage | 600 V AC 250 V DC |
| Line rated current | 250 A |
| Breaking capacity code | L |
| Magnetic tripping current | 3125 A |
| Poles description | 3P |
| Mounting mode | Plug-in |
| Terminal identifier | AL250JD |
| Electrical connection | Plug-in, line Plug-in, load |
All specifications
| Parameter | Value |
|---|---|
| Depth | 5 in (127 mm) |
| Width | 4.12 in (104.65 mm) |
| Height | 7.52 in (191.008 mm) |
| Category | US10DE201120 |
| AWG gauge | x AWG 3/0...350 kcmil ( aluminium/copper ) |
| Tightening torque | 230.1 lbf.in (26 N.m) 0.1...0.3 in² (95...185 mm²) (AWG 3/0...350 kcmil) |
| Trip unit technology | Magnetic |
MPN
JLN36000S25AB
