Schneider Electric K1D011B

Schneider Electric K1D011B

MPNK1D011B
Active

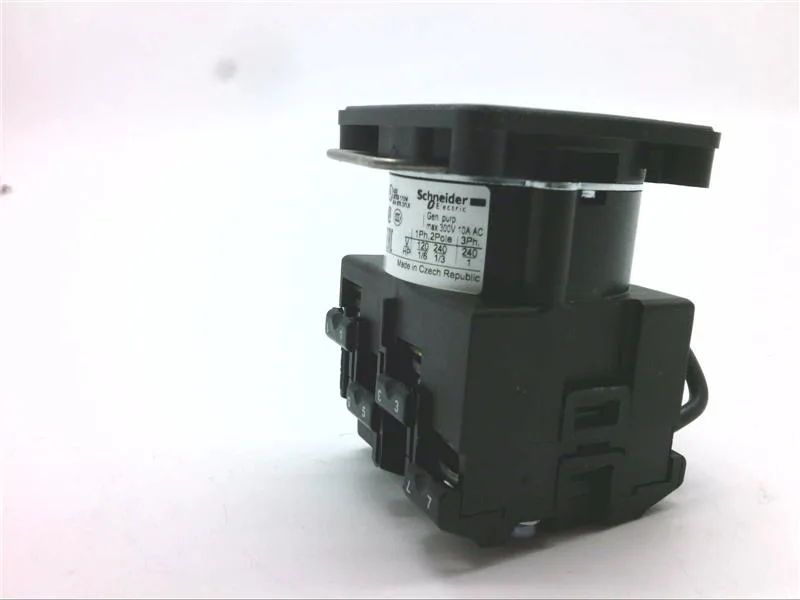

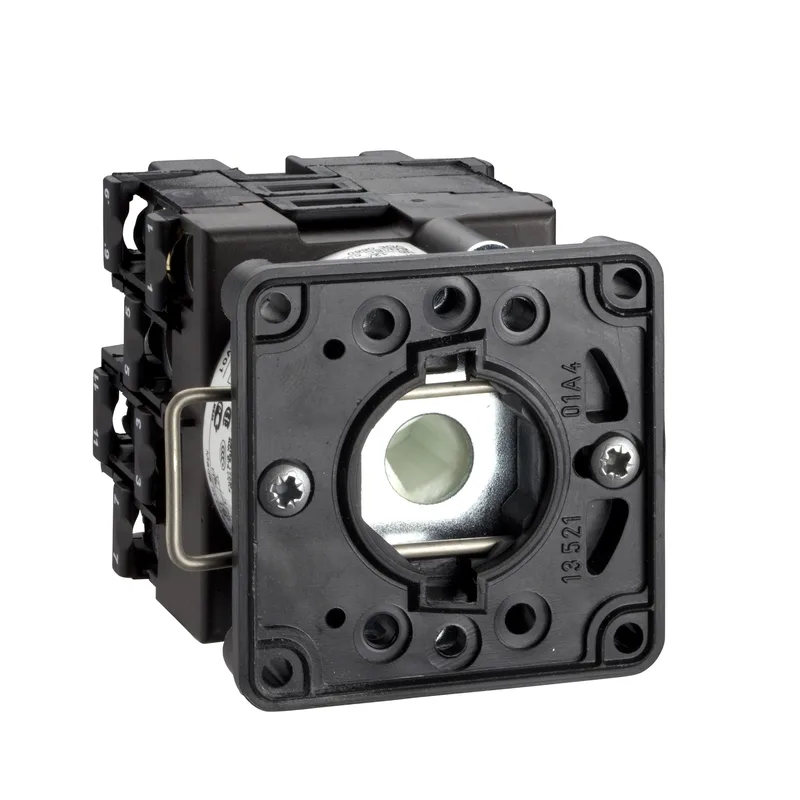

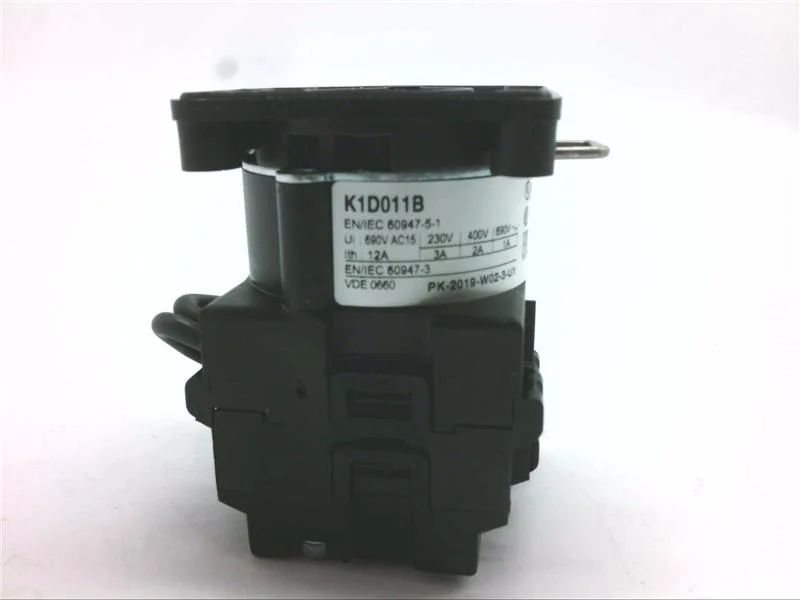

Square D K1D011B Cam Switch Contact Block 600V 12A T-K (Nri)|Square D K1D011B Cam Switch Contact Block 600V 12A T-K (Nri)

$17.78Ref. price · indicative, final on quote
Schneider Electric K1D011B datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

K1D011B key specifications
ParameterValue
Range of productHarmony K
Product or component typeCam switch body
Voltage690 V 3)IEC 60947-1
[Uimp] rated impulse withstand voltage4 kV in isolating function 6 kV IEC 947-1
Short-circuit current10000 A
Short-circuit protection16 A cartridge fuse gG
[Ie] rated operational current AC1.8 A 690 V AC-3 3 phase IEC 947-3 2.8 A 500 V AC-3 3 phase IEC 947-3 2.8 A 690 V AC-23A 3 phase IEC 947-3 3.3 A 400 V AC-3 3 phase IEC 947-3 3.8 A 500 V AC-23A 3 phase IEC 947-3 4.6 A 230 V AC-3 3 phase IEC 947-3 4.8 A 400 V AC-23A 3 phase IEC 947-3 5.6 A 230 V AC-23A 3 phase IEC 947-3 1 A 500 V AC-15 IEC 947-5-1 2 A 400 V AC-15 IEC 947-5-1 3 A 230 V AC-15 IEC 947-5-1
[Ith] conventional free air thermal current12 A
[Ithe] conventional enclosed thermal current10 A
Rated operational power in10500 W AC-21, 500 - 660 V 3 phase IEC 947-3 1100 W AC-3, 230 V 3 phase IEC 947-3 1500 W AC-23A, 230 V 3 phase IEC 947-3 1500 W AC-3, 400 V 1 phase IEC 947-3 1500 W AC-3, 400 V 3 phase IEC 947-3 1500 W AC-3, 500 V 3 phase IEC 947-3 1500 W AC-3, 690 V 3 phase IEC 947-3 2200 W AC-23A, 400 V 3 phase IEC 947-3 2200 W AC-23A, 500 V 3 phase IEC 947-3 2200 W AC-23A, 690 V 3 phase IEC 947-3 4800 W AC-21, 230 V 3 phase IEC 947-3 600 W AC-3, 230 V 1 phase IEC 947-3 8300 W AC-21, 400 V 3 phase IEC 947-3
Mounting locationFront
Electrical connectionCaptive screw clamp terminals flexible 2 x 1.5 mm² Captive screw clamp terminals solid 1 x 2.5 mm²

All specifications

K1D011B additional specifications
ParameterValue
Shock resistance30 gn IEC 68-2-27
Vibration resistance5 gn 10...150 Hz)IEC 68-2-6
Bezel materialPlastic
Electrical durability1000000 cycles AC-15 1000000 cycles AC-21 500000 cycles AC-23 500000 cycles AC-3
Mechanical durability1000000 cycles
StandardsIEC 60947-3 power circuit IEC 60947-5-1 control circuit CENELEC EN 50013
CategoryUS10CS218406
Fixing modeØ 22 mm hole
Off positionWith Off position
Component nameK1
Switching angle30 °
Positive openingWith
Contact operationSlow-break
Number of decimal11
Cam switch functionBCD encoded output switch
PositionsRight: 0°-30°-60°-90°-120°-150°-180°-210°-240°-270°-300°-330°
Overvoltage categoryClass II conforming to IEC 536 Class II conforming to NF C 20-030
Protective treatmentTC
Maximum operating rate2.5 cyc/mn AC-21 2.5 cyc/mn AC-23 2.5 cyc/mn AC-3 8.333 cyc/mn AC-15
Sub-assembly compositionContact blocks + fixing plate
Ambient air temperature for storage-40...158 °F (-40...70 °C)
Ambient air temperature for operation-13...131 °F (-25...55 °C)
MPN
K1D011B
