Schneider Electric KAXZ1S161
MPNKAXZ1S161
Active

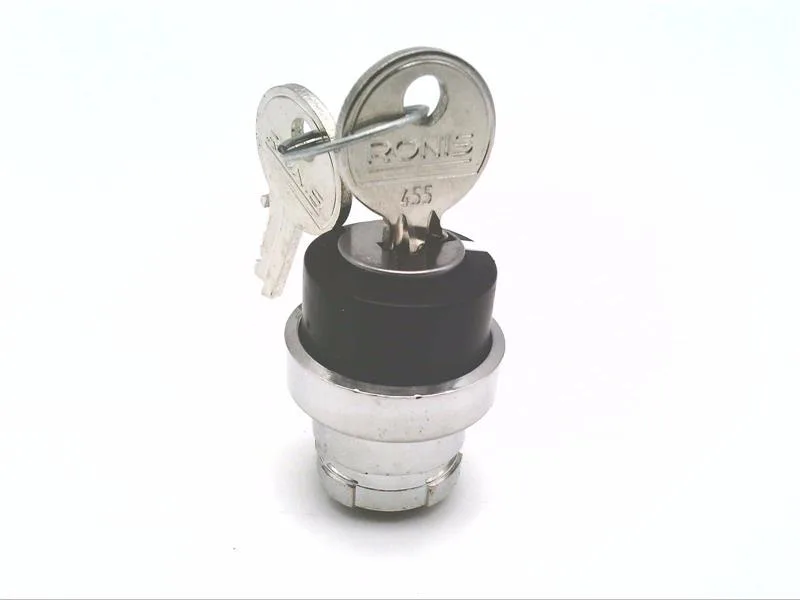

CAM SWITCH KEYSWITCH OPERATOR|CAM SWITCH KEYSWITCH OPERATOR
$8.38Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Range of product | Harmony Series K |
| Type of operator | key key 455 |
| Cam switch head type | With bezel Ø 28.5 mm, metal |
| Product or component type | Cam switch operating head |
| IP degree of protection | IP65 conforming to IEC 529 IP65 conforming to NF C 20-010 |
| Shock resistance | 30 gn IEC 68-2-27 |
| Vibration resistance | 5 gn 10...150 Hz)IEC 68-2-6 |
| CAD overall depth | 0.8 in (21 mm) |
| CAD overall width | 1.1 in (29 mm) |
| CAD overall height | 1.1 in (29 mm) |
| Mechanical durability | 1000000 cycles |
| Category | US10CS121446 |
All specifications
| Parameter | Value |
|---|---|
| Component name | KAX |
| Switching angle | 60 ° |
| Compatibility code | KAX |
| Protective treatment | TC |
| Presentation of legend | With mat black |
| Rotary handle padlocking | Without |
| Ambient air temperature for storage | -40...158 °F (-40...70 °C) |
| Ambient air temperature for operation | -13...131 °F (-25...55 °C) |
MPN
KAXZ1S161
