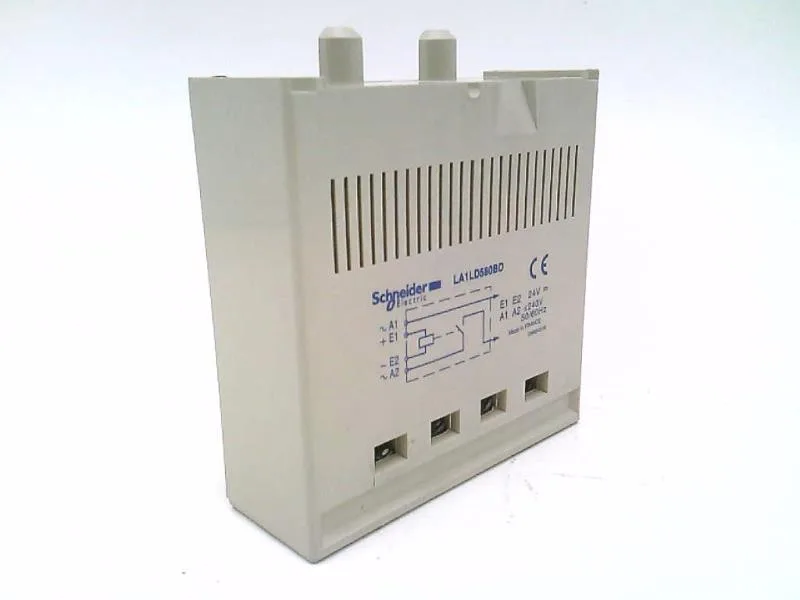

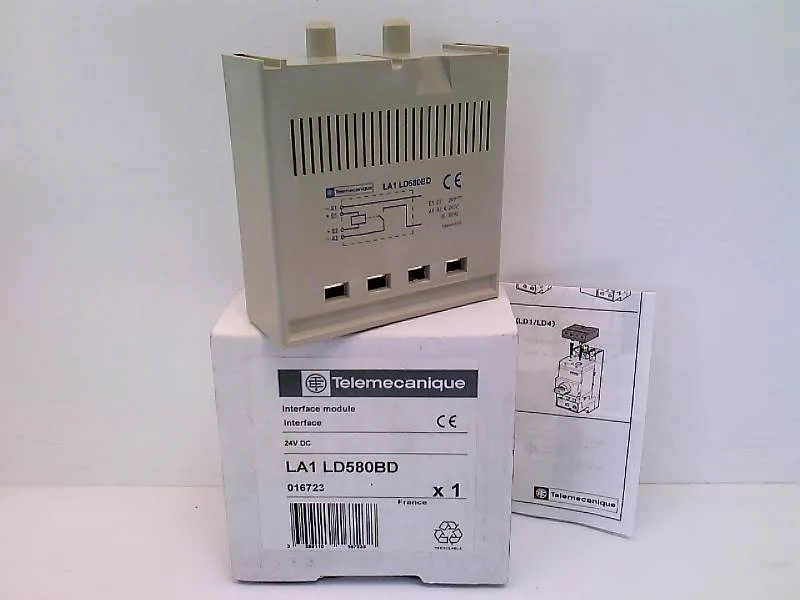

Schneider Electric LA1LD580BD
MPNLA1LD580BD
Obsolete
LA1LD580BD - RELAY OUTPUT by TELEMECANIQUE
$229.18Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Output signal | Relay output |
| Protection type | Overvoltage protection Against reverse polarity |
| Product or component type | Interface module |
| Coil voltage | 24 V DC |
| Control circuit voltage limits | 0.85...1.1 Uc DC |
| [Ue] rated operational voltage | 24...240 V AC 50/60 Hz |
| [Ith] conventional free air thermal current | 63 A |
| IP degree of protection | IP20 B conforming to IEC 60529 |
| Mounting location | On top of the integral unit |
| Connections - terminals | screw clamp terminal 1 0.002 in² (1 mm²) screw clamp terminal 2 0.004 in² (2.5 mm²) |
| Range | TeSys |
| Category | US10I1122384 |
| Device short name | LA1LD |
| Ambient air temperature for storage | -13...158 °F (-25...70 °C) |
| Ambient air temperature for operation | -13...122 °F (-25...50 °C) |
MPN
LA1LD580BD
